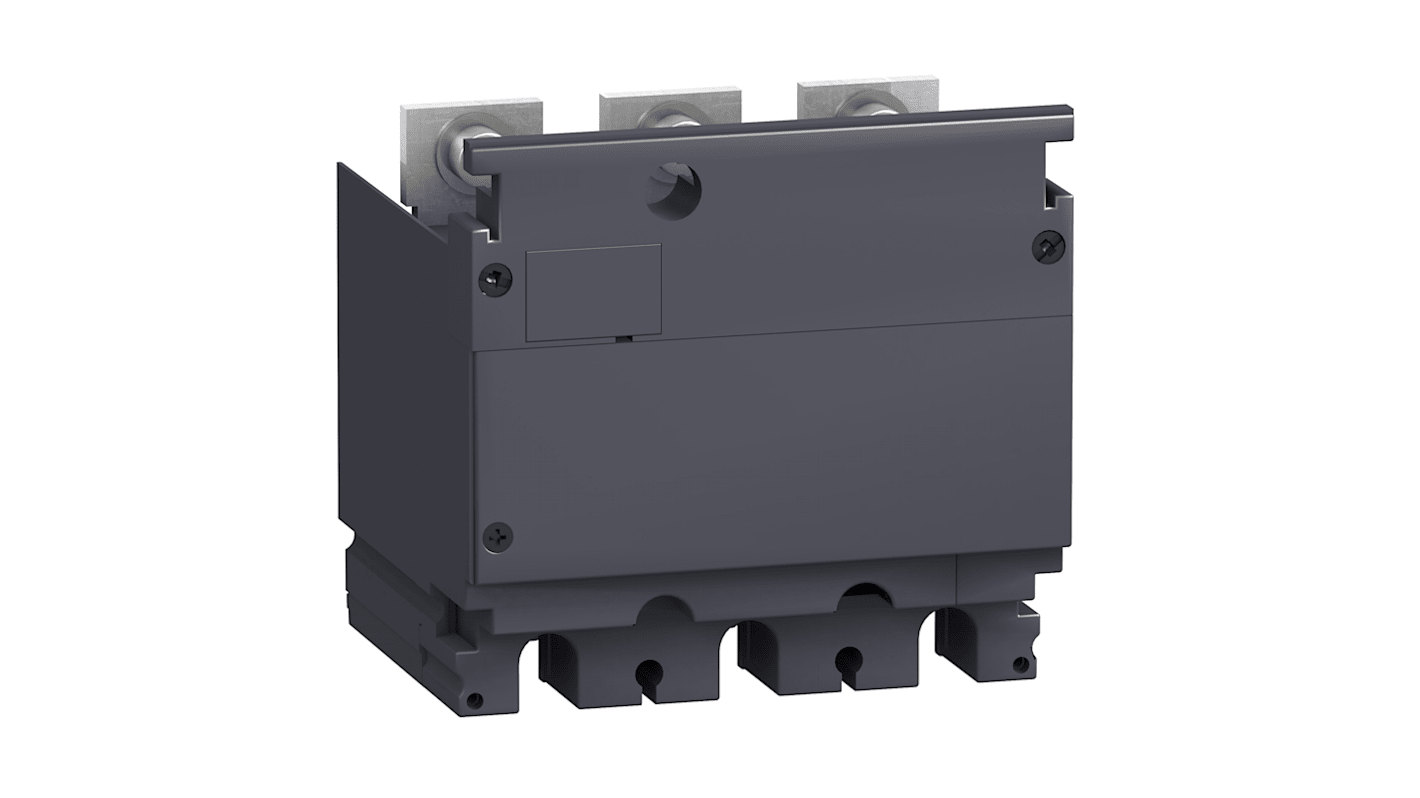

Schneider Electric ComPacT NSX Series Current Transformer 250 A
- RS 제품 번호:
- 219-9384
- 제조사 부품 번호:
- LV431567
- 제조업체:
- Schneider Electric
현재 이용 불가
이 품목의 재입고 여부는 알 수 없으며 제조업체에서 단종되고 있습니다.
Our Better World range features products that make it easy for you to make a greener product choice you can trust.
대체품
이 제품은 현재 공급 불가입니다. 아래 제품들은 당사에서 추천드리는 대체품입니다.
- RS 제품 번호:
- 219-9384
- 제조사 부품 번호:
- LV431567
- 제조업체:
- Schneider Electric
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Schneider Electric | |
| Product Type | Current Transformer | |
| Series | ComPacT NSX | |
| Secondary Current | 5A | |
| Terminal Type | Cable Connection | |
| Primary Current | 250A | |
| Standards/Approvals | IP40, EU RoHS Directive, IK04, IEC 60529, REACH, IEC 62262 | |
| Weight | 4.65kg | |
| Better World Verification | Byggvarubedömningen | |
| Better World Product | Yes | |
| 모두 선택 | ||
|---|---|---|
브랜드 Schneider Electric | ||
Product Type Current Transformer | ||
Series ComPacT NSX | ||
Secondary Current 5A | ||
Terminal Type Cable Connection | ||
Primary Current 250A | ||
Standards/Approvals IP40, EU RoHS Directive, IK04, IEC 60529, REACH, IEC 62262 | ||
Weight 4.65kg | ||
Better World Verification Byggvarubedömningen | ||
Better World Product Yes | ||
- COO (Country of Origin):
- FR
The Schneider Electric additional current transformer module of 250A rating for 3 poles Compact NSX 250 devices. This module enables direct connection of a measurement device such as an ammeter. The module is installed directly on the downstream circuit breaker power terminals. The current at the secondary winding is 5A.
The power consumption accuracy is 5VA (class 3)
There is a class II insulation level between the front face and the power circuits
The protection degree is IP40
