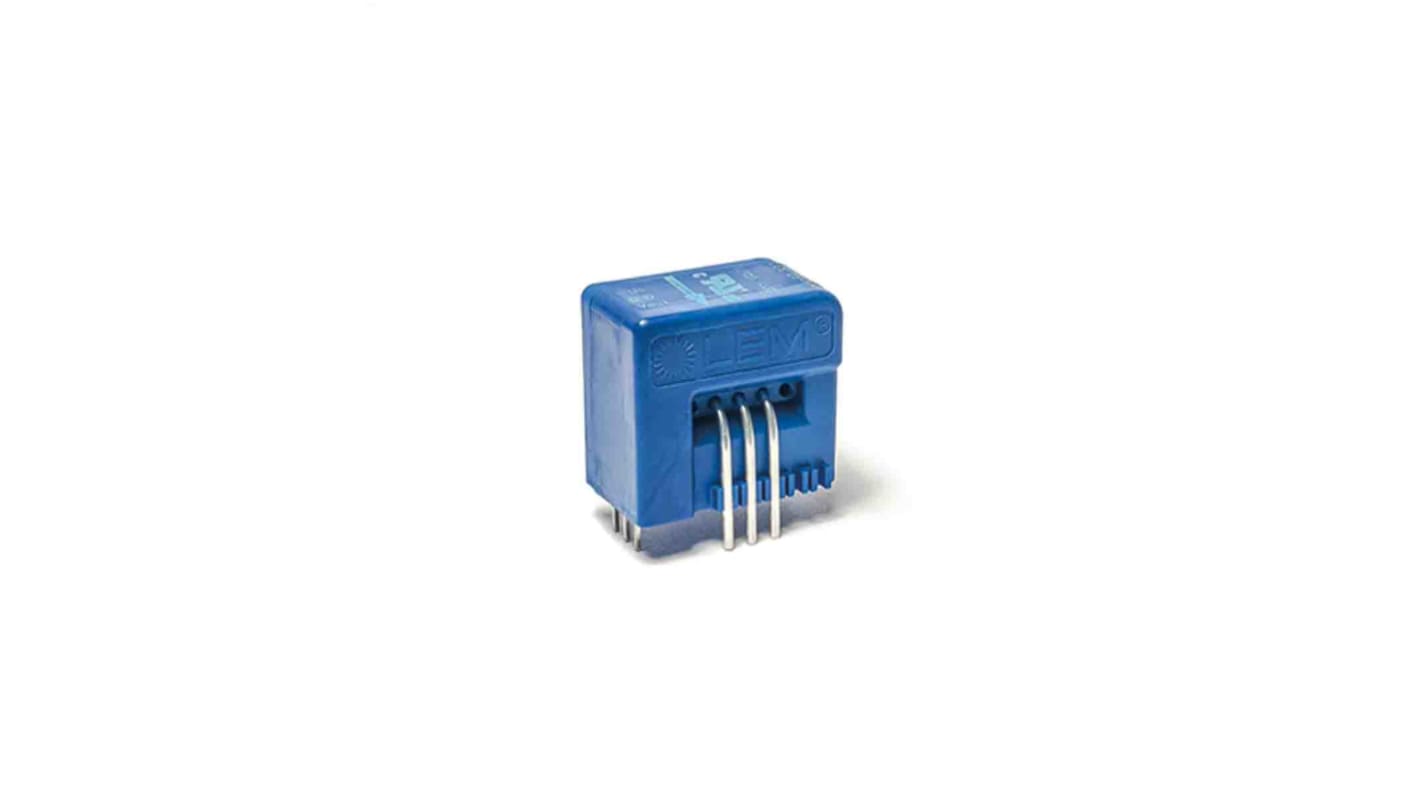

LEM LES Series Current Transformer 50 A 5V
- RS 제품 번호:
- 200-3802
- Distrelec 제품 번호:
- 301-86-194
- 제조사 부품 번호:
- LES 50-NP
- 제조업체:
- LEM
Subtotal (1 unit)*
₩24,778.40
마지막 RS 재고
- 최종적인 184 개 unit(s)이 배송 준비 됨
수량 | 한팩당 |
|---|---|
| 1 + | ₩24,778.40 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 200-3802
- Distrelec 제품 번호:
- 301-86-194
- 제조사 부품 번호:
- LES 50-NP
- 제조업체:
- LEM
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | LEM | |
| Product Type | Current Transformer | |
| Series | LES | |
| Terminal Type | Wire | |
| Primary Current | 50A | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Length | 23.7mm | |
| Standards/Approvals | CE, UL, IEC 61800-5, IEC 61800-3, IEC 61800-2, IEC 61800-1, IEC 62109-1 | |
| Width | 21.9mm | |
| Weight | 10g | |
| Depth | 13.4mm | |
| Mount Type | PCB | |
| Supply Voltage | 5V | |
| Minimum Operating Frequency | 300kHz | |
| 모두 선택 | ||
|---|---|---|
브랜드 LEM | ||
Product Type Current Transformer | ||
Series LES | ||
Terminal Type Wire | ||
Primary Current 50A | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Length 23.7mm | ||
Standards/Approvals CE, UL, IEC 61800-5, IEC 61800-3, IEC 61800-2, IEC 61800-1, IEC 62109-1 | ||
Width 21.9mm | ||
Weight 10g | ||
Depth 13.4mm | ||
Mount Type PCB | ||
Supply Voltage 5V | ||
Minimum Operating Frequency 300kHz | ||
The LEM LES series current transducer for electronic measurement of current with galvanic separation between primary and secondary circuit. It is widely use in solar inverter, power sources, AC variable speed and servo motor drives.
Unipolar supply voltage
Closed loop multi range current transducer
Voltage output
Compact design for PCB mounting
