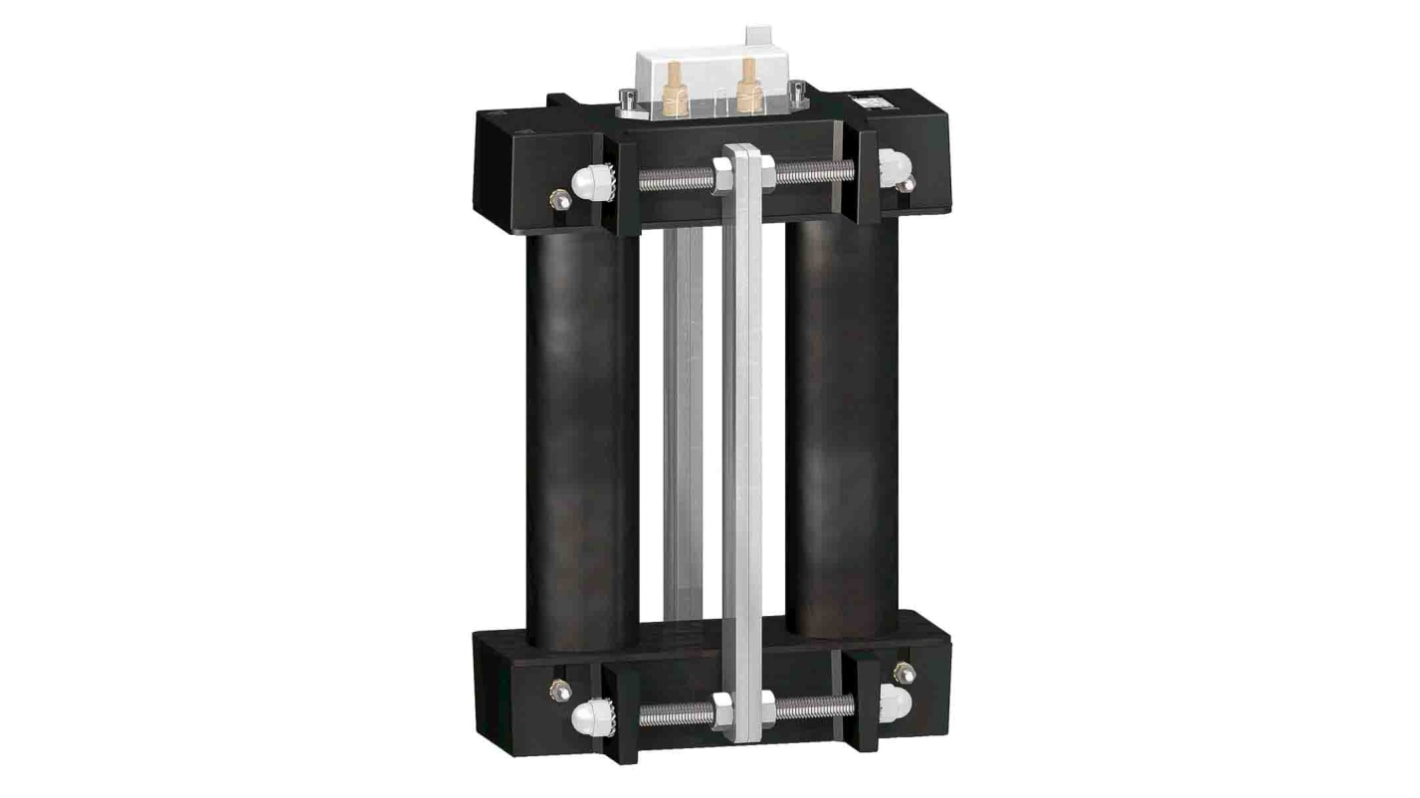

Schneider Electric METSECT Series Tropicalise Current Transformer, 5000A Input, 5000:5, 5 A Output
- RS 제품 번호:
- 198-4510
- 제조사 부품 번호:
- METSECT5VV500
- 제조업체:
- Schneider Electric
Subtotal (1 unit)*
₩1,979,096.68
일시적 품절
- 2026년 3월 09일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩1,979,096.68 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS 제품 번호:
- 198-4510
- 제조사 부품 번호:
- METSECT5VV500
- 제조업체:
- Schneider Electric
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Schneider Electric | |
| Current Ratio | 5000:5 | |
| Series | METSECT | |
| Transformer Type | Tropicalise | |
| Input Current | 5000A | |
| Output Current | 5 A | |
| Overall Height | 242mm | |
| Overall Width | 175mm | |
| Overall Depth | 110mm | |
| Minimum Temperature | -25°C | |
| Maximum Temperature | +50°C | |
| Better World Verification | Green Premium | |
| Better World Product | Yes | |
| Mounting Type | Surface Mount | |
| 모두 선택 | ||
|---|---|---|
브랜드 Schneider Electric | ||
Current Ratio 5000:5 | ||
Series METSECT | ||
Transformer Type Tropicalise | ||
Input Current 5000A | ||
Output Current 5 A | ||
Overall Height 242mm | ||
Overall Width 175mm | ||
Overall Depth 110mm | ||
Minimum Temperature -25°C | ||
Maximum Temperature +50°C | ||
Better World Verification Green Premium | ||
Better World Product Yes | ||
Mounting Type Surface Mount | ||
Schneider Electric METSECT5VV500 is a current transformer which is tropicalized for bus bar mount having an accuracy Class 0.5 at 70 V ac. This current transformer has Class B electrical insulation class and comes with seal. Comes with an Insulated locking screw mounting mode and a bus bar for support. Schneider ElectricMETSECT5VV500 meets various environmental and other standards such as VDE 0414 and IEC 61869-2. This particular transformer 0.511kg and offers Green Premium product sustainable status.
Wide ratio range 5000/5
Tropicalized for cable
5A secondary current
DIN Rail mounting
IP20 protection
Tropicalized for cable
5A secondary current
DIN Rail mounting
IP20 protection
