Schneider Electric PowerLogic Series Current Transformer 500 A 5 VA
- RS 제품 번호:
- 119-253
- 제조사 부품 번호:
- METSECT5HM050
- 제조업체:
- Schneider Electric
Subtotal (1 unit)*
₩1,712,956.36
제조사가 재고 비축중
- 2026년 5월 12일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩1,712,956.36 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 119-253
- 제조사 부품 번호:
- METSECT5HM050
- 제조업체:
- Schneider Electric
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Schneider Electric | |
| Product Type | Current Transformer | |
| Series | PowerLogic | |
| Power Rating | 5VA | |
| Secondary Current | 5A | |
| Terminal Type | Cable | |
| Primary Current | 500A | |
| Minimum Operating Temperature | -5°C | |
| Maximum Operating Temperature | 50°C | |
| Length | 139mm | |
| Standards/Approvals | DIN 4600, DIN EN 61869, VDE 0414, RoHS, DIN EN 618691, EU RoHS, REACH | |
| Width | 67mm | |
| Maximum Operating Frequency | 60Hz | |
| Mount Type | Clip-on | |
| Minimum Operating Frequency | 50Hz | |
| 모두 선택 | ||
|---|---|---|
브랜드 Schneider Electric | ||
Product Type Current Transformer | ||
Series PowerLogic | ||
Power Rating 5VA | ||
Secondary Current 5A | ||
Terminal Type Cable | ||
Primary Current 500A | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature 50°C | ||
Length 139mm | ||
Standards/Approvals DIN 4600, DIN EN 61869, VDE 0414, RoHS, DIN EN 618691, EU RoHS, REACH | ||
Width 67mm | ||
Maximum Operating Frequency 60Hz | ||
Mount Type Clip-on | ||
Minimum Operating Frequency 50Hz | ||
- COO (Country of Origin):
- HU

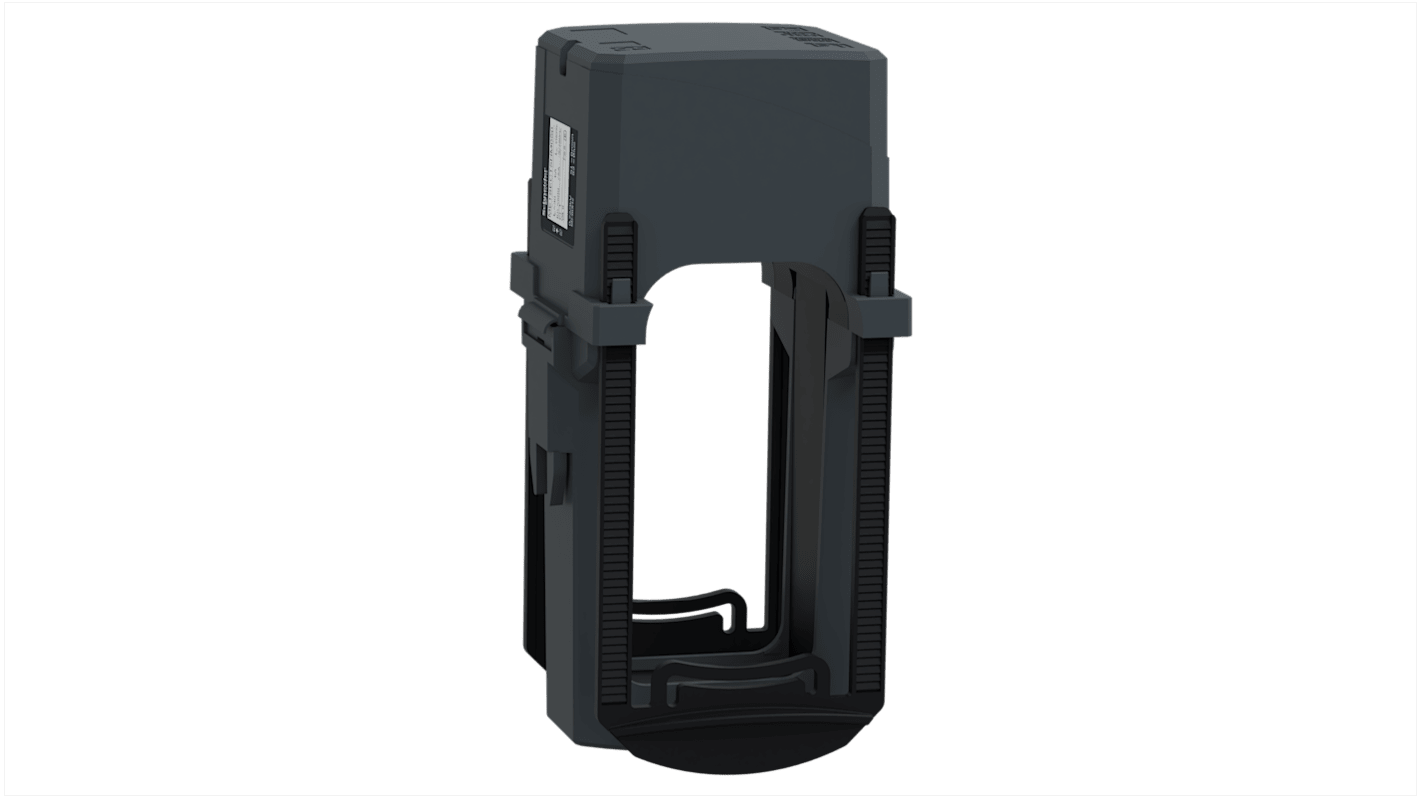

The Schneider Electric PowerLogic Split Core Current Transformer Type HM is a reliable and efficient solution for measuring electrical currents accurately. With its Class 1 accuracy at 5A, it ensures precise readings for a variety of applications. The clip-on mounting mode makes installation quick and easy, while the high electrical insulation class provides safety and reliability.
Secondary current of 5A for accurate measurements
Rated operational voltage of less than 720V for safe operation
Compliant with EU RoHS Directive for environmental sustainability
