Phoenix Contact PACT RCP Series Current Transformer 100 A 4 W 8.3 mm Bore
- RS 제품 번호:
- 174-3475
- 제조사 부품 번호:
- 1033483
- 제조업체:
- Phoenix Contact
Subtotal (1 unit)*
₩609,439.60
재고있음
- 2 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩609,439.60 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 174-3475
- 제조사 부품 번호:
- 1033483
- 제조업체:
- Phoenix Contact
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Phoenix Contact | |
| Product Type | Current Transformer | |
| Series | PACT RCP | |
| Power Rating | 4W | |
| Terminal Type | Screw | |
| Primary Current | 100A | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 80°C | |
| Width | 22.5mm | |
| Standards/Approvals | IEC 61010-1, IEC 61010-2-032, CE, EAC | |
| Depth | 70.4mm | |
| Weight | 440.3g | |
| Mount Type | DIN Rail | |
| Maximum Operating Frequency | 45Hz | |
| Minimum Operating Frequency | 65Hz | |
| Bore Size | 8.3mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 Phoenix Contact | ||
Product Type Current Transformer | ||
Series PACT RCP | ||
Power Rating 4W | ||
Terminal Type Screw | ||
Primary Current 100A | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 80°C | ||
Width 22.5mm | ||
Standards/Approvals IEC 61010-1, IEC 61010-2-032, CE, EAC | ||
Depth 70.4mm | ||
Weight 440.3g | ||
Mount Type DIN Rail | ||
Maximum Operating Frequency 45Hz | ||
Minimum Operating Frequency 65Hz | ||
Bore Size 8.3mm | ||
- COO (Country of Origin):
- DE

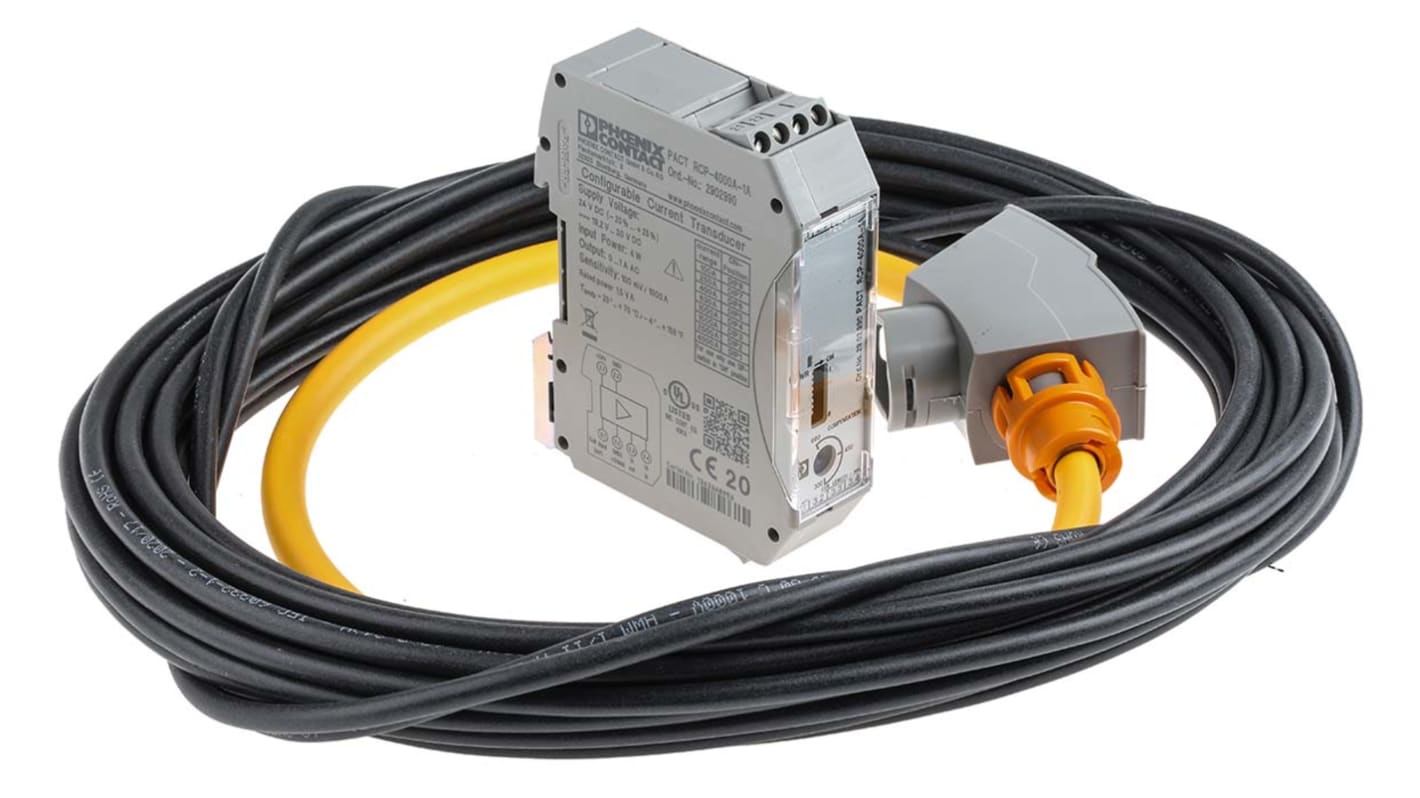

Phoenix Contact Current Transformer Set, 1A Output, 7.2mm Diameter - PACT RCP-4000A-1A-D140-10M - 1033483
Working with a high current that you need to control or measure? This transformer set from Phoenix Contact offers you an effective and comprehensive solution. It includes a measuring transducer, as well as a Rogowski coil with a signal line for measuring high-speed alternating current (AC) pulses.
The Rogowski coil is a wound wire around a central conductor, which is connected in series. This creates an electromagnetic field that can transform a very high direct current into a lower alternating current.
The transducer is made of high-strength polycarbonate with a durable polyamide (PA) housing, ensuring a long product life even in harsh, demanding environments. This product is particularly suited for use with very large or fast-changing currents.
• Bore size of 8.3mm
• Dimensions of 85 (height) x 22.5 (width) x 70.4mm (depth)
• Inner diameter of 8.3mm
• DIN rail mounting type
• Output current of 1A
• Operating temperature range of -20°C to +80°C
• Conforms to the Restriction of Hazardous Substances (RoHS), meaning it contains no more than minimal amounts of any potentially harmful materials
