Phoenix Contact PACT RCP Series Current Transformer 1000 A 8.3 mm Bore

모든 Current Transformers 열람하기

Subtotal (1 unit)*

₩322,119.20

Add to Basket
수량 선택 또는 입력
제조사가 재고 비축중
  • 2026년 5월 25일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩322,119.20

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
131-235
제조사 부품 번호:
2904891
제조업체:
Phoenix Contact
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Phoenix Contact

Product Type

Current Transformer

Series

PACT RCP

Minimum Operating Temperature

-30°C

Primary Current

1000A

Maximum Operating Temperature

80°C

Length

450mm

Weight

169g

Standards/Approvals

EU RoHS, CMIM, cUL, IEC 610100, IEC 610101, RoHS, UKCA, UL, UL 61010

Maximum Operating Frequency

20000Hz

Bore Size

8.3mm

Minimum Operating Frequency

40Hz

COO (Country of Origin):
IT

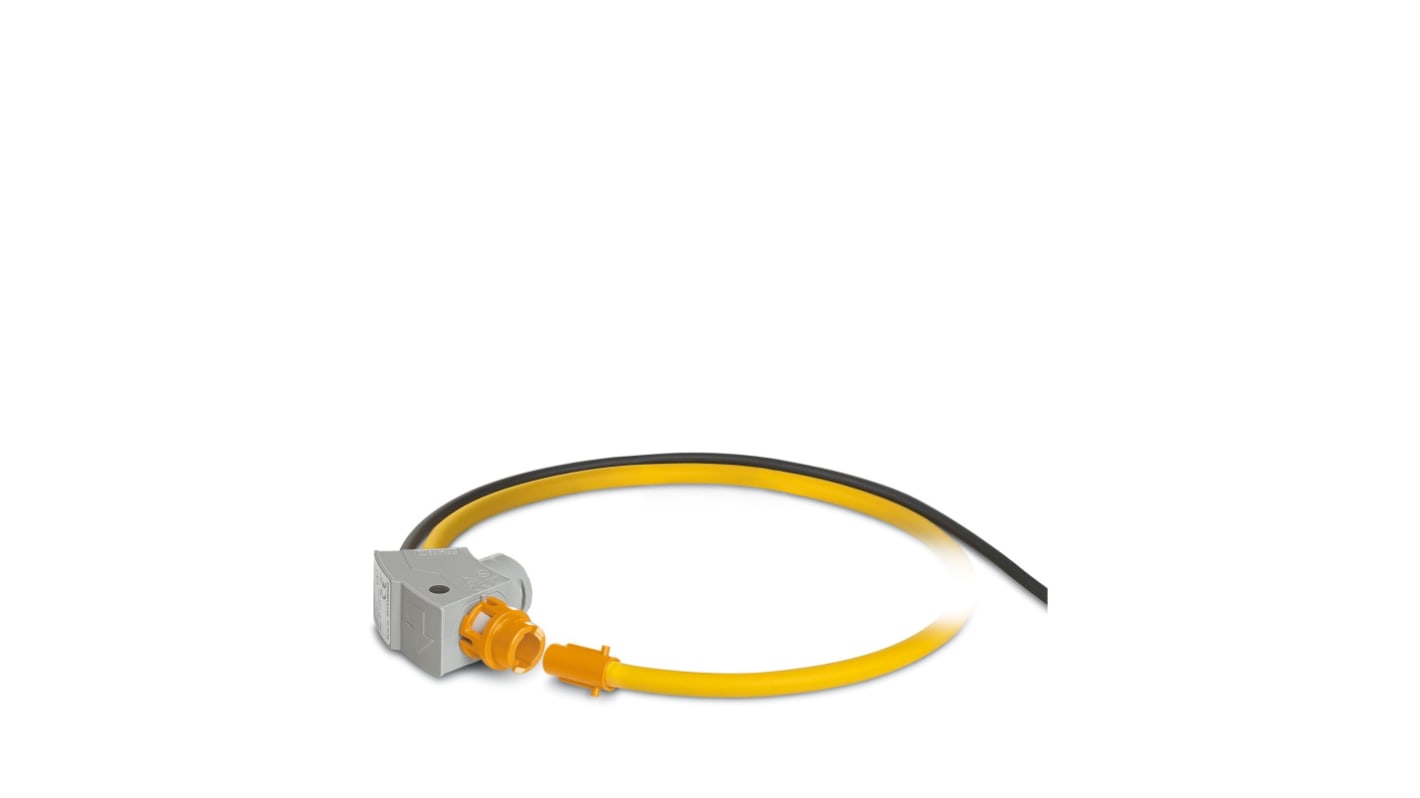

The Phoenix Contact Rogowski coil is designed for AC current measurement for busbars and power lines. With a 450 mm length and 140 mm diameter when installed, this coil offers precise measurements with a basic accuracy of less than 0.2%. The double insulated measuring coil has a rated insulation voltage of 1000 V AC, making it suitable for a variety of applications. Approved by UKCA and CMIM, this coil meets all necessary standards and regulations for safe use. The environmentally friendly design is RoHS compliant, ensuring a sustainable choice for your projects.

Approved by UKCA and CMIM for compliance

RoHS compliant for environmentally friendly use
