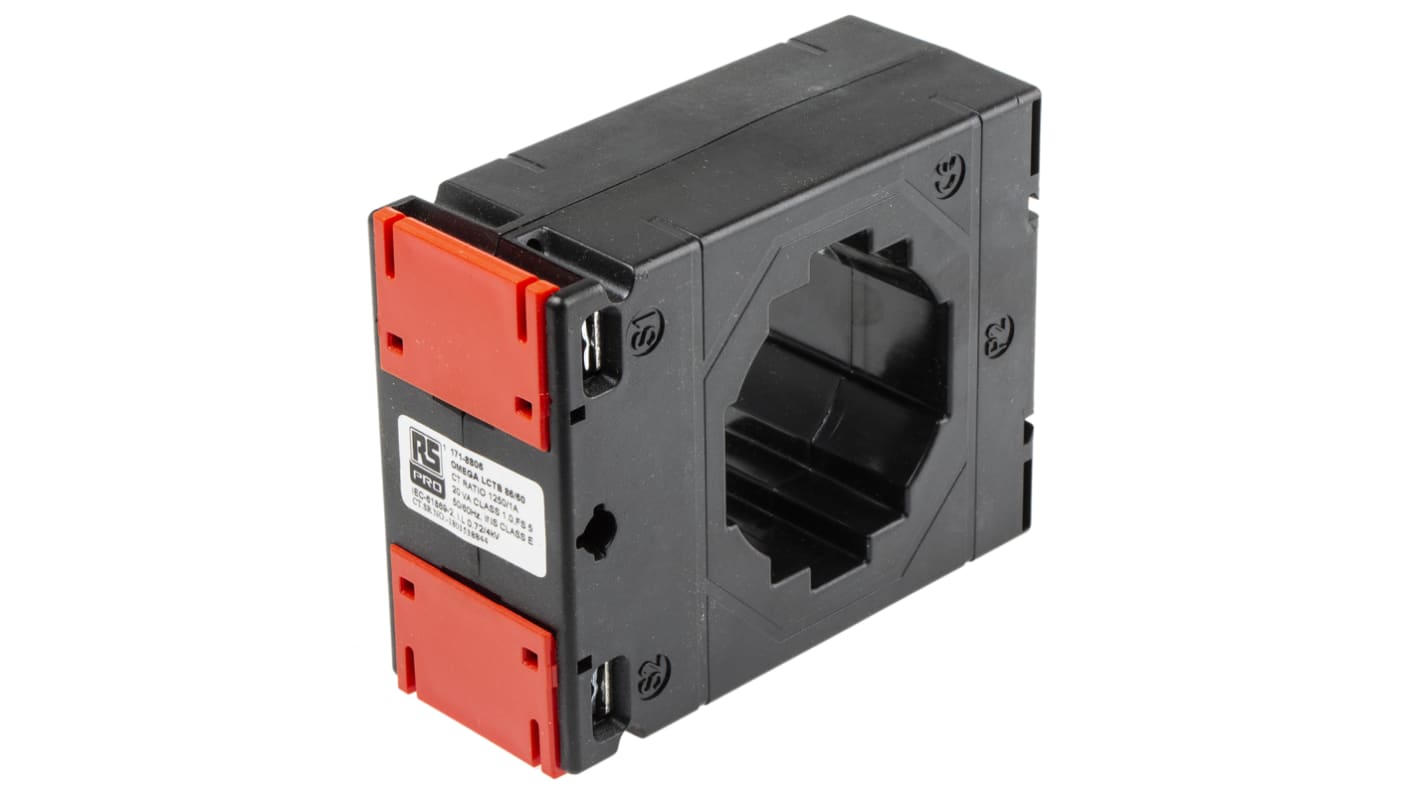

RS PRO Current Transformer 1.25 kA 1250:1 21mm Bore
- RS 제품 번호:
- 171-8806
- 제조업체:
- RS PRO
대량 구매 할인 기용 가능
View bulk pricing optionsSubtotal (1 unit)*
₩51,080.00
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
수량 | 한팩당 |
|---|---|
| 1 - 4 | ₩51,080.00 |
| 5 + | ₩42,040.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 171-8806
- 제조업체:
- RS PRO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RS PRO | |
| Product Type | Current Transformer | |
| Secondary Current | 1A | |
| Terminal Type | Screw | |
| Minimum Operating Temperature | 30°C | |
| Primary Current | 1.25kA | |
| Maximum Operating Temperature | 55°C | |
| Width | 112mm | |
| Standards/Approvals | DIN EN 61346-2T | |
| Weight | 1.06kg | |
| Depth | 77mm | |
| Mount Type | Screw Fixing | |
| Turns Ratio | 1250:1 | |
| Bore Diameter | 21mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 RS PRO | ||
Product Type Current Transformer | ||
Secondary Current 1A | ||
Terminal Type Screw | ||
Minimum Operating Temperature 30°C | ||
Primary Current 1.25kA | ||
Maximum Operating Temperature 55°C | ||
Width 112mm | ||
Standards/Approvals DIN EN 61346-2T | ||
Weight 1.06kg | ||
Depth 77mm | ||
Mount Type Screw Fixing | ||
Turns Ratio 1250:1 | ||
Bore Diameter 21mm | ||
- COO (Country of Origin):
- IN
RS Pro CT’s are square type and encapsulated with polycarbonate. These metering CT’s feature sealable terminal covers and a wide range of primary current ratings. Available in various, Bus bar sizes, case widths, and mounting options.
Comprehensive class accuracy
Cost effective moulded case current transformer
Various mounting options including wall mounting, cable mounting and bus bar mounting
Wire sealable terminal covers
Primary current 5A to 7500A
Secondary current 1A or 5A
Over current limiting factor FS5, FS10, FS15
Rated frequency 50Hz or 60Hz
Rated continuous thermal current (standard) 1,2 x in
Rated short time thermal current with 60 x in, 1 s (Max 40kA)
Rated isolation level 0.72/3 kV or 0.72/4 kV
Altitude up to 2000 m
Ambient temperature -5°C to + 55°C (0-95% relative humidity,non condensing!)
Storage temperature -25°C to + 70°C
