RS PRO XW01 Series Current Transformer 10 A 62 x 40 mm Bore
- RS 제품 번호:
- 171-8856
- Distrelec 제품 번호:
- 304-18-112
- 제조업체:
- RS PRO
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩29,685.20
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
수량 | 한팩당 |
|---|---|
| 1 - 4 | ₩29,685.20 |
| 5 + | ₩24,440.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 171-8856
- Distrelec 제품 번호:
- 304-18-112
- 제조업체:
- RS PRO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RS PRO | |
| Product Type | Current Transformer | |
| Series | XW01 | |
| Secondary Current | 5 A | |
| Terminal Type | Wire | |
| Primary Current | 10A | |
| Minimum Operating Temperature | 55°C | |
| Maximum Operating Temperature | 55°C | |
| Length | 78mm | |
| Standards/Approvals | IEC 61010-2, UL 94 V-0, IEC 61869-1, IEC 60044-1 | |
| Depth | 40mm | |
| Width | 40 mm | |
| Mount Type | Surface | |
| Maximum Operating Frequency | 60Hz | |
| Minimum Operating Frequency | 50Hz | |
| Bore Size | 62 x 40 mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 RS PRO | ||
Product Type Current Transformer | ||
Series XW01 | ||
Secondary Current 5 A | ||
Terminal Type Wire | ||
Primary Current 10A | ||
Minimum Operating Temperature 55°C | ||
Maximum Operating Temperature 55°C | ||
Length 78mm | ||
Standards/Approvals IEC 61010-2, UL 94 V-0, IEC 61869-1, IEC 60044-1 | ||
Depth 40mm | ||
Width 40 mm | ||
Mount Type Surface | ||
Maximum Operating Frequency 60Hz | ||
Minimum Operating Frequency 50Hz | ||
Bore Size 62 x 40 mm | ||
- COO (Country of Origin):
- IN

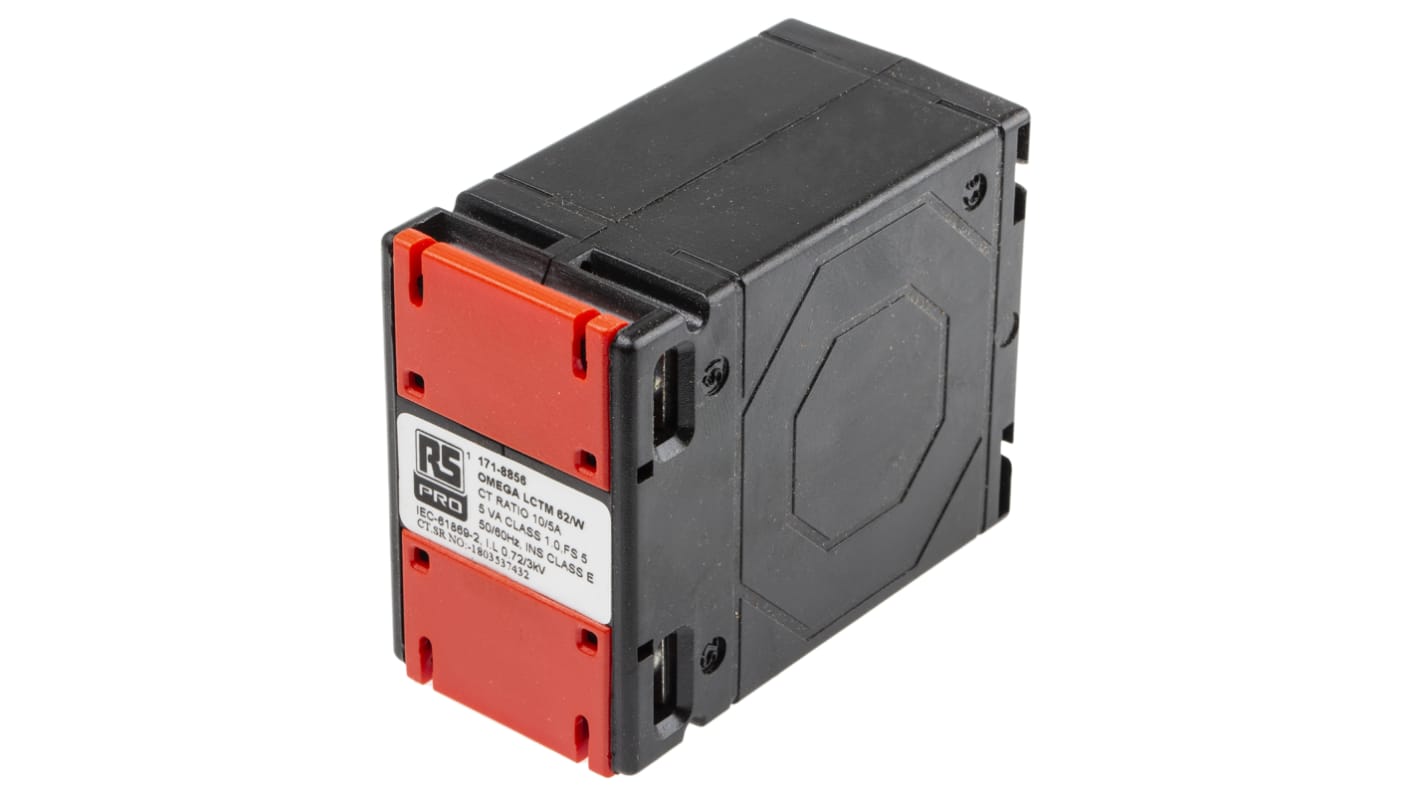

RS PRO Current Transformers
The RS PRO current transformer is clip fit square type and encapsulated with polycarbonate. This metering CT features sealable terminal covers and has a current ratio of 10:5. It is a surface mounted device.
Features and Benefits
• Accuracy class 1
• Cost-effective moulded case
• Operating temperature ranges between -5°C and 55°C
Applications
• Commercial electric power distribution
• Electrical substations
Certifications
• IEC - 61010 - 2
• IEC 60044-1/IEC 61869-1
• IP20 rated
• UL94V-0
