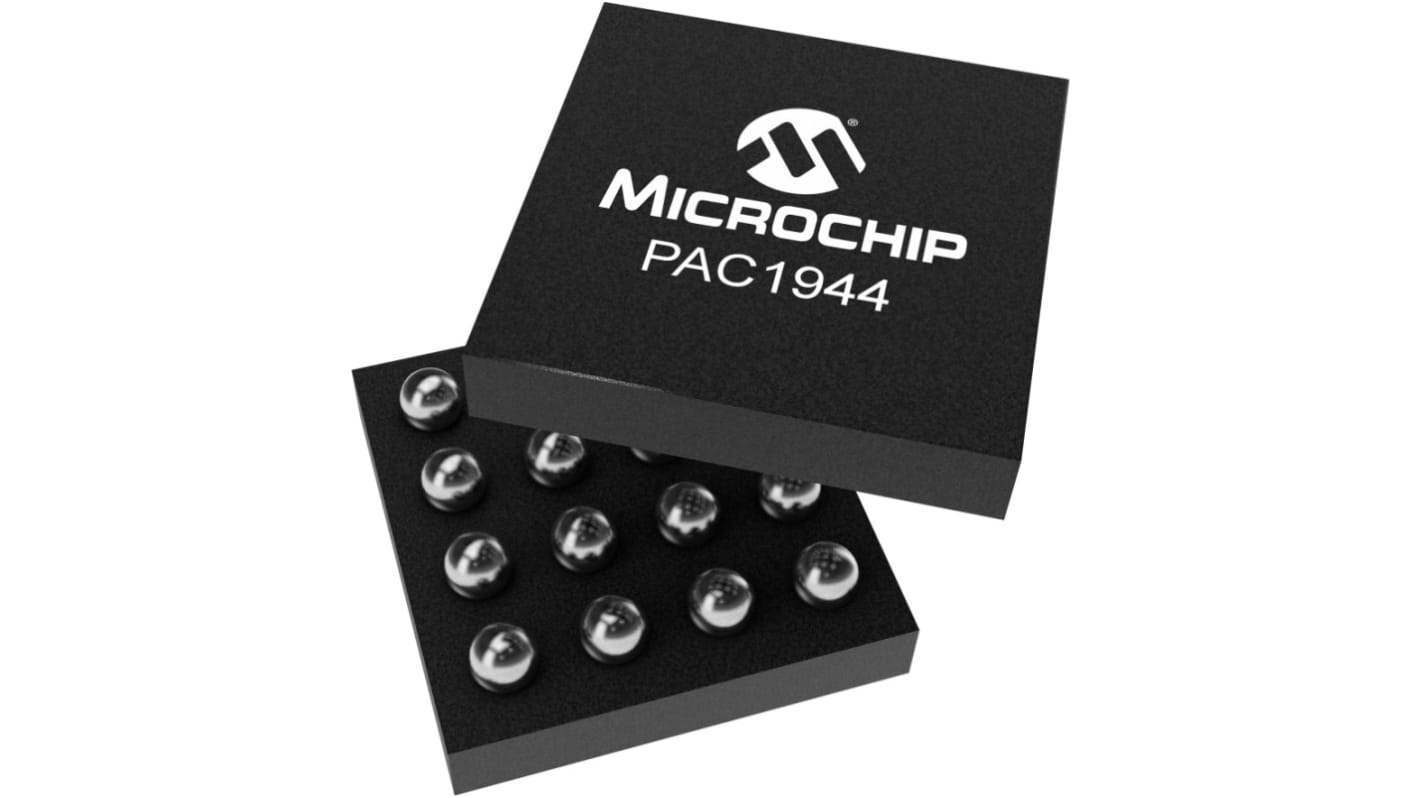

Microchip Power Monitor Single 16-Pin WLSCP
- RS 제품 번호:
- 249-5562P
- 제조사 부품 번호:
- PAC1944T-E/J6CX
- 제조업체:
- Microchip
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
- RS 제품 번호:
- 249-5562P
- 제조사 부품 번호:
- PAC1944T-E/J6CX
- 제조업체:
- Microchip
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Microchip | |
| Product Type | Power Monitor | |
| Power Supply Type | Single | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Supply Voltage | 2.7V | |
| Number of Channels | 4 | |
| Mount Type | Surface | |
| Package Type | WLSCP | |
| Pin Count | 16 | |
| Minimum Operating Temperature | -40°C | |
| Standards/Approvals | RoHS | |
| Height | 0.85mm | |
| Width | 3 mm | |
| Length | 3mm | |
| Series | PAC194X | |
| Maximum Operating Temperature | 125°C | |
| Automotive Standard | AEC-Q100 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Microchip | ||
Product Type Power Monitor | ||
Power Supply Type Single | ||
Maximum Supply Voltage 5.5V | ||
Minimum Supply Voltage 2.7V | ||
Number of Channels 4 | ||
Mount Type Surface | ||
Package Type WLSCP | ||
Pin Count 16 | ||
Minimum Operating Temperature -40°C | ||
Standards/Approvals RoHS | ||
Height 0.85mm | ||
Width 3 mm | ||
Length 3mm | ||
Series PAC194X | ||
Maximum Operating Temperature 125°C | ||
Automotive Standard AEC-Q100 | ||
The Microchip quad power monitor and energy monitor that reports on bus voltage and sense voltage 16-bits of resolution. Power is reported as a simultaneous product of two 16-bit independent bus and sense voltages. All registers are accessible through I2C / SMBus including an 8 sample average for reading stability. The device can detect over/under voltage, over/undercurrent and overpower against user programmed limits for each channel and generate ALERT outputs.
High-side/low-side current monitor
Voltage monitor with wide vbus range
1% power measurement accuracy over a wide dynamic range
User programmable sampling rates of 8, 64, 256, 1024
