Eaton Grey Plastic RMQ Titan M22 Push Button Enclosure - 6 Hole 22 mm Diameter
- RS 제품 번호:
- 399-3860
- Distrelec 제품 번호:
- 304-10-375
- 제조사 부품 번호:
- 216540 M22-I6
- 제조업체:
- Eaton
대량 구매 할인 기용 가능
View bulk pricing optionsSubtotal (1 unit)*
₩95,320.00
재고있음
- 54 개 단위 배송 준비 완료
- 추가로 2026년 8월 25일 부터 27 개 단위 배송
- 추가로 2026년 9월 08일 부터 32 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 4 | ₩95,320.00 |
| 5 + | ₩78,440.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 399-3860
- Distrelec 제품 번호:
- 304-10-375
- 제조사 부품 번호:
- 216540 M22-I6
- 제조업체:
- Eaton
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Eaton | |
| Series | RMQ Titan M22 | |
| Product Type | Push Button Enclosure | |
| Cutout Diameter | 22mm | |
| Number of Cutouts | 6 | |
| Enclosure Colour | Grey | |
| Enclosure Material | Plastic | |
| IP Rating | IP67 | |
| Length | 252mm | |
| Width | 80mm | |
| Depth | 56mm | |
| Maximum Operating Temperature | 70°C | |
| Minimum Operating Temperature | -25°C | |
| Standards/Approvals | UL, CSA | |
| 모두 선택 | ||
|---|---|---|
브랜드 Eaton | ||
Series RMQ Titan M22 | ||
Product Type Push Button Enclosure | ||
Cutout Diameter 22mm | ||
Number of Cutouts 6 | ||
Enclosure Colour Grey | ||
Enclosure Material Plastic | ||
IP Rating IP67 | ||
Length 252mm | ||
Width 80mm | ||
Depth 56mm | ||
Maximum Operating Temperature 70°C | ||
Minimum Operating Temperature -25°C | ||
Standards/Approvals UL, CSA | ||
- COO (Country of Origin):
- DE

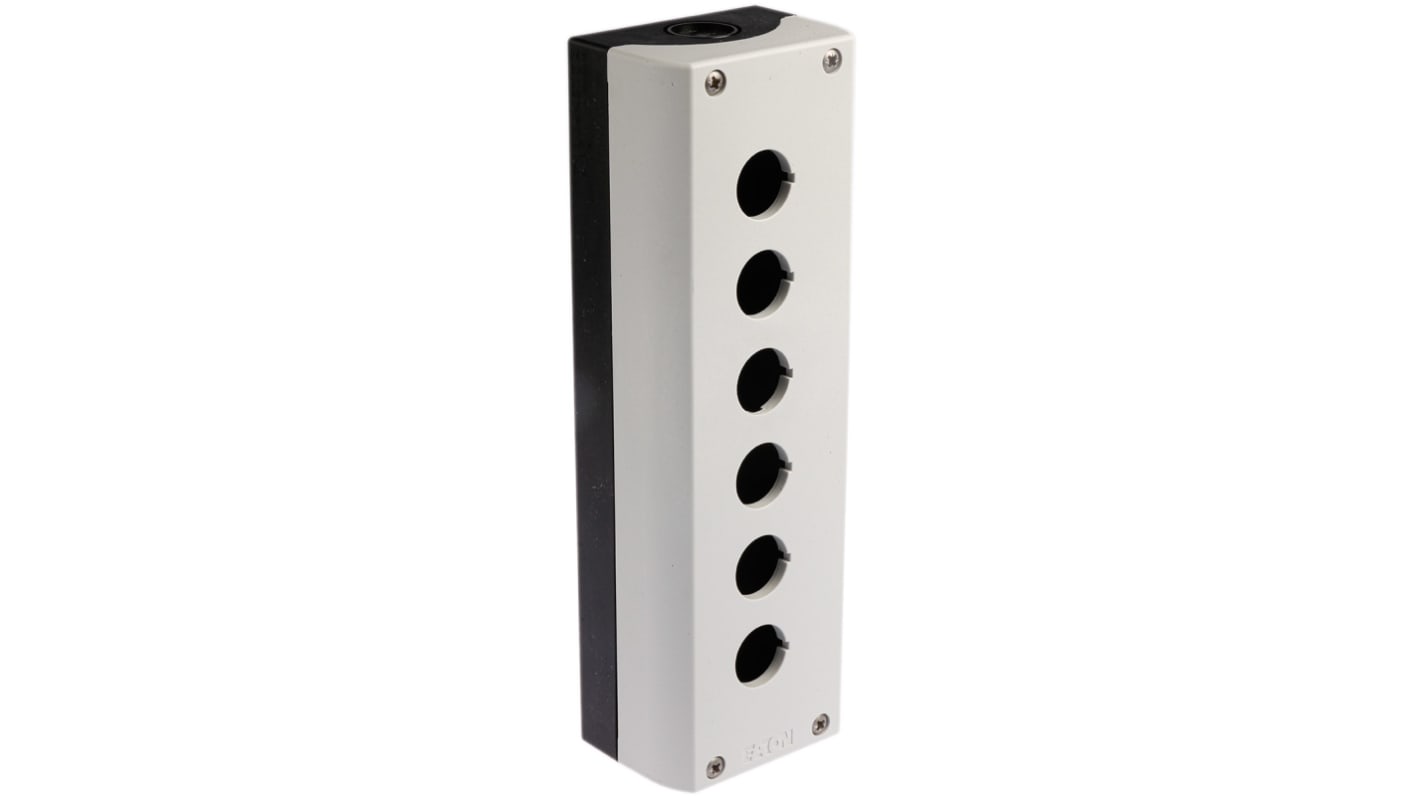

Eaton Push Button Enclosure, Surface Mounting, IP66 Rating - RMQ Titan Series - 216540 M22-I6
Keep your control devices safe and sound with this push button enclosure from Eaton. The station's IP66 rating shows it shuts out dust and high-pressure water jets to effectively protect sensitive gear in harsh conditions. Six ports are on hand to support complex setups. Installation is done in no time, as the unit simply screws onto a flat surface or panel. Thanks to the insulating plastic body, your risk of exposure to an electric shock is minimal. Use enclosures like this one in automated assembly lines and the food production industry.
Features & Benefits
• Holds industry-standard 22mm push buttons for wide controller compatibility
• Slim dimensions of 252 (H) x 56 (D) x 80mm (W) make it easy to find a spot for installation
• Pre-cut ports minimise preparation time
• Broad operating temperature range between -25°C and +70°C to protect controls in demanding temperatures
Does this enclosure come with cable knockouts?
Yes, this product has M20 and M25 threaded knockouts, so running connections into the unit is no issue.
How do I open this station?
It comes with a screw-on cover that opens with just a screwdriver to give you easy access to your components.
Note
Eaton formerly known as Moeller
