RS PRO Stainless Steel Push Button Enclosure - 1 Hole 22 mm Diameter

모든 Control Station Enclosures 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩226,512.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 69 개 단위 배송 준비 완료
  • 추가로 2026년 5월 12일 부터 38 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량
한팩당
1 - 4₩226,512.00
5 +₩186,420.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
161-1521
Distrelec 제품 번호:
303-91-474
제조업체:
RS PRO
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

RS PRO

Product Type

Push Button Enclosure

Cutout Diameter

22mm

Number of Cutouts

1

Enclosure Material

Stainless Steel

IP Rating

IP69K, IP66

Length

75mm

Width

50mm

Depth

75mm

Standards/Approvals

UL

제외

COO (Country of Origin):
GB

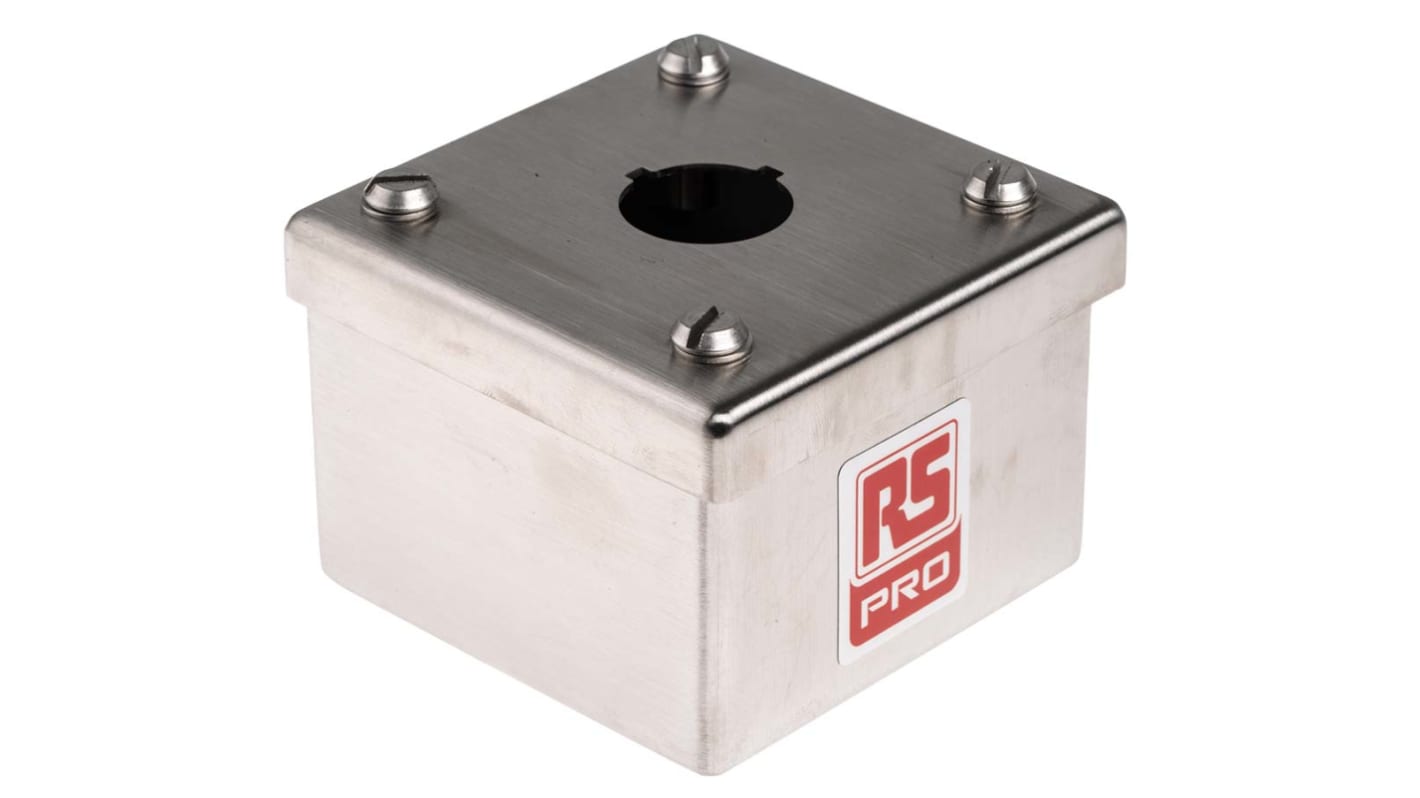

RS PRO 304 Stainless Steel Push Button Enclosure – 1 Hole 22.5 mm Diameter


Sporting a robust casing, this RS PRO 304 stainless steel push-button enclosure provides protection for a wide range of different buttons. It'll stand the test of harsh environments and is quick and easy to install.

The unit is resilient to corrosion and has an ingress protection rating of IP69K that guarantees its resistance to dust, extreme temperatures and high water pressure. It's also aesthetically pleasing with clean lines and a smooth satin-brushed finish. The enclosure has a cutout in the lid and is supplied with a gasket lid, captive lid fixing screws, earth terminals and earth link.

Its IP rating makes the component suitable for protecting push buttons in conditions where equipment needs to be frequently sanitised or in washdown areas. The casing also offers protection from grease, oil and other hazardous substances so you can use this push button enclosure in a wide range of applications.

Features and Benefits


• 304 Stainless steel push-button enclosure

• Resistant to corrosion

• Supplied with earth terminals and earth link

• Quick and easy installation

• Cutout diameter of 22.5 mm

• One cutout

• Dimensions of 75 mm x 50 mm x 75 mm

• IP66 & IP69K Rated

• Meets BS EN 60529: 1992 IEC 529: 1989 standards for ingress protection

RS PRO


RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Approvals

UL
