ABB, EF96 Electronic Overload Relay 1 NO/1 NC, 100A F.L.C, 6A Contact Rating, 690V ac 3

RS 제품 번호:: 800-7352
제조사 부품 번호:: 1SAX341001R1101 EF96-100
제조업체:: ABB

ABB, EF96 Electronic Overload Relay 1 NO/1 NC, 100A F.L.C, 6A Contact Rating, 690V ac 3

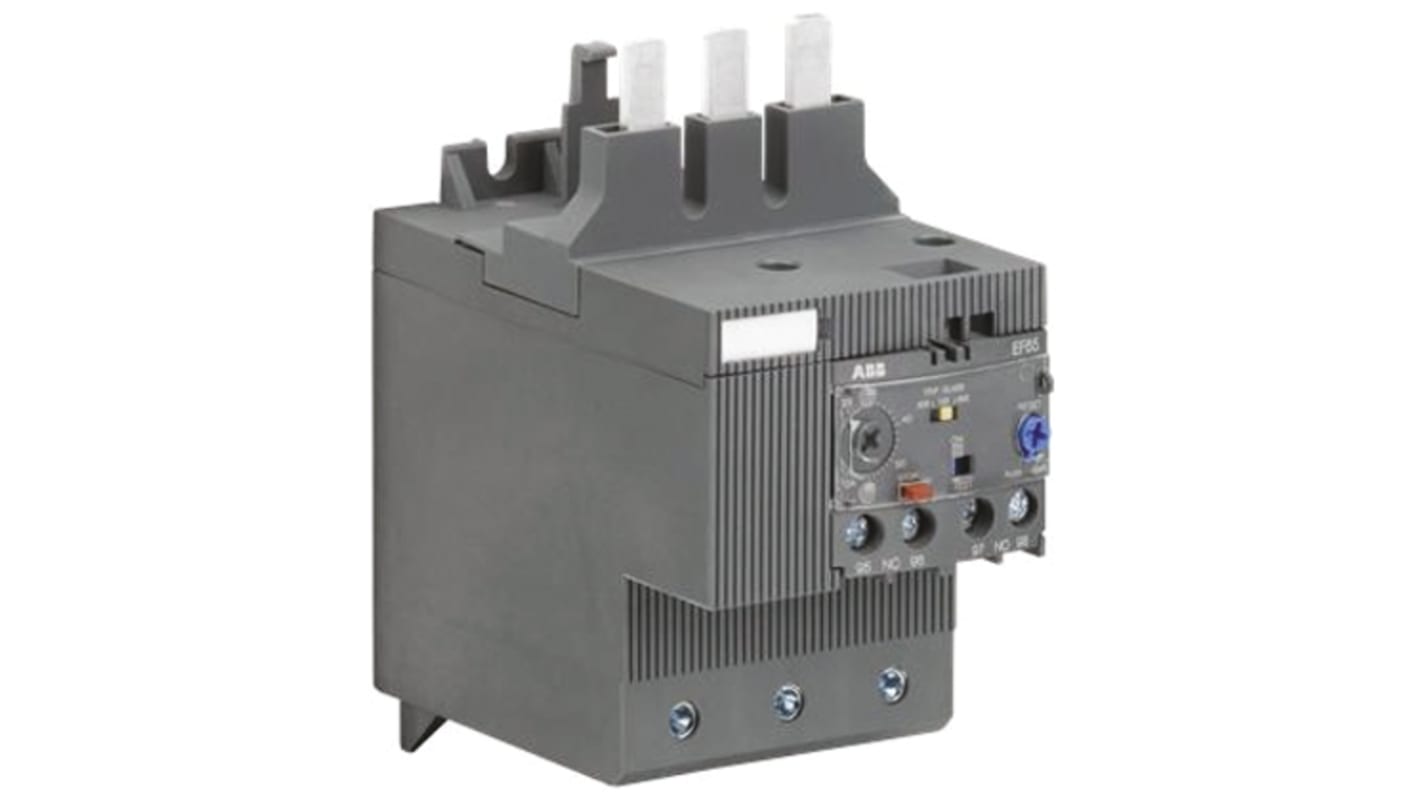

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 Contactor Overload Relays 열람하기

Subtotal (1 unit)*

₩637,760.00

재고있음

8 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩637,760.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 800-7352
제조사 부품 번호:: 1SAX341001R1101 EF96-100
제조업체:: ABB

사양

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	ABB
	Product Type	Electronic Overload Relay
	FLC Motor Rating	100A
	Relay Contact Current	6A
	Series	EF96
	Mount Type	Under Contactor Mount
	Pole and Throw Configuration	3
	Terminal Type	Flat
	Normal State Configuration	1 NO/1 NC
	IP Rating	IP20
	Reset Method	Automatic & Manual
	Width	105.2mm
	Number of Auxiliary Contacts	2
	Adjustable Current Range	36 → 100 A
	Minimum Operating Temperature	-25°C
	Length	70mm
	Contact Voltage	600V ac/dc
	Maximum Operating Temperature	70°C
	Standards/Approvals	IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1, UL 60947-1, UL 60947-4-1
	Depth	105.2mm
	Supply Voltage	1000V ac
	Control Voltage	690V ac

	모두 선택
	브랜드 ABB
	Product Type Electronic Overload Relay
	FLC Motor Rating 100A
	Relay Contact Current 6A
	Series EF96
	Mount Type Under Contactor Mount
	Pole and Throw Configuration 3
	Terminal Type Flat
	Normal State Configuration 1 NO/1 NC
	IP Rating IP20
	Reset Method Automatic & Manual
	Width 105.2mm
	Number of Auxiliary Contacts 2
	Adjustable Current Range 36 → 100 A
	Minimum Operating Temperature -25°C
	Length 70mm
	Contact Voltage 600V ac/dc
	Maximum Operating Temperature 70°C
	Standards/Approvals IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1, UL 60947-1, UL 60947-4-1
	Depth 105.2mm
	Supply Voltage 1000V ac
	Control Voltage 690V ac

해당 안됨

COO (Country of Origin):: CN

Electronic Overload Relay

Electronic overload relays are the alternative to the thermal overload relays; they offer reliable and fast protection for motors in the event of overload or phase failure.

Overload protection – trip class 10E, 20E, 30E selectable

Phase loss sensitivity

Adjustable current setting for overload protection

Automatic or manual reset selectable

Trip-free mechanism

Status indication

STOP and TEST function

Sealable operating elements

ABB, EF96 Electronic Overload Relay 1 NO/1 NC, 100A F.L.C, 6A Contact Rating, 690V ac 3

Electronic Overload Relay
