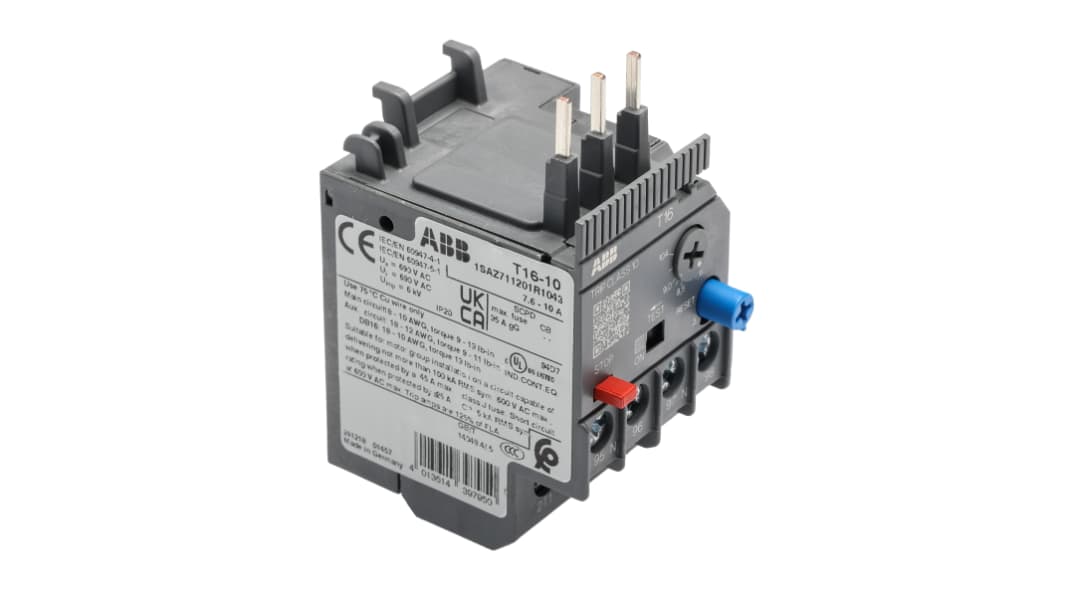

ABB, T16-10 Thermal Overload Relay 1 NO/1 NC, 10A, 7.6 A F.L.C, 10A Contact Rating, 2 W, 600V dc 3
- RS 제품 번호:
- 231-8974
- 제조사 부품 번호:
- 1SAZ711201R1043 T16-10
- 제조업체:
- ABB
Subtotal (1 Box of 1 unit)*
₩83,518.50
재고있음
- 추가로 2026년 6월 15일 부터 49 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
Box(es) | Per Box |
|---|---|
| 1 + | ₩83,518.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 231-8974
- 제조사 부품 번호:
- 1SAZ711201R1043 T16-10
- 제조업체:
- ABB
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | ABB | |
| FLC Motor Rating | 10, 7.6A | |
| Product Type | Thermal Overload Relay | |
| Relay Contact Current | 10A | |
| Series | T16-10 | |
| Power Rating | 2W | |
| Pole and Throw Configuration | 3 | |
| Normal State Configuration | 1 NO/1 NC | |
| Terminal Type | Screw | |
| IP Rating | IP20 | |
| Reset Method | Automatic & Manual | |
| Number of Auxiliary Contacts | 2 | |
| Minimum Operating Temperature | -25°C | |
| Adjustable Current Range | 7.6 to 10 A | |
| Width | 45mm | |
| Length | 53.5mm | |
| Maximum Operating Temperature | 60°C | |
| Contact Voltage | 600V dc | |
| Depth | 53.5mm | |
| Standards/Approvals | IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1, UL 60947-1, UL 60947-4-1 | |
| Supply Voltage | 690V | |
| Control Voltage | 600V dc | |
| 모두 선택 | ||
|---|---|---|
브랜드 ABB | ||
FLC Motor Rating 10, 7.6A | ||
Product Type Thermal Overload Relay | ||
Relay Contact Current 10A | ||
Series T16-10 | ||
Power Rating 2W | ||
Pole and Throw Configuration 3 | ||
Normal State Configuration 1 NO/1 NC | ||
Terminal Type Screw | ||
IP Rating IP20 | ||
Reset Method Automatic & Manual | ||
Number of Auxiliary Contacts 2 | ||
Minimum Operating Temperature -25°C | ||
Adjustable Current Range 7.6 to 10 A | ||
Width 45mm | ||
Length 53.5mm | ||
Maximum Operating Temperature 60°C | ||
Contact Voltage 600V dc | ||
Depth 53.5mm | ||
Standards/Approvals IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1, UL 60947-1, UL 60947-4-1 | ||
Supply Voltage 690V | ||
Control Voltage 600V dc | ||
- COO (Country of Origin):
- DE
ABB T16-10 Series Thermal Overload Relay, 7.6 to 10A FLC Motor Rating, 10A Contact Current Rating - 1SAZ711201R1043 T16-10
This thermal overload relay is an electromechanical device designed for effective motor protection in industrial applications. It operates within a current rating of 7.6 to 10 A and features a compact design with dimensions of 45mm width, 53.5mm depth, and 53.5mm length. The relay is suitable for use in environments where reliable protection against overload and phase failure is critical.
Features & Benefits
• Automatic or manual reset options for flexibility in operation
• Trip class 10 ensures timely response to overload conditions
• Equipped with 1 NC and 1 NO auxiliary contacts for enhanced functionality
• High voltage operational capability up to 690V for versatility
• Designed to connect directly to mini or block contactors, simplifying installation
• Compact design promotes effective space management in control panels
Applications
• Utilised for motor protection in automated systems
• Applied in industrial machinery to prevent phase loss damage
• Suitable for integration with mini contactors for compact solutions
• Used in environments with varying temperature conditions up to +60°C
What is the temperature range for safe operation?
The device operates effectively within a temperature range of -25°C to +60°C, allowing for use in diverse industrial environments.
What types of connections are compatible with this relay?
It features screw terminal connections, accommodating various conductor sizes for flexible installation options.
How does the trip mechanism function during overload situations?
The relay's trip class 10 mechanism offers reliable activation, providing a prompt response to overload conditions to prevent motor damage.
What design considerations ensure this relay is reliable in industrial settings?
The robust construction, high voltage rating, and effective temperature compensation features enhance its reliability in demanding environments.
What is the impact of the auxiliary contacts in operation?
The auxiliary contacts offer additional signals for system monitoring, enhancing supervision and control in motor applications.
