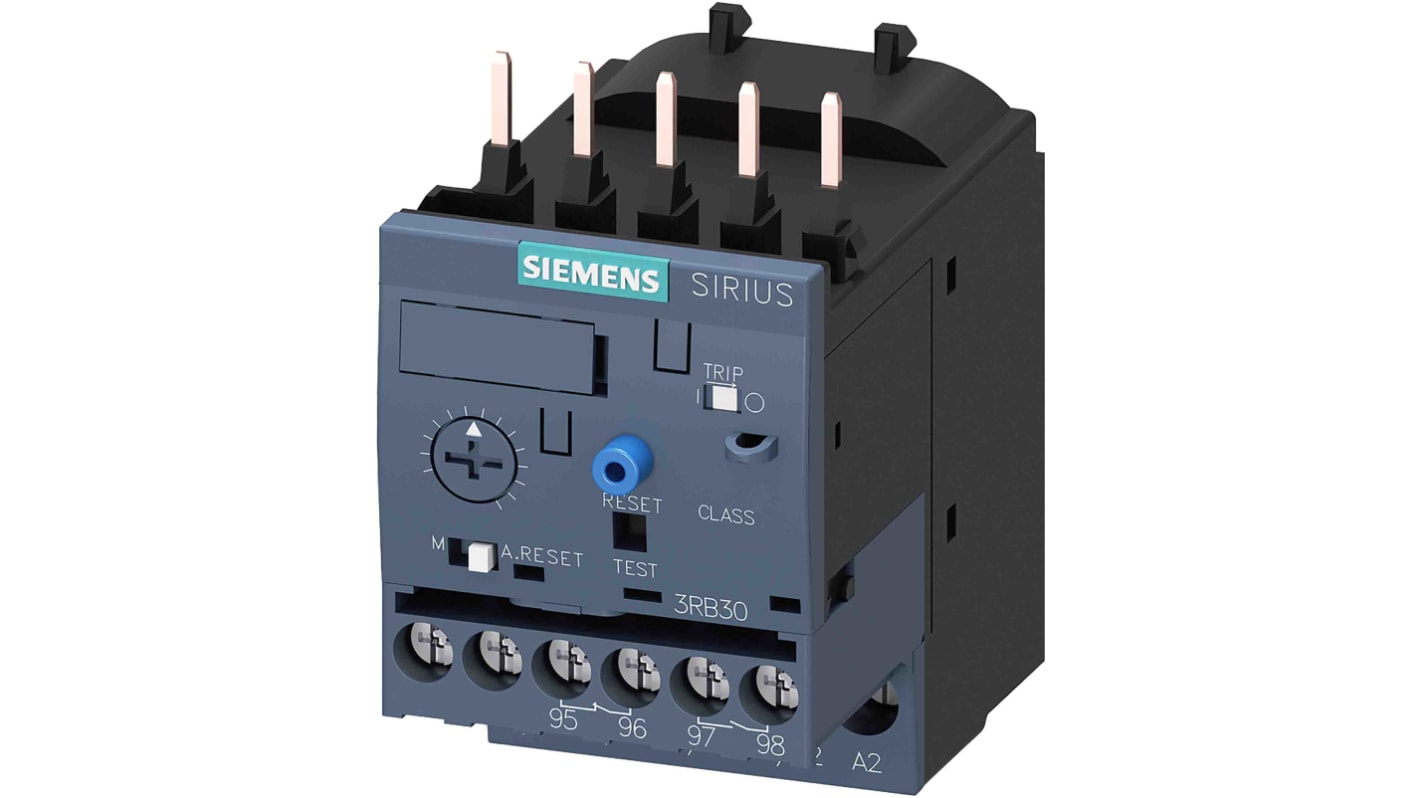

Siemens, 3RB Overload Relay 1 NO/1 NC, 16A, 4 A F.L.C, 16A Contact Rating 3P

RS 제품 번호:: 213-0545
제조사 부품 번호:: 3RB3016-2TB0
제조업체:: Siemens

Siemens, 3RB Overload Relay 1 NO/1 NC, 16A, 4 A F.L.C, 16A Contact Rating 3P

Subtotal (1 unit)*

₩322,360.00

1 개 단위 배송 준비 완료
추가로 2026년 10월 01일 부터 2 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩322,360.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 213-0545
제조사 부품 번호:: 3RB3016-2TB0
제조업체:: Siemens

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Siemens
	FLC Motor Rating	16, 4A
	Product Type	Overload Relay
	Relay Contact Current	16A
	Mount Type	Direct
	Series	3RB
	Pole and Throw Configuration	3P
	Terminal Type	Screw
	Normal State Configuration	1 NO/1 NC
	IP Rating	IP20
	Adjustable Current Range	4 → 16 A
	Minimum Operating Temperature	-25°C
	Width	45mm
	Number of Auxiliary Contacts	2
	Contact Voltage	690V
	Length	79mm
	Maximum Operating Temperature	60°C
	Standards/Approvals	IEC 61000-4-6, IEC 61000-4-5, IEC 61000-4-4, IEC 60529, IEC 61000-4-2, IEC 61000-4-3, EAC Approved, UL Approved, IEC 60068-2-27, CE Approved, IEC 81346-2, CCC approved, CSA Approved
	Depth	73mm

	모두 선택
	브랜드 Siemens
	FLC Motor Rating 16, 4A
	Product Type Overload Relay
	Relay Contact Current 16A
	Mount Type Direct
	Series 3RB
	Pole and Throw Configuration 3P
	Terminal Type Screw
	Normal State Configuration 1 NO/1 NC
	IP Rating IP20
	Adjustable Current Range 4 → 16 A
	Minimum Operating Temperature -25°C
	Width 45mm
	Number of Auxiliary Contacts 2
	Contact Voltage 690V
	Length 79mm
	Maximum Operating Temperature 60°C
	Standards/Approvals IEC 61000-4-6, IEC 61000-4-5, IEC 61000-4-4, IEC 60529, IEC 61000-4-2, IEC 61000-4-3, EAC Approved, UL Approved, IEC 60068-2-27, CE Approved, IEC 81346-2, CCC approved, CSA Approved
	Depth 73mm

Datasheet - 3RB3016-2TB0

COO (Country of Origin):: CZ

The Siemens SIRIUS 3RB series is a solid-state overload relay for inverse-time delayed protection of loads with normal and heavy starting against excessive temperature rises due to overload, phase unbalance or phase failure which has a current rating up to 16 A. It has manual or automatic reset switch functionality. It has a size S00. It can be mounted with contactor mounting. The type of electrical connection for main circuit and for auxiliary circuit is through screw-type terminal. Due to the wide current setting ranges and various tripping characteristics, complete series of motors are covered with just a few types. It has low heat loss which makes it energy-efficient and help to reduce the temperature rise in the control cabinet.

Ambient operating temperature is -25 to +60 °C

Operating frequency is 50 to 60 Hz

Trip class is CLASS 20E

Siemens, 3RB Overload Relay 1 NO/1 NC, 16A, 4 A F.L.C, 16A Contact Rating 3P
