Bosch Rexroth Bracket, Connecting Component, Groove Size 8 to 10 mm²
- RS 제품 번호:
- 449-5632
- 제조사 부품 번호:
- 3842515547
- 제조업체:
- Bosch Rexroth
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩13,874.40
재고있음
- 354 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 5 | ₩13,874.40 |
| 6 - 11 | ₩13,479.60 |
| 12 + | ₩12,934.40 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 449-5632
- 제조사 부품 번호:
- 3842515547
- 제조업체:
- Bosch Rexroth
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Bosch Rexroth | |
| Connector Type | Bracket | |
| Product Type | Connecting Component | |
| Compatible Groove Size | 8 to 10 mm² | |
| Material | Die Cast Zinc | |
| Structural Element Type | Connector Bracket, Joint | |
| Product System | MGE | |
| Standards/Approvals | RoHS Status-Exempt, DIN 7991, DIN 7984 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Bosch Rexroth | ||
Connector Type Bracket | ||
Product Type Connecting Component | ||
Compatible Groove Size 8 to 10 mm² | ||
Material Die Cast Zinc | ||
Structural Element Type Connector Bracket, Joint | ||
Product System MGE | ||
Standards/Approvals RoHS Status-Exempt, DIN 7991, DIN 7984 | ||
제외
- COO (Country of Origin):
- DE

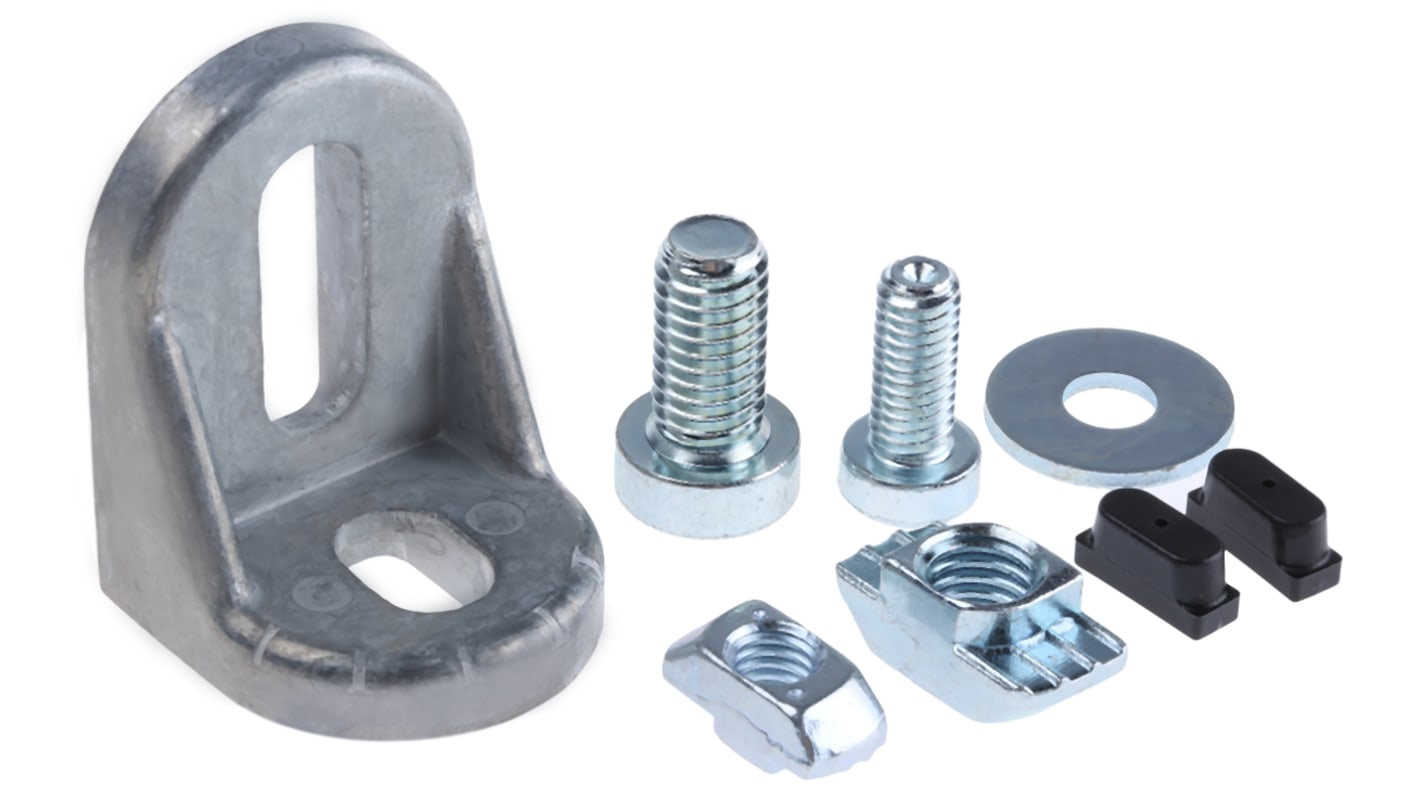

Bosch Rexroth Connecting Component, R Bracket Type, 25Nm Maximum Load Rating - MGE Series - 3842515547
To build modular structures that can take the strain, choose this Bosch Rexroth R bracket. Its right-angled shape is the starting place for a sturdy corner, making it a versatile option for many structures. There's no need to carry different components in your toolkit, as this unit fits in with both 8 and 10mm groove sizes for hassle-free building. The ability to bear torsional loads of up to 25Nm means this bracket rises to the challenge of heavy weights.
Features & Benefits
• Comes pre-finished to click onto your structure without extra preparation
• Durable die-cast zinc body resists corrosion to stay strong in damp conditions
• Helps dissipate static discharge, protecting your electronic components
Applications
• Fulfilment centres
• Chemical processing
• Retail spaces
Do I need to find screws to fit this bracket?
No, this component comes with fastening screws, so you can start assembling it straightaway.
Material Level
Material level for ergonomic accessibility of parts, measuring instruments and other aids
Discharge resistance 1x106 - 9x107 Ω in conjunction with a conductive mat
Bracket R 28 x 38 includes fasteners
Note
Top level shown uses angle adjustable bracket stock-no. 449-5632.
Lower level uses stock-no. 411-942 which includes a clamping handle for easier angle adjustment.
These brackets are available separately.
Lower level uses stock-no. 411-942 which includes a clamping handle for easier angle adjustment.
These brackets are available separately.
