Bosch Rexroth M8 Mitre Bracket, Connecting Component, Groove Size 8 to 10 mm²
- RS 제품 번호:
- 200-7315
- 제조사 부품 번호:
- 3842529020
- 제조업체:
- Bosch Rexroth
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
일시적 품절
- RS 제품 번호:
- 200-7315
- 제조사 부품 번호:
- 3842529020
- 제조업체:
- Bosch Rexroth
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Bosch Rexroth | |
| Connector Type | Mitre Bracket | |
| Product Type | Connecting Component | |
| Compatible Groove Size | 8 to 10 mm² | |
| Thread Size | M8 | |
| Material | Aluminium, Die Cast Aluminium | |
| Structural Element Type | Connector Bracket & Joint | |
| Length | 35mm | |
| Product System | MGE | |
| Standards/Approvals | No | |
| Series | T-Slot Stone | |
| 모두 선택 | ||
|---|---|---|
브랜드 Bosch Rexroth | ||
Connector Type Mitre Bracket | ||
Product Type Connecting Component | ||
Compatible Groove Size 8 to 10 mm² | ||
Thread Size M8 | ||
Material Aluminium, Die Cast Aluminium | ||
Structural Element Type Connector Bracket & Joint | ||
Length 35mm | ||
Product System MGE | ||
Standards/Approvals No | ||
Series T-Slot Stone | ||
제외

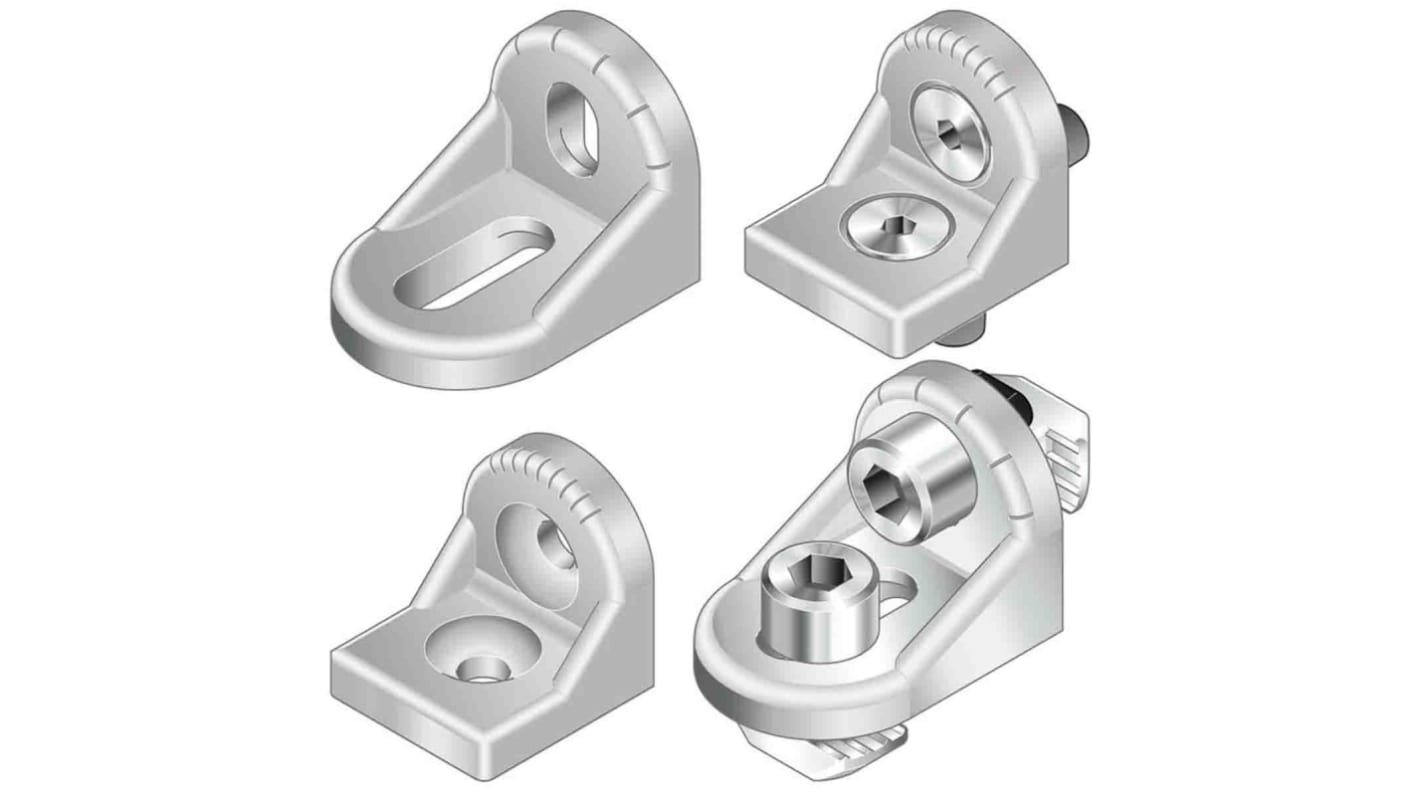

The Bosch Rexroth angle piece for connecting profiles at any angle. It has centering lugs for rapid, precise assembly and protection against turning. It has centering lugs that can be easily broken off for assembly on plates or at right angles to the slot.
No obtruding edges due to rounding of bracket
Version designLINE with special silver paint
Profile finishing is not required
