STMicroelectronics Omni-Directional, Surface Mount Microphone Condenser 1dB
- RS 제품 번호:
- 233-3019P
- 제조사 부품 번호:
- MP23DB01HPTR
- 제조업체:
- STMicroelectronics
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal 10 units (supplied on a continuous strip)*
₩32,110.40
일시적 품절
- 4,175 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 10 - 95 | ₩3,211.04 |
| 100 - 245 | ₩3,143.36 |
| 250 - 495 | ₩3,094.48 |
| 500 + | ₩3,034.32 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 233-3019P
- 제조사 부품 번호:
- MP23DB01HPTR
- 제조업체:
- STMicroelectronics
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | STMicroelectronics | |
| Sensitivity | 1dB | |
| Product Type | Microphone Condenser | |
| Directivity | Omni-Directional | |
| Standard Operating Voltage | 3.6V dc | |
| Mount Type | Surface Mount | |
| Signal to Noise Ratio | 65.5dB | |
| Maximum Frequency | 3.3MHz | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | No | |
| Series | MP23DB01HP | |
| Height | 0.98mm | |
| Minimum Frequency | 1.5MHz | |
| 모두 선택 | ||
|---|---|---|
브랜드 STMicroelectronics | ||
Sensitivity 1dB | ||
Product Type Microphone Condenser | ||
Directivity Omni-Directional | ||
Standard Operating Voltage 3.6V dc | ||
Mount Type Surface Mount | ||
Signal to Noise Ratio 65.5dB | ||
Maximum Frequency 3.3MHz | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals No | ||
Series MP23DB01HP | ||
Height 0.98mm | ||
Minimum Frequency 1.5MHz | ||

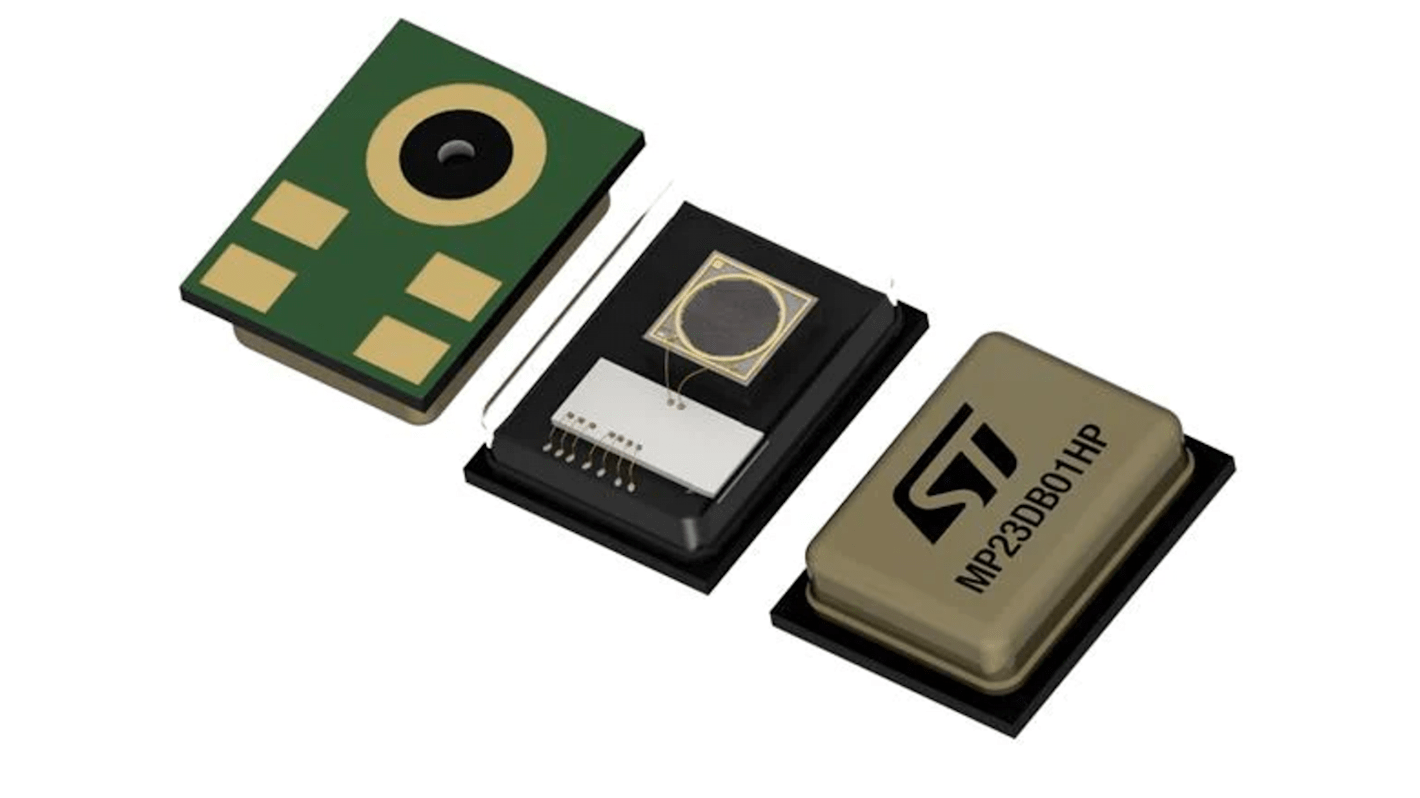

The STMicroelectronics MP23DB01HP is an ultra-compact, low-power, omnidirectional, digital MEMS microphone built with a capacitive sensing element and an IC Interface with stereo operation capability. The sensing element, capable of detecting acoustic waves, is manufactured using a specialized silicon micromachining process dedicated to producing audio sensors. The IC Interface is manufactured using a CMOS process that allows designing a dedicated circuit able to provide a digital signal externally in PDM format.
Omnidirectional digital microphone
Very low distortion / very high AOP
135 dBSPL acoustic overload point
Multiple performance modes (sleep, low-power, performance)
Typ. current consumption
2 μA (sleep mode)
285 μA (low-power mode)
800 μA (performance mode)
Sensitivity matching
PDM single-bit output with option for stereo configuration
RHLGA package
Bottom-port design
SMD-compliant
EMI-shielded
ECOPACK, RoHS and “Green” compliant
