Silicon Labs EFR32xG23 Pro Kit EFR32xG23 RF Transceiver for Wireless IoT devices 868 → 915MHz xG23-PK6068A

본 제품군 열람하기

Subtotal (1 unit)*

₩354,098.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 23 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩354,098.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
265-5376
제조사 부품 번호:
xG23-PK6068A
제조업체:
Silicon Labs
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Silicon Labs

RF Technology

RF Transceiver

Classification

Radio Board

Technology

IoT

For Use With

Wireless IoT devices

Featured Device

EFR32xG23

Frequency

868 → 915MHz

Kit Name

EFR32xG23 Pro Kit

COO (Country of Origin):
NO

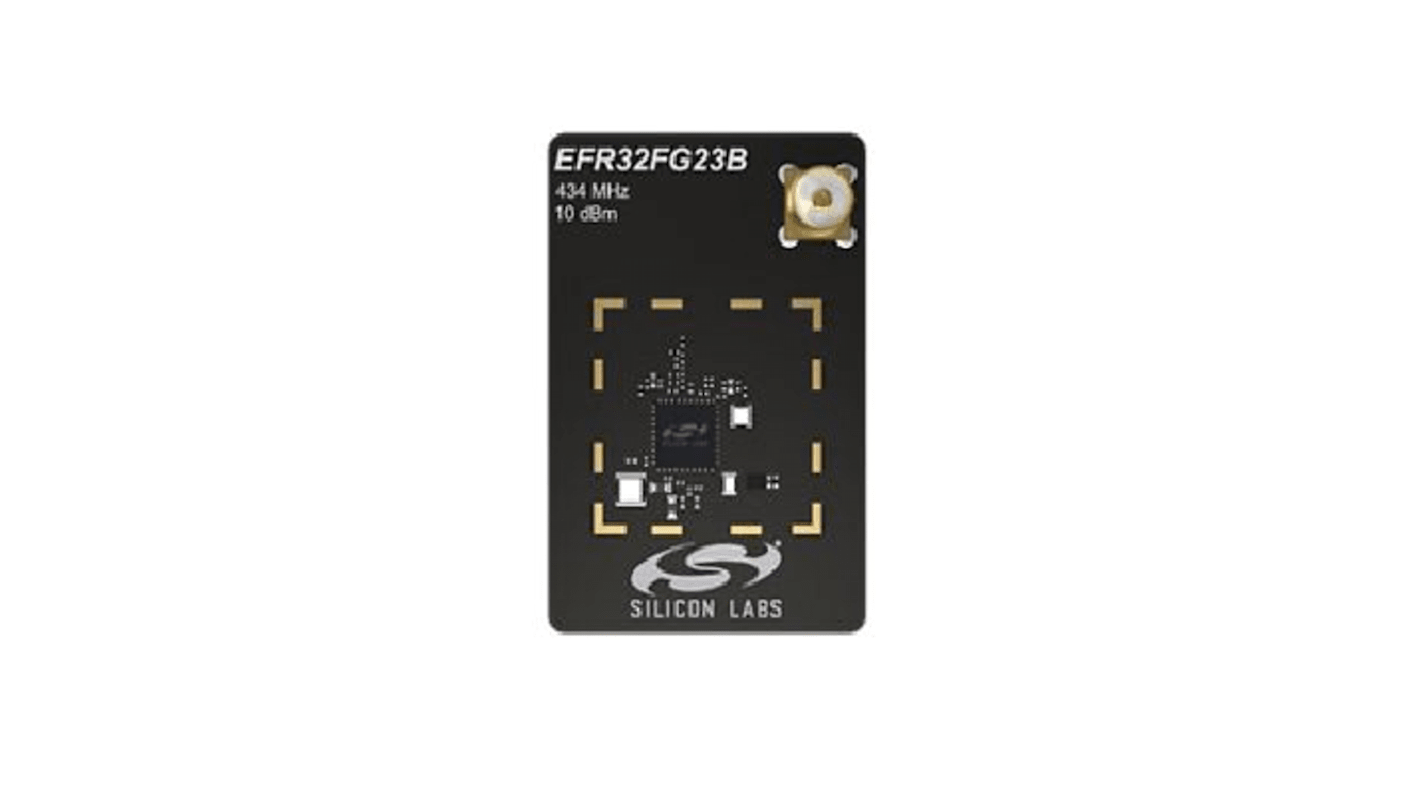

The Silicon Labs pro kit is designed to support the development of Wireless IoT devices based on Sub-GHz wireless protocols for proprietary, connect, Wi-SUN, sidewalk and WM-BUS. The pro kit includes a radio board that provides a complete reference design for this wireless SoC, with the matching network for +20 dBm covering 868 to 915 MHz. The WSTK main board contains an onboard J-Link debugger with a packet trace interface and a virtual COM port, enabling application development and debugging of the attached radio board as well as external hardware through an expansion header.

SMA connector
Advanced Energy Monitor
SEGGER J-Link on-board debugger
External device debugging
Ethernet and USB connectivity
Low power 128 x 128 pixel Memory LCDTFT
User LEDs / pushbuttons
20-pin 2.54 mm EXP header
Breakout pads for Wireless SoC
