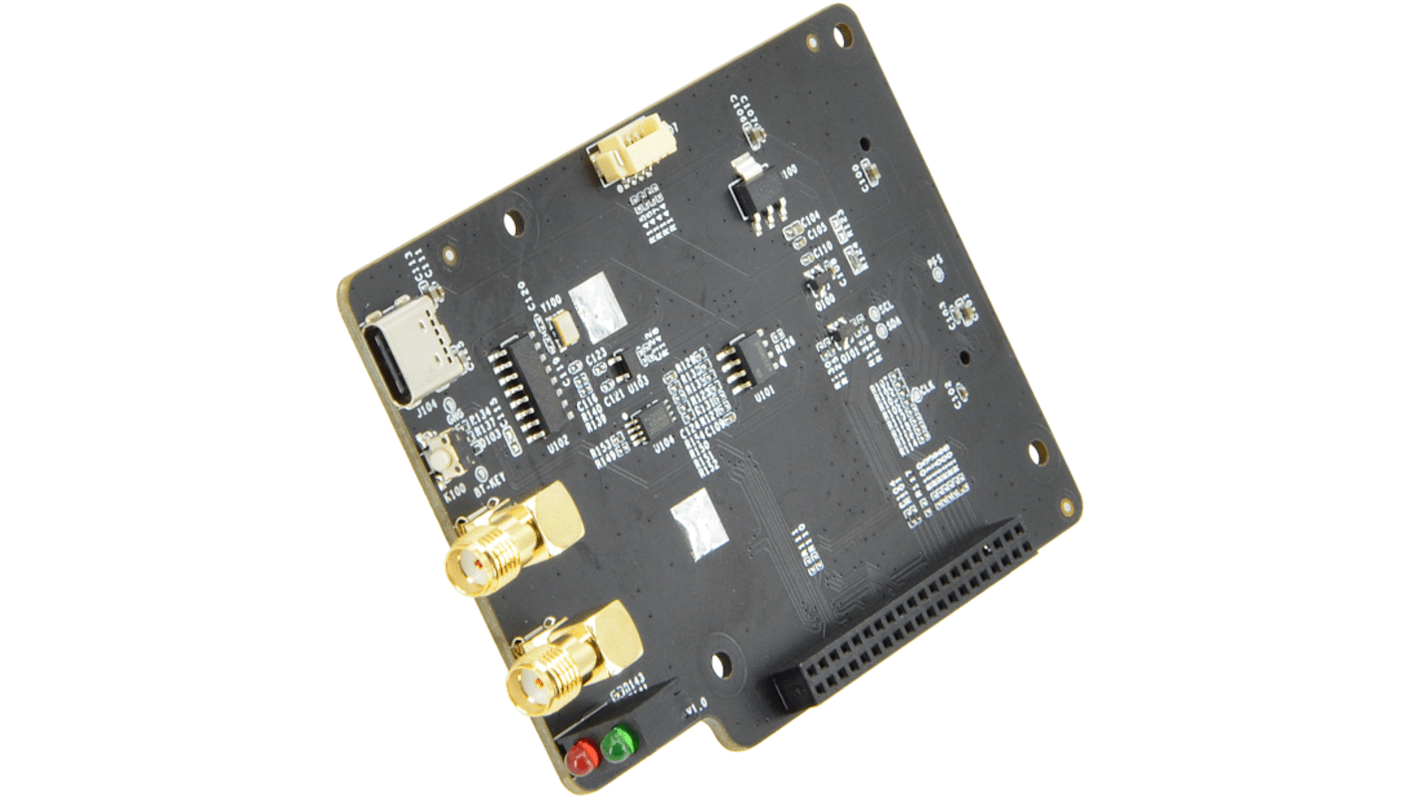

Polyhex DEBIX Model A LoRa Board LoRa, WiFi LoRa Modules for DEBIX Model A EMB-AS-03

The DEBIX Model A LoRa add-on board provides extra network capabilities to the DEBIX Model A single-board computer. With an integrated mini PCIe interface for the LoRa Module, this add-on board enables long-range transmissions with low power consumption. The board also features an integrated LoRa Antenna, Wi-Fi and a Bluetooth Pairing Button. Launched in collaboration between OKdo Technology and Polyhex Technology, this new-to-market add-on board brings LoRa connectivity capability for your industrial applications. 



I/O Interfaces 

USB: 1 x USB Type-C Debug (USB to Serial) 

Mini PCIe: 1 x Mini PCIe (LoRa Module) 

Buttons: 1 x Bluetooth Pairing Button 

LED: 1 x Operation Indicator, 1 x Pairing Indicator 

External Antenna: 1 x LoRa Antenna Connector, 1 x Wi-Fi Antenna Connector 

EEPROM: 1 x 2Kbit EEPROM 

Clipper Chip: 1 x Secure Element, eg.ATECC608
