Adafruit USB Software Defined Radio (SDR) Dongle 24MHz 1497

본 제품군 열람하기
현재 비가용
죄송합니다. 언제 재입고될지 모릅니다.
RS 제품 번호:
124-5461
제조사 부품 번호:
1497
제조업체:
ADAFRUIT INDUSTRIES
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

ADAFRUIT INDUSTRIES

RF Technology

Software Defined Radio (SDR)

Kit Classification

Dongle

Kit Name

USB

Frequency

24MHz → 1850MHz

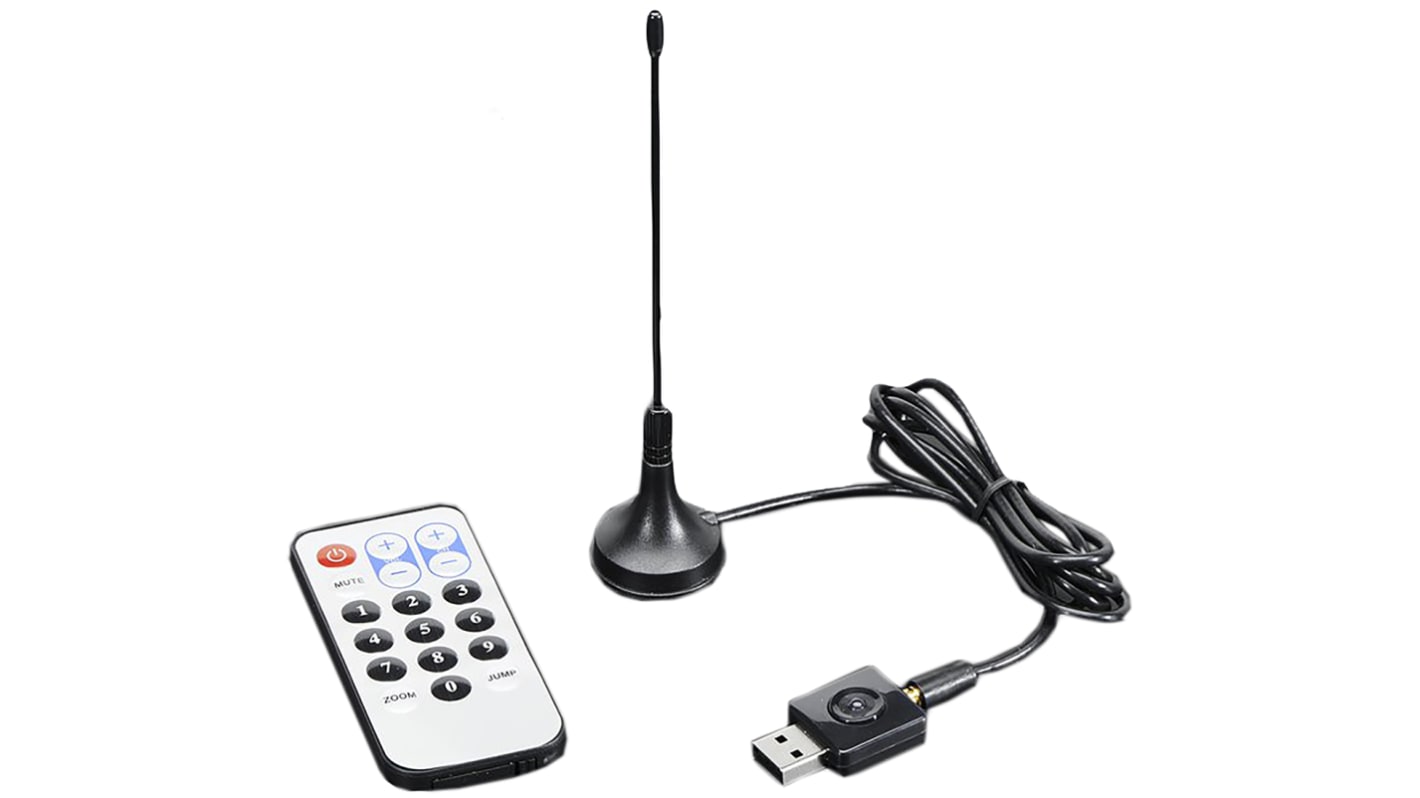

Adafruit Software Defined Radio Receiver USB Stick


This USB stick and aerial brings radio to your computer. Listen in to radio signals across a wide frequency range from 24 MHz to 1850 MHz. This covers FM radio, AM signals (although not AM radio) CW (Morse Code) and other unencrypted radio signals.
The USB stick has an RTL2832+R820T module with an MCX RF connector and comes with a basic 'DVB-T' antenna. If your country has DVB-T broadcasts then you can also tune into DVB TV signals. Note: DVB TV is not available in the US. The antenna works for basic experimentation but a higher quality aerial is required for a consistent a TV signal.

Antenna Length: 120.65 mm (4.75")
Wire Length: 1168.4 mm (46")
USB Dongle: 22.24 x 23.1 x 9.9 mm / (0.87" x 0.9" 0.38")

Note

In some countries, listening in to frequencies used by emergency services is illegal.
