Phoenix Contact Female Crimp Crimp Contact, Contact Size 2 mm, Wire Size 1mm², 2.5 mm²

RS 제품 번호:: 802-7286
Distrelec 제품 번호:: 304-09-781
제조사 부품 번호:: 1605643
제조업체:: Phoenix Contact

Phoenix Contact Female Crimp Crimp Contact, Contact Size 2 mm, Wire Size 1mm², 2.5 mm²

Subtotal (1 unit)*

₩4,920.00

추가로 2026년 9월 21일 부터 3 개 단위 배송
추가로 2026년 9월 21일 부터 297 개 단위 배송
추가로 2026년 10월 09일 부터 600 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩4,920.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 802-7286
Distrelec 제품 번호:: 304-09-781
제조사 부품 번호:: 1605643
제조업체:: Phoenix Contact

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Phoenix Contact
	Product Type	Crimp Contact
	Gender	Female
	Contact Size	2 mm
	Wire Size	1, 2.5mm²
	Series	SF-7QS2000
	For Use With	Pluscon P70 Series Connectors
	Contact Type	Crimp
	Length	25.5mm
	Contact Plating	Nickel Plated
	Contact Material	Copper Zinc Alloy
	Termination Type	Crimp
	Standards/Approvals	RoHS II

	모두 선택
	브랜드 Phoenix Contact
	Product Type Crimp Contact
	Gender Female
	Contact Size 2 mm
	Wire Size 1, 2.5mm²
	Series SF-7QS2000
	For Use With Pluscon P70 Series Connectors
	Contact Type Crimp
	Length 25.5mm
	Contact Plating Nickel Plated
	Contact Material Copper Zinc Alloy
	Termination Type Crimp
	Standards/Approvals RoHS II

COO (Country of Origin):: DE

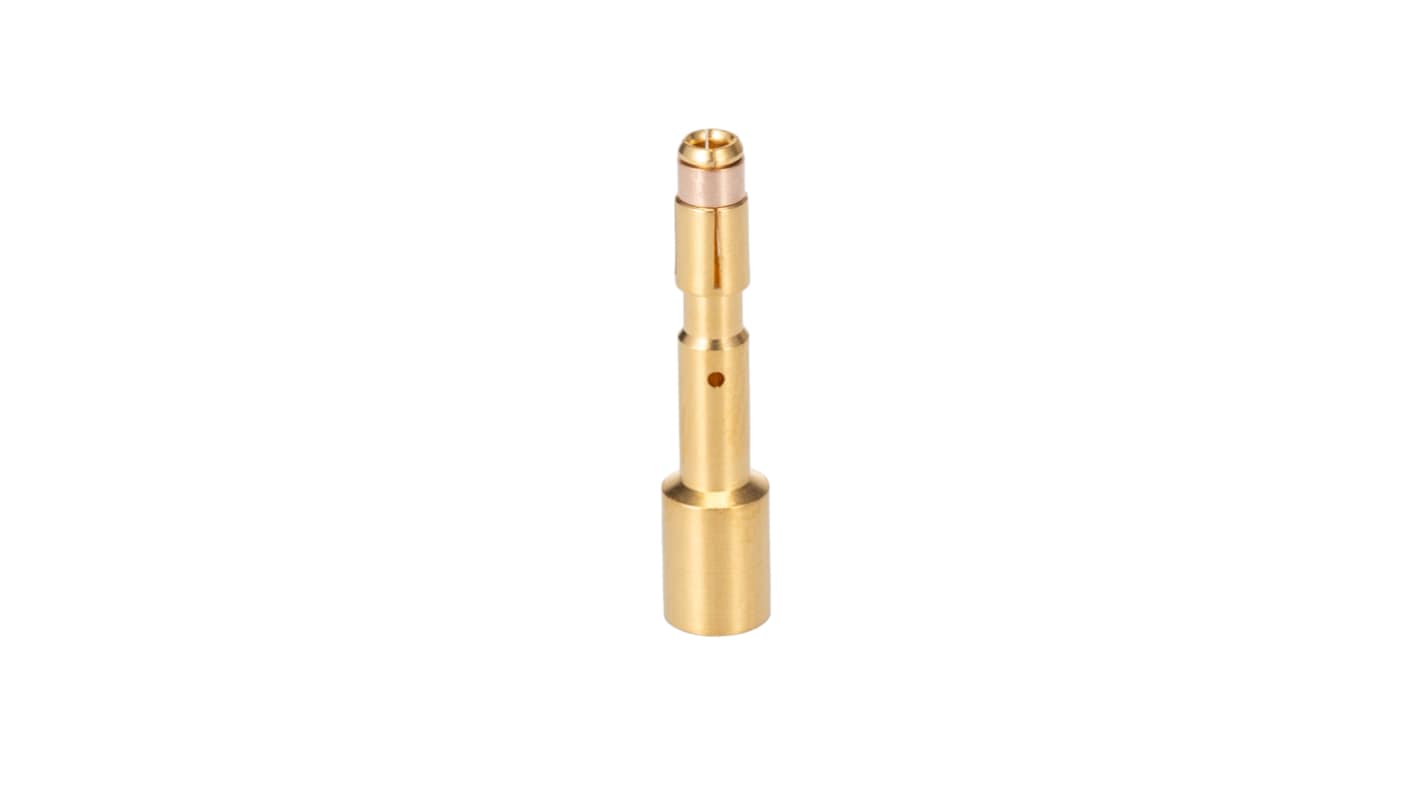

Phoenix Contact SF-7QS2000 Series Crimp Contact, 2mm Contact size, CuZn Contact - 1605643

This crimp contact is intended for use with Pluscon P70 connectors, ensuring a dependable electrical connexion. With a contact diameter of 2mm and a length of 25.5mm, it is made from CuZn contact material, providing durability and effective conductivity. The crimp connection method is compatible with conductor cross-sections ranging from 1mm² to 2.5mm².

Features & Benefits

• Vibration-resistant assembly enhances stability

• High tensile strength ensures robust connections

• Low contact resistance optimises electrical performance

• Nickel-plated with gold coating for corrosion resistance

• Simple monitoring during production facilitates quality control

Applications

• Used with Pluscon P70 connectors for secure connections

• Suitable for automotive crimp connections requiring durability

• Effective for electrical control systems in automation projects

• Common in various electronic

Can it handle high tensile strength requirements?

Yes, it is designed to provide high tensile strength for secure connections.

Will it maintain performance in varying temperatures?

Yes, the crimp connection is temperature-resistant to ensure reliability.

Is it compliant with EU RoHS substance requirements?

Yes, it meets EU RoHS compliance standards without exemptions.

How many insertion cycles can I expect?

The SF-7QS2000 is rated for up to 100 insertion and withdrawal cycles.
