제조사부품번호

HARTING Male Crimp Circular Connector Contact, Contact Size 1.04 mm, Wire Size 20AWG, 24 AWG

RS 제품 번호:: 755-3845
Distrelec 제품 번호:: 304-45-293
제조사 부품 번호:: 09670008576
제조업체:: HARTING

HARTING Male Crimp Circular Connector Contact, Contact Size 1.04 mm, Wire Size 20AWG, 24 AWG

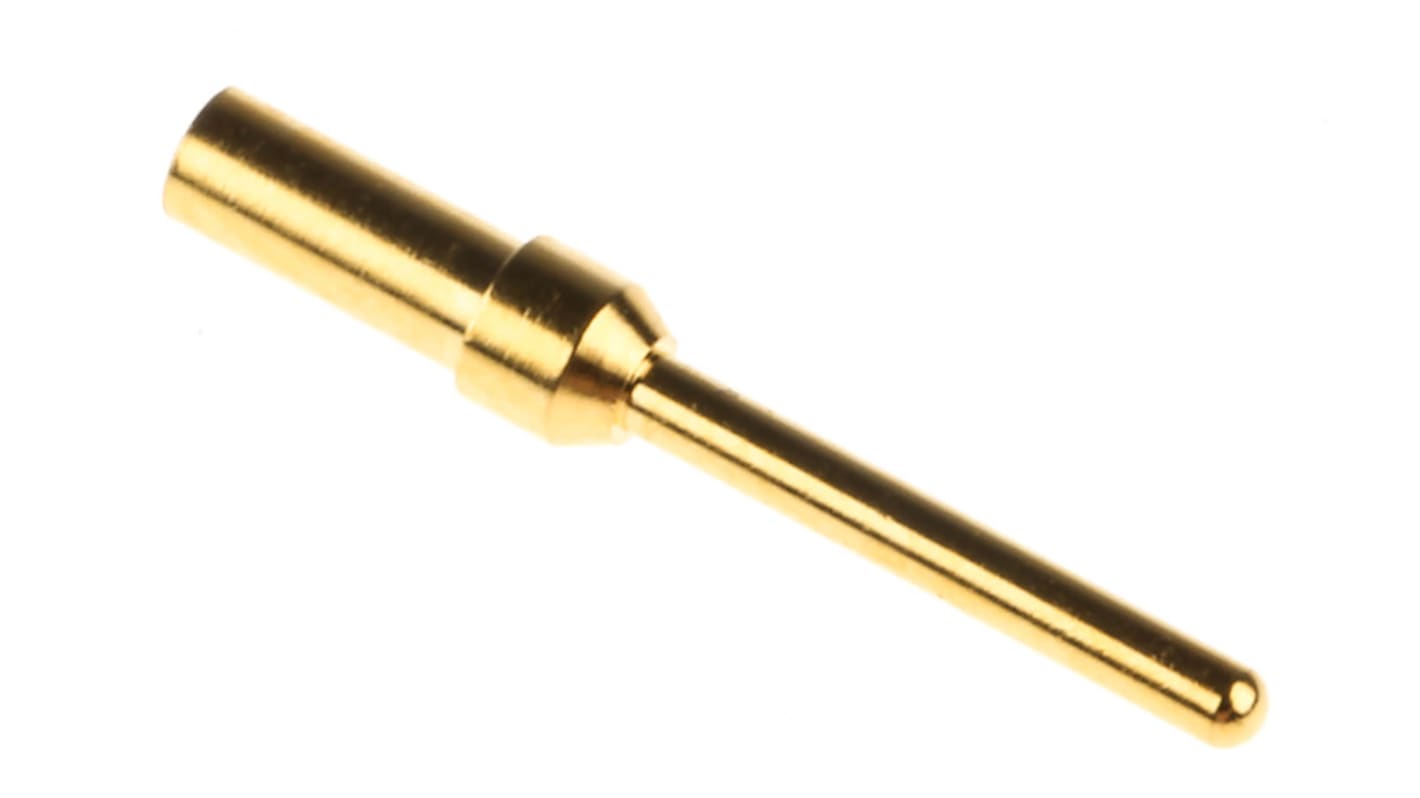

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

View bulk pricing options

Subtotal (1 Bag of 25 units)*

₩29,300.00

525 개 단위 배송 준비 완료
추가로 2026년 9월 28일 부터 5,050 개 단위 배송
추가로 2026년 9월 28일 부터 1,025 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당	Per Bag*
25 - 100	₩1,172.00	₩29,320.00
125 +	₩1,138.00	₩28,440.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 755-3845
Distrelec 제품 번호:: 304-45-293
제조사 부품 번호:: 09670008576
제조업체:: HARTING

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	HARTING
	Product Type	Circular Connector Contact
	Gender	Male
	Contact Size	1.04 mm
	Wire Size	20, 24AWG
	Series	D-Sub Standard
	For Use With	D-Sub Connector
	Contact Type	Signal
	Length	14.2mm
	Contact Plating	Gold over Nickel
	Minimum Operating Temperature	-40°C
	Contact Material	Copper Alloy
	Termination Type	Crimp
	Maximum Contact Resistance	10mΩ
	Maximum Operating Temperature	85°C
	Standards/Approvals	RoHS

	모두 선택
	브랜드 HARTING
	Product Type Circular Connector Contact
	Gender Male
	Contact Size 1.04 mm
	Wire Size 20, 24AWG
	Series D-Sub Standard
	For Use With D-Sub Connector
	Contact Type Signal
	Length 14.2mm
	Contact Plating Gold over Nickel
	Minimum Operating Temperature -40°C
	Contact Material Copper Alloy
	Termination Type Crimp
	Maximum Contact Resistance 10mΩ
	Maximum Operating Temperature 85°C
	Standards/Approvals RoHS

Harting D-Sub Standard Series Circular Connector Contact, 1.04mm Contact size, 14.2mm Length - 9670008576

This circular connector contact is a male signal contact designed for use within D-Sub connector assemblies, providing a reliable electrical Interface for control and signal cabling in industrial systems. It is intended for crimp termination to stranded conductors and suits applications where Compact signal connections are required under defined environmental conditions.

Features & Benefits

• Gold over nickel plating delivers improved corrosion resistance and conductivity
• Copper alloy contact material provides stable electrical performance
• Maximum contact resistance of 10mΩ ensures minimal signal loss
• Crimp termination accepts 24/20 AWG conductors for secure connections
• Operates between -40 to 85°C for extended temperature range compatibility

Applications

• Suitable for signal harnesses in automation control cabinets
• Ideal for interconnections in test and measurement equipment
• Used with D-Sub assemblies in industrial communication racks
• Can be used for retrofitting existing D-Sub connector looms
• Used for field wiring where crimp terminations are specified

What wire sizes can be terminated with this contact?

It accepts 24 AWG and 20 AWG conductors using a crimp-style termination designed to form a gas-tight joint.

How does the plating affect connector performance?

The gold-over-nickel finish minimises oxidation at the contact Interface while the nickel underlayer provides mechanical adhesion for the gold.

What operational temperatures are suitable for this contact?

The component is rated to function across a range from -40 to 85°C without performance degradation within that span.

What mechanical length should be allowed for panel and connector assembly?

The contact has a physical length of 14.2mm to be accommodated when arranging connector inserts and backshells.
