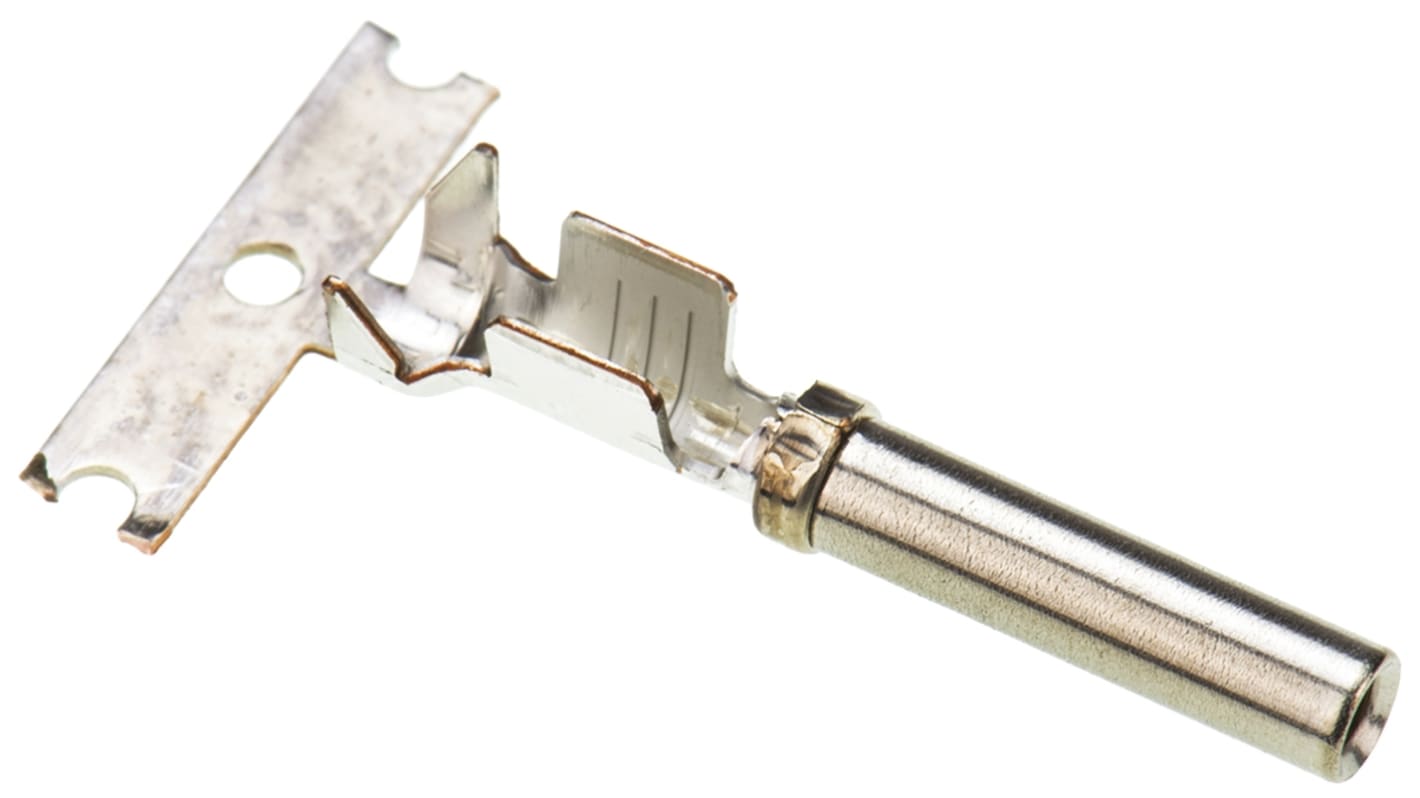

Name: TE Connectivity Female Crimp Circular Connector Contact, Wire Size 18 → 14 AWG
Brand: TE Connectivity
SKU: 726-6799
Price: 924.96 KRW
Availability: BackOrder

TE Connectivity AMPSEAL 16 Socket Contacts and Pin Contacts

1.58 mm pin and socket contacts for the AMPSEAL 16 automotive connector system. These AMPSEAL 16 pin and receptacle crimp contacts have a lanceless design and are constructed from a high performance alloy base metal that allows increased terminal and beam strength, greater resistance to stress relaxation along with increased current carrying ability due to lower T-rise (20%). These AMPSEAL 16 pin and socket crimp contacts also have a vibration performance of up to 35 G's.

For these production packs, non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.

TE Connectivity - AMPSEAL 16 Connector System

수량	한팩당	한팩당**
10 - 990	₩924.96	₩9,249.60
1000 - 1990	₩911.80	₩9,118.00
2000 +	₩891.12	₩8,911.20

모두 선택	제품 정보	값
	브랜드	TE Connectivity
	Gender	Female
	Wire Size	18 → 14 AWG
	Termination Method	Crimp
	Series	Ampseal
	For Use With	AMPSEAL 16 Connector
	Current Rating	13A
	Length	21.59mm
	Contact Plating	Gold
	Contact Material	Copper Alloy
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	+125°C

	모두 선택
	브랜드 TE Connectivity
	Gender Female
	Wire Size 18 → 14 AWG
	Termination Method Crimp
	Series Ampseal
	For Use With AMPSEAL 16 Connector
	Current Rating 13A
	Length 21.59mm
	Contact Plating Gold
	Contact Material Copper Alloy
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature +125°C
