Bulgin Male Solder Circular Connector Contact, Wire Size 24AWG, 28 AWG
- RS 제품 번호:
- 426-1394
- Distrelec 제품 번호:
- 301-64-940
- 제조사 부품 번호:
- SA3180/1
- 제조업체:
- Bulgin
대량 구매 할인 받기
150개 더 담고 2% 할인 받기
View bulk pricing optionsSubtotal (1 Bag of 10 units)*
₩202,260.00
재고있음
- 추가로 2026년 11월 23일 부터 2,800 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | Per Bag* | 절감 |
|---|---|---|---|
| 10 - 140 | ₩20,226.00 | ₩202,260.00 | - |
| 150 - 490 | ₩19,718.00 | ₩197,180.00 | 2% |
| 500 - 990 | ₩19,222.00 | ₩192,220.00 | 4% |
| 1000 + | ₩18,748.00 | ₩187,480.00 | 7% |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 426-1394
- Distrelec 제품 번호:
- 301-64-940
- 제조사 부품 번호:
- SA3180/1
- 제조업체:
- Bulgin
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Bulgin | |
| Product Type | Circular Connector Contact | |
| Gender | Male | |
| Wire Size | 24AWG, 28AWG | |
| Current | 1A | |
| Series | Buccaneer 400 / Buccaneer 4000 | |
| For Use With | Buccaneer 400 / 4000 Series Circular Connectors | |
| Contact Type | Signal | |
| Length | 80mm | |
| Contact Plating | Gold | |
| Voltage | 50V ac, 50V ac | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | Solder | |
| Contact Material | Copper Alloy | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 Bulgin | ||
Product Type Circular Connector Contact | ||
Gender Male | ||
Wire Size 24AWG, 28AWG | ||
Current 1A | ||
Series Buccaneer 400 / Buccaneer 4000 | ||
For Use With Buccaneer 400 / 4000 Series Circular Connectors | ||
Contact Type Signal | ||
Length 80mm | ||
Contact Plating Gold | ||
Voltage 50V ac, 50V ac | ||
Minimum Operating Temperature -40°C | ||
Termination Type Solder | ||
Contact Material Copper Alloy | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- TN

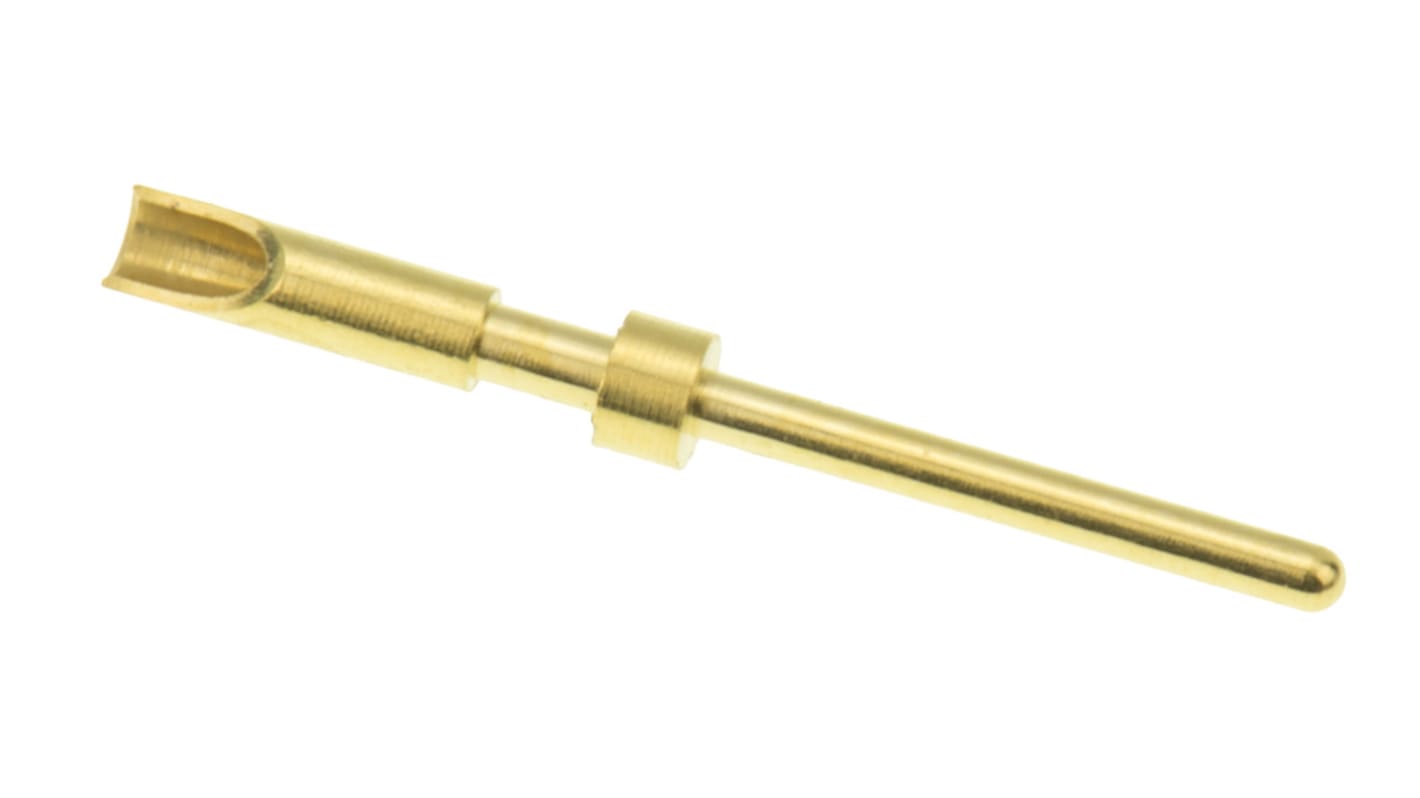

Bulgin Pin Contact
The Bulgin Buccaneer 400 series male circular connector has a wire size of 24AWG to 28AWG. This pin contact connector has a current rating of up to 1A per contact. The contact is made of copper alloy and has gold contact plating.
Features and Benefits
Cable mount
Solder termination
Operating temperature is between -400C to 800C
