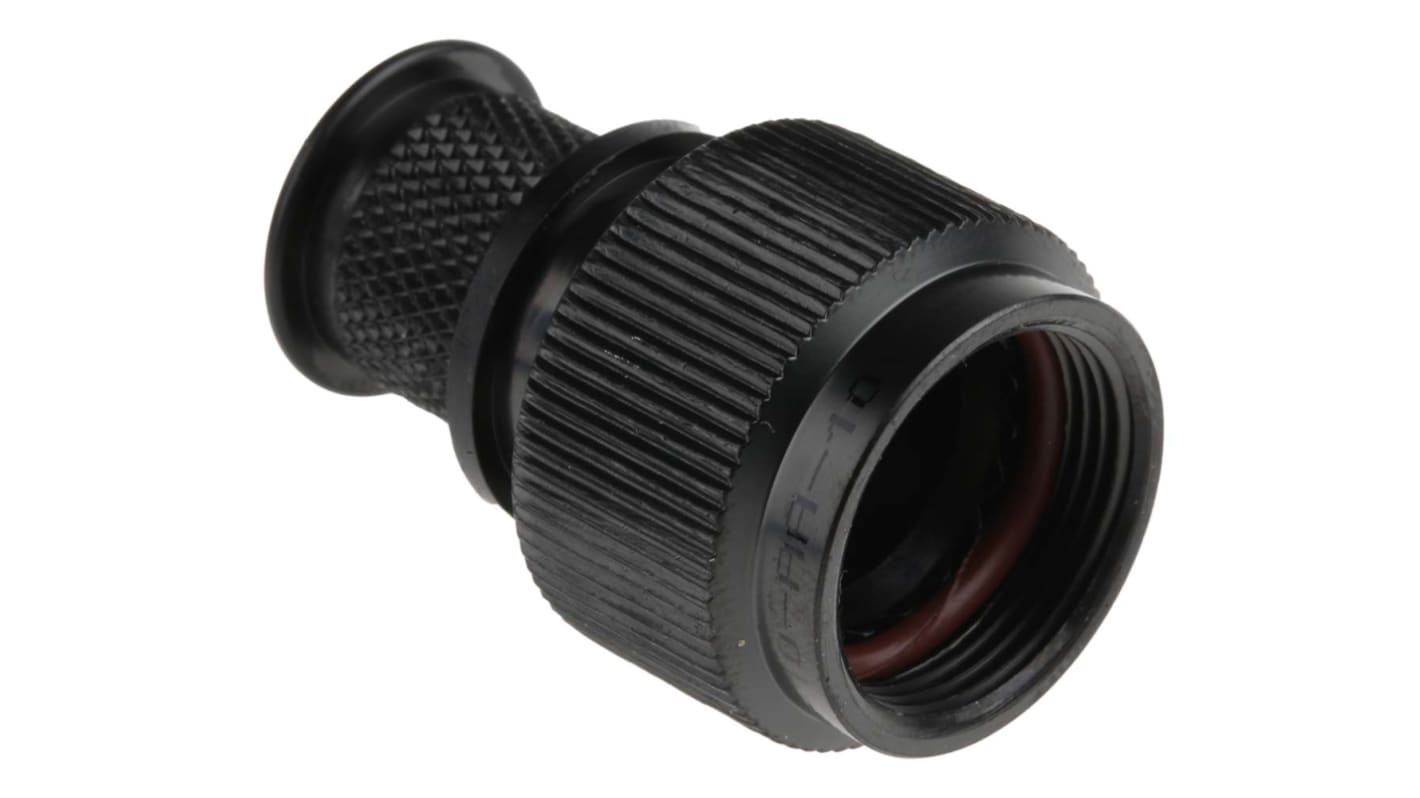

Amphenol Limited, 5003Size 13 Straight Circular Connector Backshell, For Use With MIL-DTL-38999 Black Zinc Connectors

본 제품군 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩246,881.60

Add to Basket
수량 선택 또는 입력
재고있음
  • 20 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 4₩246,881.60
5 - 24₩237,011.60
25 +₩227,122.80

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
823-6282
제조사 부품 번호:
AIA-5003-13-00-00-10-AA-10
제조업체:
Amphenol Limited
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Amphenol Limited

For Use With

MIL-DTL-38999 Black Zinc Connectors

Shell Size

13

Body Orientation

Straight

Housing Material

Aluminium Alloy

Thread Size

M18 x 1

Length

1.431in

Series

5003

Amphenol MIL-DTL-38999 Series III Backshells.


The band backshells provide a full 360° shield termination.

Dual purpose spin coupling backshells may be used in conjunction with heatshrink boots or spring clips (for example, stock no. 241-1519) to terminate braided cable jacketing. The threaded coupling end rotates separately from the body so that cable is not twisted upon removal of backshell from the connector body. The mating interface of these backshells features anti-rotation teeth and a sealing 'O' ring.


Amphenol MIL-DTL-38999 Series III, Black Zinc Nickel


Amphenol's RoHS compliant plating alternative to Cadmium. Black Zinc Nickel plating is now offered on a wide variety of connectors and accessories. This conductive and non-reflective finish is approved for 500hrs salt spray endurance and is fast becoming the new defence industry standard.
