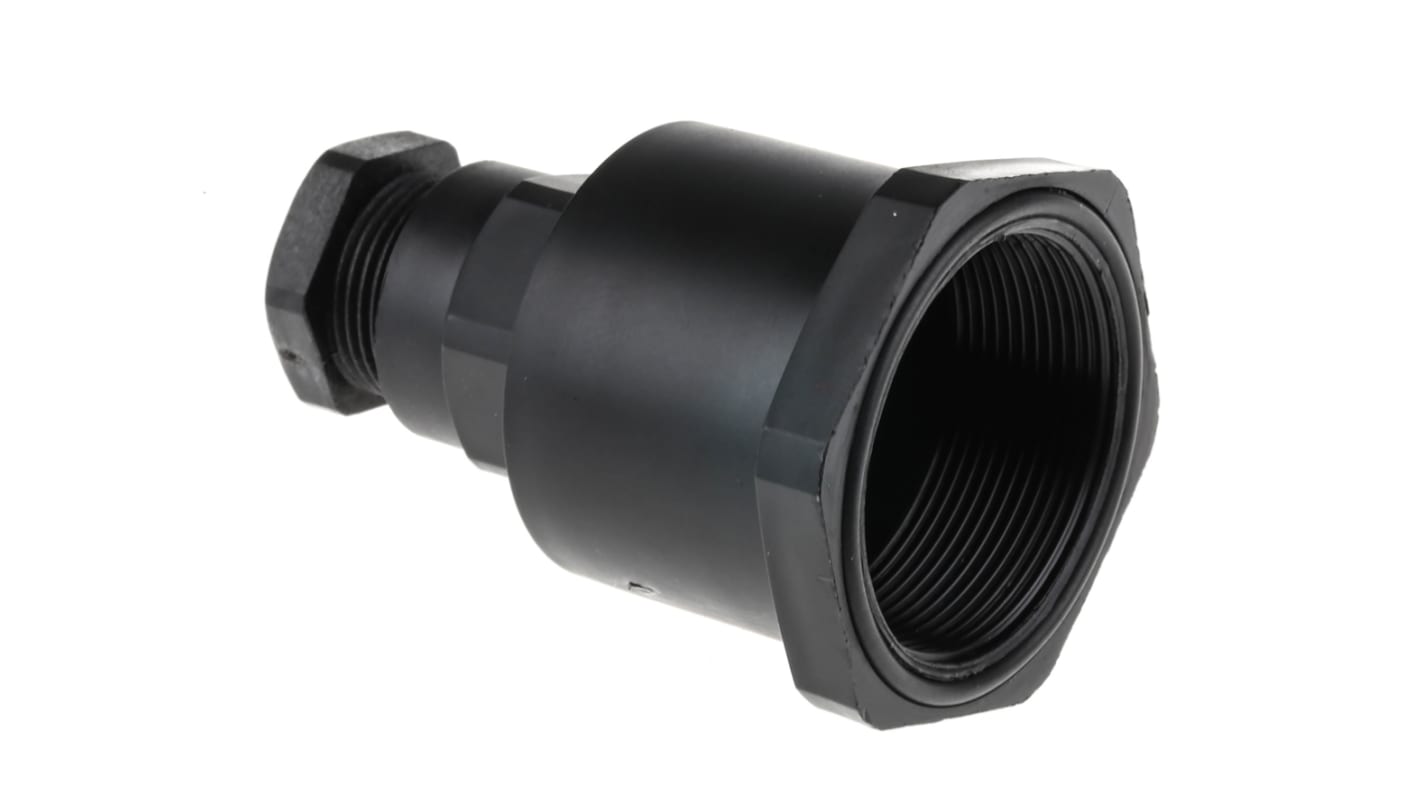

Bulgin Circular Connector Backshell

The Bulgin buccaneer series sealing backshell is a black, versatile an environmental seal to the rear panel of the connector. The in-line cable joiner electrical range are rated at 10A and 250Vac, with a maximum conductor accommodation capacity of 1.5mm2 (16 AWG), with glass filled polyamide body construction. The length of this backshell is 50mm. Standard cable acceptance between 6mm and 8mm. It is designed for joining multicore cables together in-line.
Maxi Buccaneer
Heavy-duty, rugged connectors, suitable for single and three-phase, applications in a variety of harsh environments such as sewage and waterworks, construction sites, gas/petrol chemical works, external lighting, HVAC equipment and general industrial uses. Based on the standard and Mini Buccaneer series, these connectors offer versatile configurations with interchangeable plug and socket inserts.

Bulkhead adaptor is suitable for 45° or 90° mounting with flange plugs and sockets
Easy assembly, no special tooling required
Field serviceable, screw termination
Leading earth pin
Positive locking keyways, cannot be mismated
Scoop-proof contacts
Water and dustproof
High noise immunity
EMI protection
operating temperature ranges between -20 °C and +70 °C

Construction sites
Power connectors
PC and peripheral

IP68 rated
•IP69 rated
