Phoenix Contact Straight Sensor Box Circular Connector Adapter 4 M12 Male 3 M8

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 Circular Connector Adapters 열람하기
대량 구매 할인 기용 가능

Subtotal (1 Box of 5 units)*

₩196,102.80

Add to Basket
수량 선택 또는 입력
일시적 품절
  • 2026년 3월 12일 부터 50 개 단위 배송
  • 추가로 2026년 4월 03일 부터 15 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
Per Box*
5 - 5₩39,220.56₩196,102.80
10 - 15₩38,235.44₩191,177.20
20 +₩37,652.64₩188,263.20

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
170-3843
제조사 부품 번호:
1683471
제조업체:
Phoenix Contact
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Phoenix Contact

Product Type

Sensor Box Circular Connector Adapter

Connector Size A

M12

Current

4A

Connector Gender A

Male

Connector Size B

M8

Connector Gender B

Female

Number of Ports A

1

Number of Contacts A

4

Number of Ports B

2

Number of Contacts B

3

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

90°C

IP Rating

IP65, IP67

Series

SAC-3P-M12Y/2XM 8FS

Voltage

60 V

Standards/Approvals

cULus, UL, RoHS, cUL, EAC

Orientation

Straight

Shell Plating

Nickel Plated

Contact Material

Copper Zinc Alloy

Length

40.7mm

Contact Plating

Nickel Gold Alloy

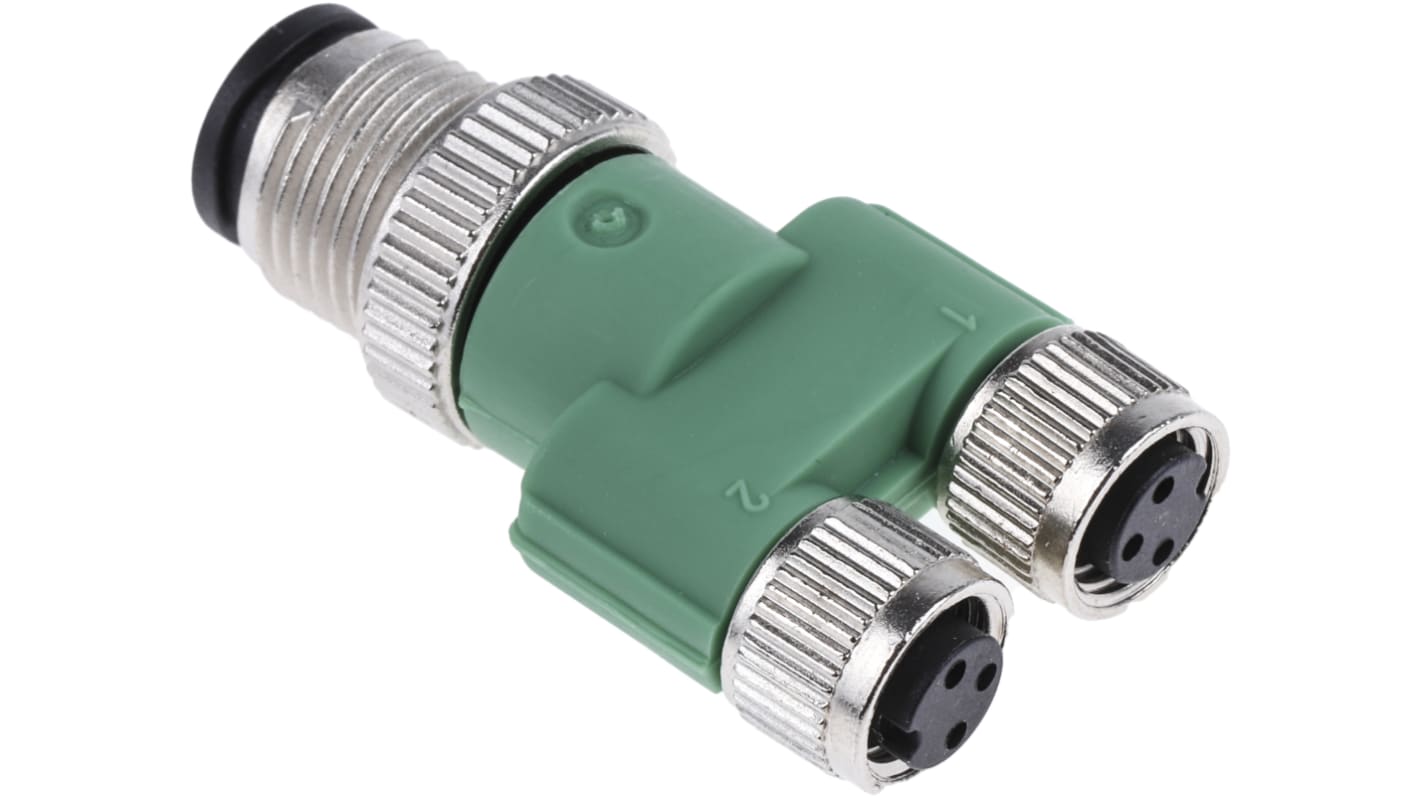

Phoenix Contact Y-Shaped Sensor Box Distributor, 3 Ports, 4A Current Rating - SAC-3P-M12Y/2XM 8FS - 1683471


Use this Y-shaped sensor box distributor from Phoenix Contact to link up to three connections within your electrical system. Once mated, the connection is secure and has an IP67 (ingress protection) rating, meaning it’s resistant to dust and strong jets of water. This ensures minimal disruption to your connection and workflow. The device is easy to install thanks to its surface mounting method, while the straight body orientation means it'll take up minimal space in your setup.

The contacts inside each of the three ports are MADE from a copper-zinc alloy for efficient electrical conduction and resilience to wear and tear. To give it a long life, the housing material is MADE from PBT, which performs well under mechanical stress.

• Current rating of 4A and voltage rating of 60V so it’s Ideal for low-powered systems

• Universal thread types of M12 to M8 for easy compatibility

• HB rating in UL 94 testing means it’s self-extinguishing for workplace fire safety

• Operates within a temperature range of -25°C to +90°C so it’s suitable for harsh industrial environments

M12 Y Connector


Phoenix contact M12 Speedcon connectors, these 3 ways Y or T distribution connector are IP67 rated once mated and have a PG9 or M12 fastening thread, suitable for many applications that demand a robust multiple connections.
