Phoenix Contact Straight Circular Connector Adapter 5 M12 Male 5 M12 Female
- RS 제품 번호:
- 721-1406
- Distrelec 제품 번호:
- 304-23-161
- 제조사 부품 번호:
- 1546068
- 제조업체:
- Phoenix Contact
대량 구매 할인 기용 가능
View bulk pricing optionsSubtotal (1 unit)*
₩47,287.50
재고있음
- 127 개 단위 배송 준비 완료
- 추가로 2026년 6월 26일 부터 30 개 단위 배송
- 추가로 2026년 7월 03일 부터 10 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 14 | ₩47,287.50 |
| 15 - 49 | ₩45,883.50 |
| 50 - 99 | ₩44,440.50 |
| 100 - 249 | ₩43,387.50 |
| 250 + | ₩42,529.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 721-1406
- Distrelec 제품 번호:
- 304-23-161
- 제조사 부품 번호:
- 1546068
- 제조업체:
- Phoenix Contact
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Phoenix Contact | |
| Product Type | Circular Connector Adapter | |
| Connector Gender A | Male | |
| Connector Size A | M12 | |
| Contact Gender A | Male | |
| Current | 4A | |
| Connector Gender B | Female | |
| Contact Gender B | Female | |
| Connector Size B | M12 | |
| Number of Ports A | 1 | |
| Number of Contacts A | 5 | |
| Number of Ports B | 2 | |
| Number of Contacts B | 5 | |
| Minimum Operating Temperature | -25°C | |
| IP Rating | IP65, IP68, IP69K | |
| Maximum Operating Temperature | 90°C | |
| Voltage | 60V | |
| Series | SAC | |
| Standards/Approvals | No | |
| Orientation | Straight | |
| Contact Plating | Gold over Nickel | |
| Length | 50.1mm | |
| Shell Plating | Nickel | |
| Contact Material | Brass | |
| 모두 선택 | ||
|---|---|---|
브랜드 Phoenix Contact | ||
Product Type Circular Connector Adapter | ||
Connector Gender A Male | ||
Connector Size A M12 | ||
Contact Gender A Male | ||
Current 4A | ||
Connector Gender B Female | ||
Contact Gender B Female | ||
Connector Size B M12 | ||
Number of Ports A 1 | ||
Number of Contacts A 5 | ||
Number of Ports B 2 | ||
Number of Contacts B 5 | ||
Minimum Operating Temperature -25°C | ||
IP Rating IP65, IP68, IP69K | ||
Maximum Operating Temperature 90°C | ||
Voltage 60V | ||
Series SAC | ||
Standards/Approvals No | ||
Orientation Straight | ||
Contact Plating Gold over Nickel | ||
Length 50.1mm | ||
Shell Plating Nickel | ||
Contact Material Brass | ||
Phoenix Contact Circular Connector Adapter, -25°C to +90°C Operating Temperature, IP65 and IP67 Rating - SAC-5P-Y/2XFS VP SCO - 1546068

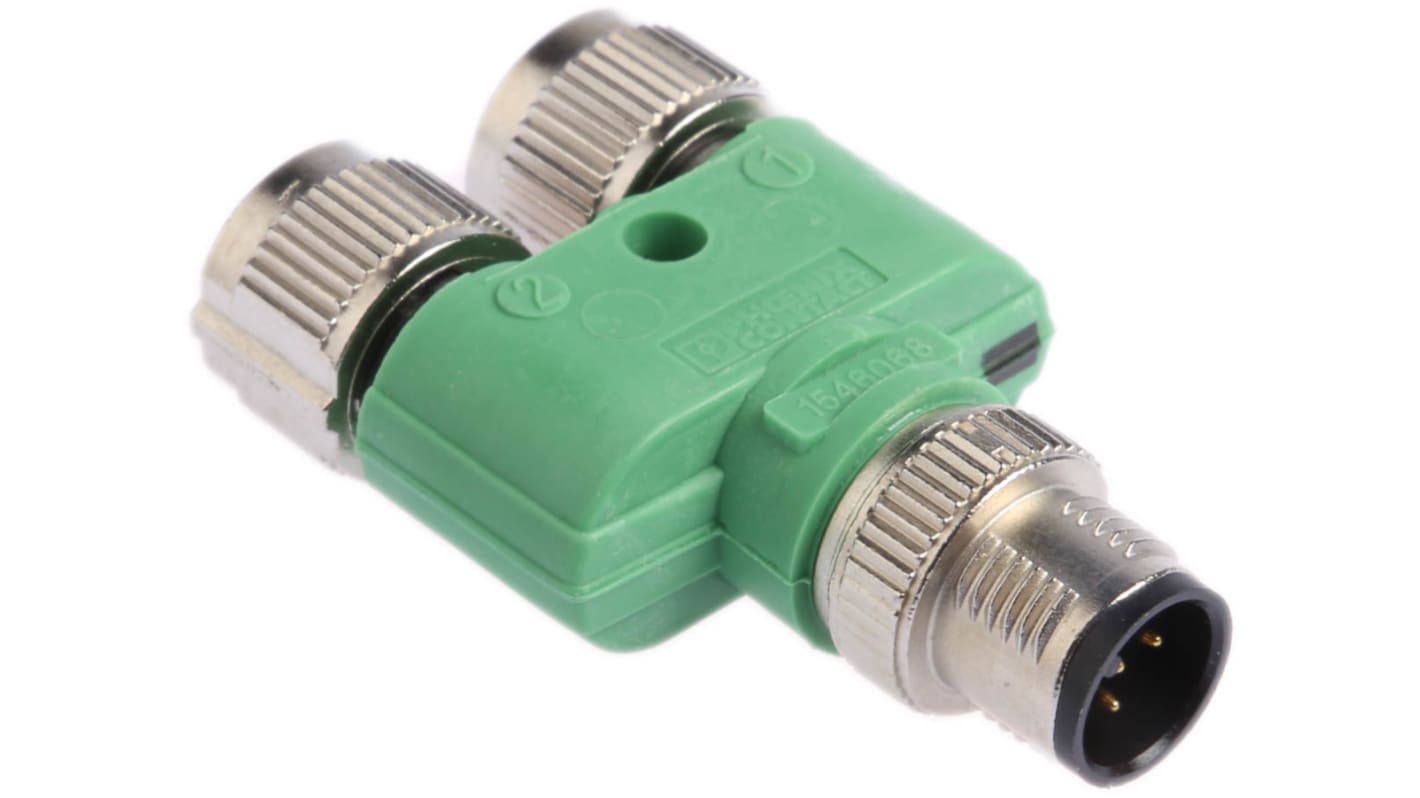

Create a link between multiple bits of industrial control equipment with this circular connector adapter from Phoenix Contact. One end has a male M12 plug and the other has two female M12 sockets, so it links up to three devices with M12-sized shells.
As the outputs are threaded, you can simply turn them by hand to achieve a tight fix. This means your mated assemblies are protected to IP65 and IP67 levels, meaning they're dustproof, waterproof and withstand submersion in up to 1m of water. You can trust this degree of shielding makes the adapter a safe bet for use with applications that need weatherproofing. A broad operating temperature range from -25°C to +90°C means it stands up strong in harsh settings.
Features & Benefits
• A-coded connectors make links with your equipment a piece of cake
• Copper-zinc contact with corrosion-resistant nickel-gold plating means you get top-quality electrical connections
• UL 94-HB rating means it's self-extinguishing, so offers some flame resistance in case of fire
• Category II surge certification makes it safe to withstand voltage surges or overvoltage in fixed installations
