Name: Phoenix Contact 5 Pole M12 Socket to 5 Pole M12 Socket Connector
Brand: Phoenix Contact
SKU: 802-6993
Price: 43691.20 KRW
Availability: InStock

수량

수량 선택 또는 입력

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Phoenix Contact
	End 1	5 Pin Female M12
	End 1 Number of Contacts	5
	End 1 Gender	Female
	End 2	5 Pin Male M12
	End 1 Size	M12
	End 2 Number of Contacts	5
	End 2 Gender	Female
	End 2 Size	M12
	Current Rating	4A
	IP Rating	IP65, IP67
	Series	SAC
	Voltage Rating	60 V
	Body Orientation	Straight
	Contact Plating	Gold over Nickel
	Contact Material	CuZn
	Shell Plating	Nickel
	Maximum Operating Temperature	+90°C
	Minimum Operating Temperature	-25°C

	모두 선택
	브랜드 Phoenix Contact
	End 1 5 Pin Female M12
	End 1 Number of Contacts 5
	End 1 Gender Female
	End 2 5 Pin Male M12
	End 1 Size M12
	End 2 Number of Contacts 5
	End 2 Gender Female
	End 2 Size M12
	Current Rating 4A
	IP Rating IP65, IP67
	Series SAC
	Voltage Rating 60 V
	Body Orientation Straight
	Contact Plating Gold over Nickel
	Contact Material CuZn
	Shell Plating Nickel
	Maximum Operating Temperature +90°C
	Minimum Operating Temperature -25°C

COO (Country of Origin):: PL

M12 Y Connector

Phoenix contact M12 Speedcon connectors, these 3 ways Y or T distribution connector are IP67 rated once mated and have a PG9 or M12 fastening thread, suitable for many applications that demand a robust multiple connections.

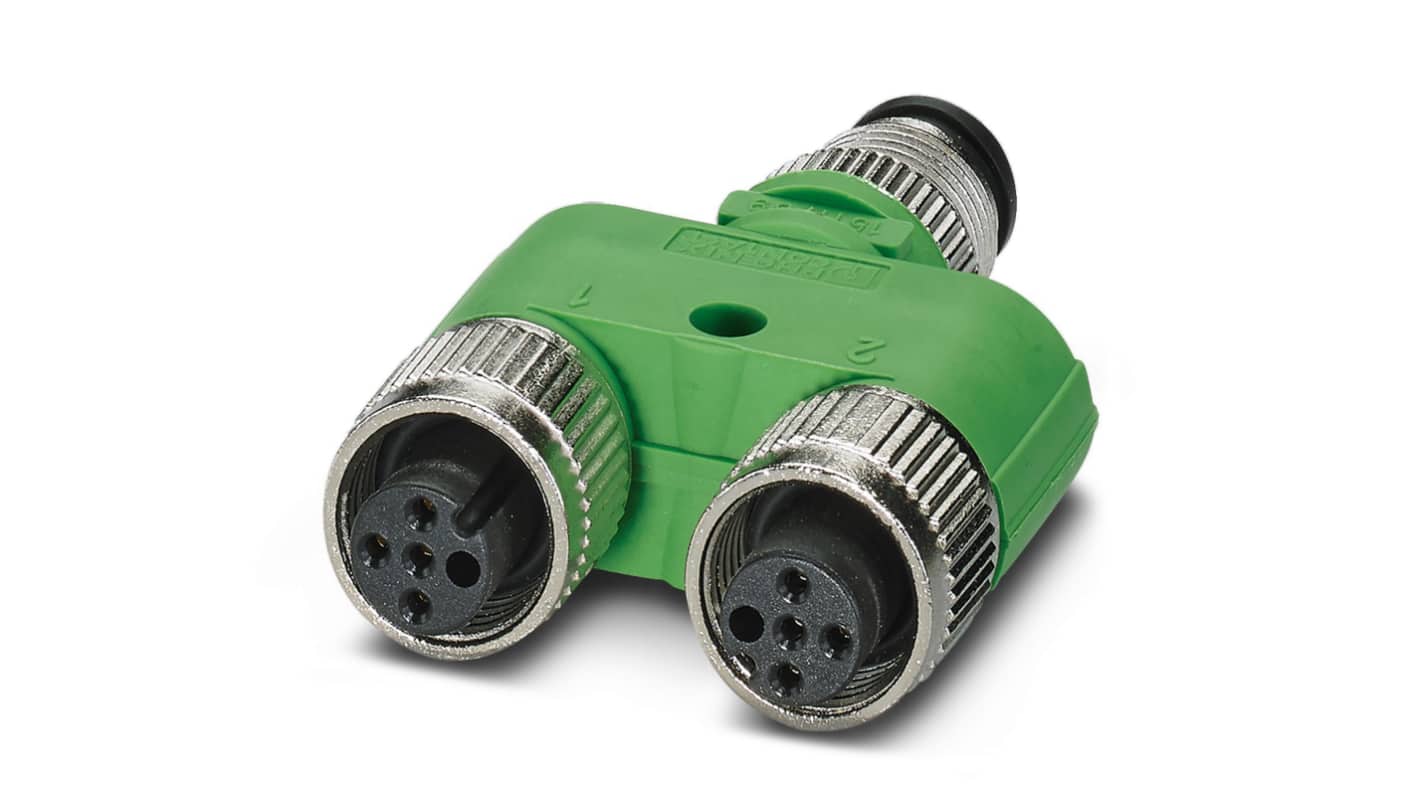

Phoenix Contact Y Distributor, 5 Position, M12 - SAC-5P-M12Y/2XM12FS VP - 1683468

This Y distributor from Phoenix Contact is designed for the convenient field cabling of sensors or actuators. It provides high levels of reliability, even under extreme conditions, and is suitable for outdoor applications. The adaptor has a straight body orientation and a voltage rating of 60V.
The small component doesn't take up much space in a control cabinet to enhance the efficiency of your system. Its housing is made from robust thermoplastic for outstanding resistance to shock and vibration. High insulation resistance enhances the efficiency of the connector and also protects operators from accidental electrical shocks.
Choose this rugged adaptor for traffic, wind-power or construction applications. Once mated, its connectors have an IP67 (ingress protection) rating, which makes for an extremely dependable connection that's dust-tight and waterproof.

• Operating temperature range of -25°C to +90°C
• Conforms to the RoHS (Restriction of Hazardous Substances) directive, meaning it contains no more than minimal levels of hazardous substances
• Meets the ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 electrostatic control standards, so it won't damage equipment via electrostatic discharge

Phoenix Contact 5 Pole M12 Socket to 5 Pole M12 Socket Connector

M12 Y Connector

Phoenix Contact Y Distributor, 5 Position, M12 - SAC-5P-M12Y/2XM12FS VP - 1683468
