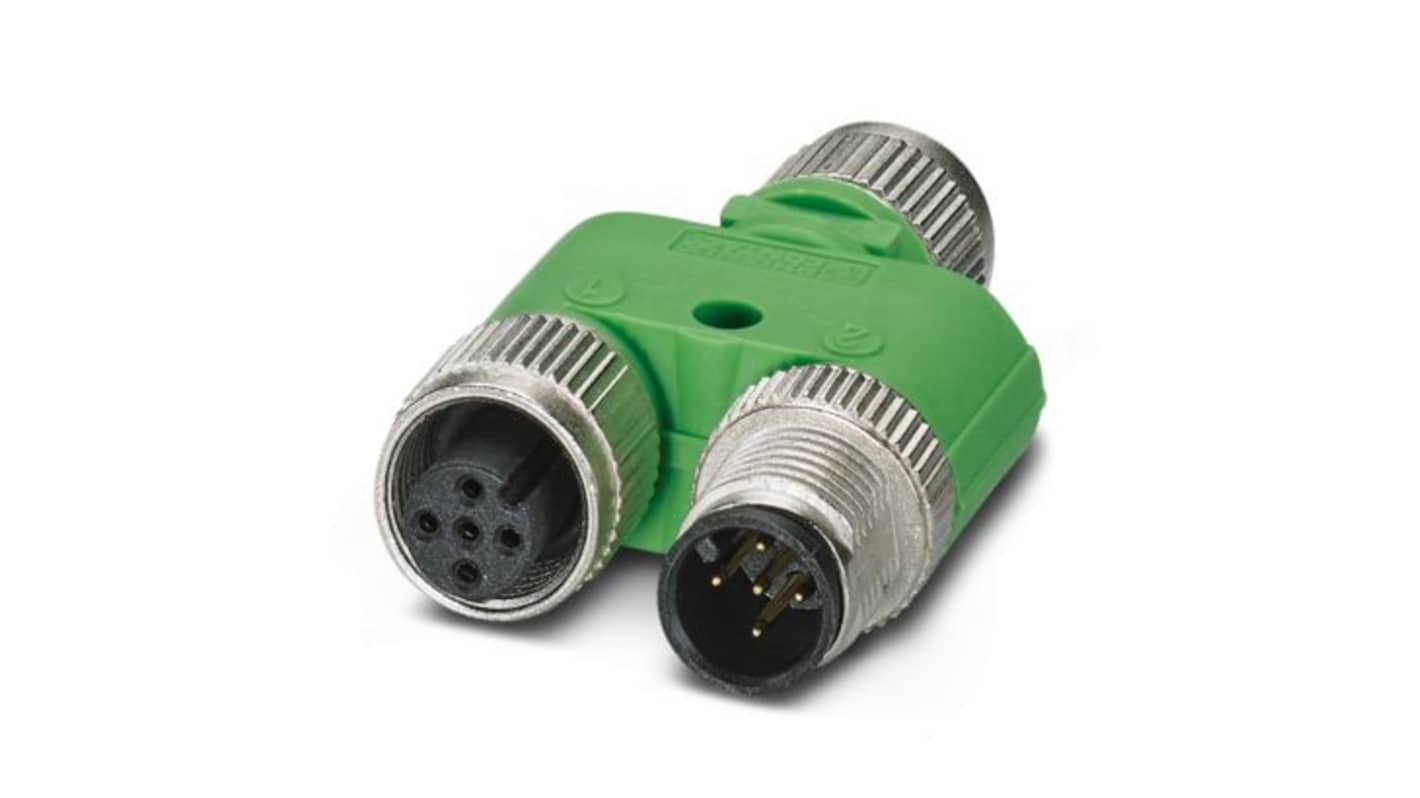

Phoenix Contact Y Adapter 5 M12 Female 5 M12 Female
- RS 제품 번호:
- 487-827
- 제조사 부품 번호:
- 2819163
- 제조업체:
- Phoenix Contact
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
Subtotal (1 pack of 5 units)*
₩223,957.50
제조사가 재고 비축중
- 2026년 10월 01일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
팩 | 한팩당 | 한팩당* |
|---|---|---|
| 1 + | ₩223,957.50 | ₩44,791.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 487-827
- 제조사 부품 번호:
- 2819163
- 제조업체:
- Phoenix Contact
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Phoenix Contact | |
| Product Type | Adapter | |
| Connector Size A | M12 | |
| Current | 4A | |
| Contact Gender A | Male | |
| Connector Gender A | Female | |
| Connector Gender B | Male | |
| Contact Gender B | Female | |
| Connector Size B | M12 | |
| Number of Contacts A | 5 | |
| Number of Ports A | 1 | |
| Number of Contacts B | 5 | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 90°C | |
| IP Rating | IP65, IP67 | |
| Standards/Approvals | IEC 61076-2-101 | |
| Voltage | 60V | |
| Orientation | Y | |
| Contact Plating | Nickel Gold Alloy | |
| Length | 50.1mm | |
| Shell Plating | Nickel Plated | |
| Contact Material | Copper Zinc Alloy | |
| 모두 선택 | ||
|---|---|---|
브랜드 Phoenix Contact | ||
Product Type Adapter | ||
Connector Size A M12 | ||
Current 4A | ||
Contact Gender A Male | ||
Connector Gender A Female | ||
Connector Gender B Male | ||
Contact Gender B Female | ||
Connector Size B M12 | ||
Number of Contacts A 5 | ||
Number of Ports A 1 | ||
Number of Contacts B 5 | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 90°C | ||
IP Rating IP65, IP67 | ||
Standards/Approvals IEC 61076-2-101 | ||
Voltage 60V | ||
Orientation Y | ||
Contact Plating Nickel Gold Alloy | ||
Length 50.1mm | ||
Shell Plating Nickel Plated | ||
Contact Material Copper Zinc Alloy | ||
- COO (Country of Origin):
- PL
The Phoenix Contact Y plug is designed for connecting a Loop 2 S Line module with the Loop 2 and functions as a Y distributor. It features 5 positions and 2 cable outlets. The plug is not shielded and has coding type A with an M12 thread. It is suitable for insulation characteristics with overvoltage category II and a degree of pollution of 3, making it an effective and reliable solution for your connection needs.
RoHS compliant
IP65 and IP67 protection rated
