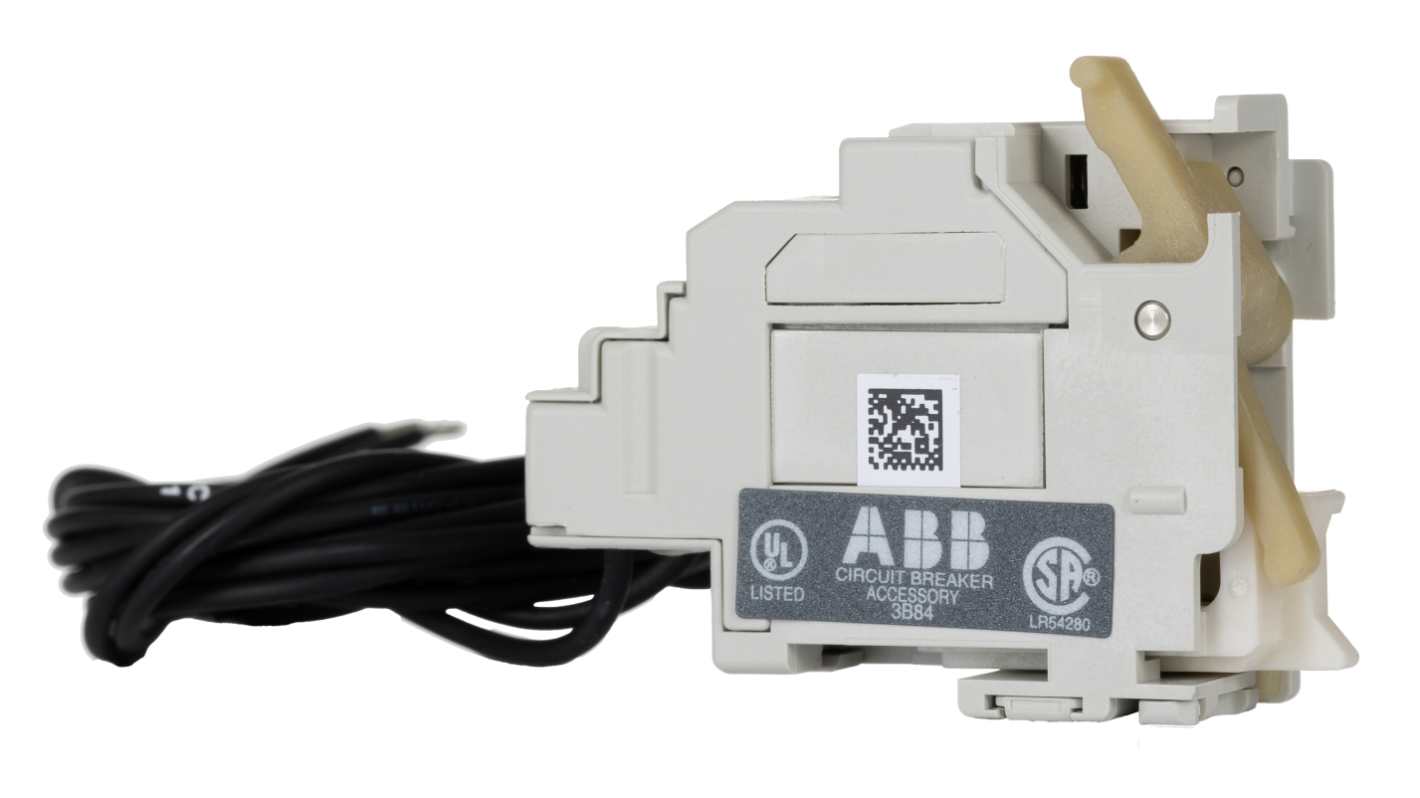

ABB 250V dc Shunt Trip for use with Tmax XT3, Tmax XT4, Tmax XT1, Tmax XT2

모든 Circuit Trips 열람하기

Subtotal (1 unit)*

₩113,194.80

Add to Basket
수량 선택 또는 입력
재고있음
  • 추가로 2026년 2월 23일 부터 7 개 단위 배송
  • 추가로 2026년 3월 13일 부터 8 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩113,194.80

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
831-9197
제조사 부품 번호:
1SDA066325R1
제조업체:
ABB
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

ABB

Product Type

Shunt Trip

Range

SACE Tmax XT

Series

SOR-C XT1-XT4

For Use With

Tmax XT3, Tmax XT4, Tmax XT1, Tmax XT2

Standards/Approvals

No

Control Voltage

250V dc

ABB Shunt Trip, 0.12kg Weight, Moulded Case - SOR-C XT1-XT4 Series - 1SDA066325R1


Stay in control of electrical safety with this shunt trip from ABB. You can use it with the TMAX range of MCBs to shut down the power to your system in the event of an electrical fault. Applying a voltage to the shunt will immediately trip the attached MCB, isolating downstream components and protecting them from damage. Rated control voltages of 220 to 240V AC and 220 to 250V DC make this a suitable option for use with the UK mains supply.

Features & Benefits


• Light weight of 124g minimises mechanical strain on your system

• Moulded case shields internal components from contamination to keep the shunt trip operating smoothly

Applications


• HVAC systems

• Air compressors

• Packaging plants

Why would I need a shunt trip?


Shunt trips enable remote or automatic interruption of electrical circuits in critical situations, giving you centralised control of the electrical safety of your system. They're crucial in circuit protection for generators and power distribution systems as they're a quick way to isolate faults, prevent damage and enhance overall electrical system safety and reliability. You can also use a shunt trip to shut down machinery in emergencies or as part of routine maintenance procedures.
