ABB 240V Shunt Trip for use with Manual Motor Starter
- RS 제품 번호:
- 259-5990
- 제조사 부품 번호:
- 1SAM201910R1003
- 제조업체:
- ABB
현재 비가용
죄송합니다. 언제 재입고될지 모릅니다.
- RS 제품 번호:
- 259-5990
- 제조사 부품 번호:
- 1SAM201910R1003
- 제조업체:
- ABB
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | ABB | |
| Product Type | Shunt Trip | |
| Range | Accessories MS116/MS132 | |
| Series | 1SAM2 | |
| For Use With | Manual Motor Starter | |
| Terminal Type | Screw | |
| Standards/Approvals | UL 60947-4-1, UL 508, UL 60947-1, IEC/EN 60947-1, CSA 22.2 No. 14, IEC/EN 60947-4-1 | |
| Control Voltage | 240V | |
| 모두 선택 | ||
|---|---|---|
브랜드 ABB | ||
Product Type Shunt Trip | ||
Range Accessories MS116/MS132 | ||
Series 1SAM2 | ||
For Use With Manual Motor Starter | ||
Terminal Type Screw | ||
Standards/Approvals UL 60947-4-1, UL 508, UL 60947-1, IEC/EN 60947-1, CSA 22.2 No. 14, IEC/EN 60947-4-1 | ||
Control Voltage 240V | ||
1SAM201910R1003

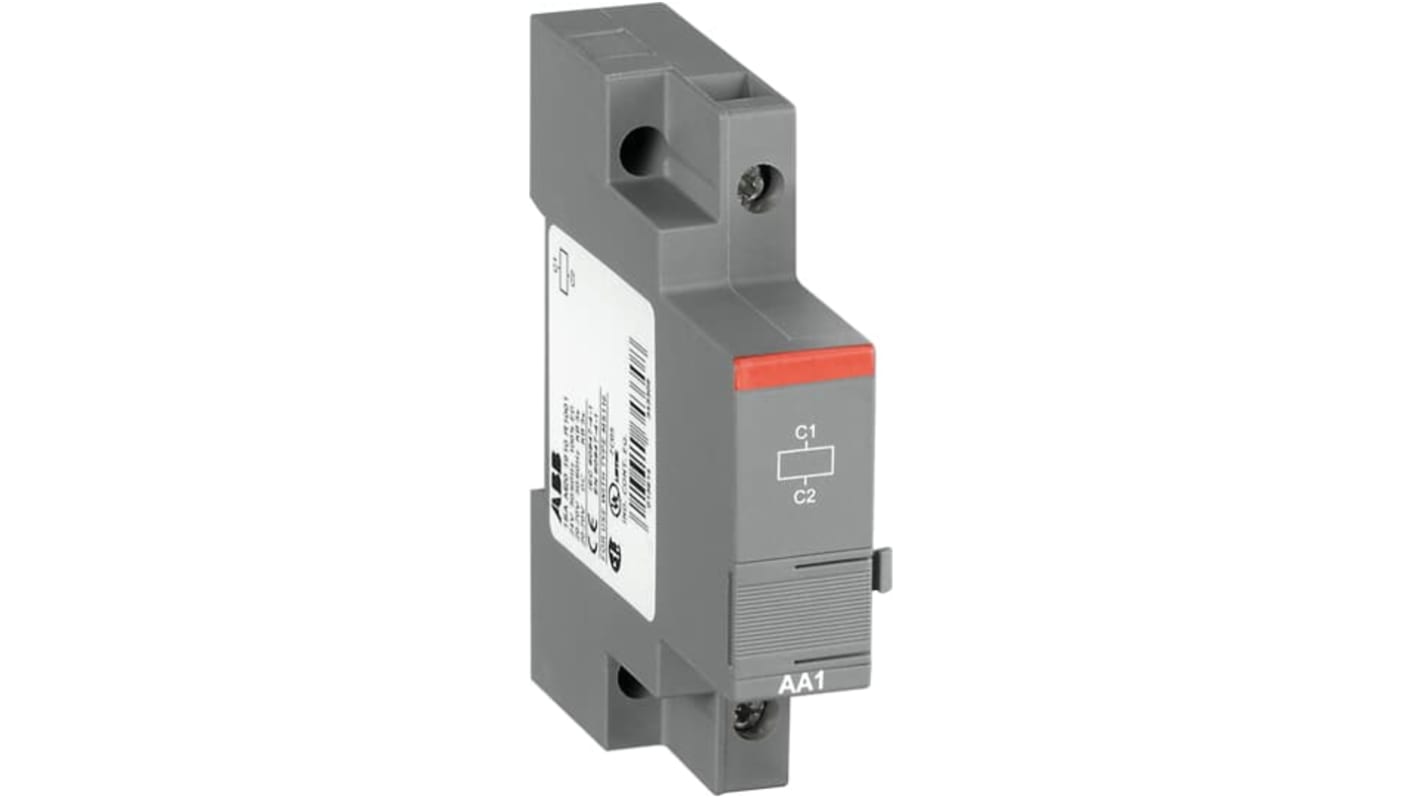

The ABB shunt trip AA1 release manual motor starter used for remote tripping. It is attached laterally on the left side of MS116, MS132 or MS165. In accordance with IEC 60947-1, the manual motor starter is switched off by AA1 if the supply voltage of the shunt trip measured during the tripping operation remains between 70% and 110% of the rated control circuit supply voltage.
Screw terminals
Suitable for manual motor starter MS116, MS132, MO132, MS165, MO165
