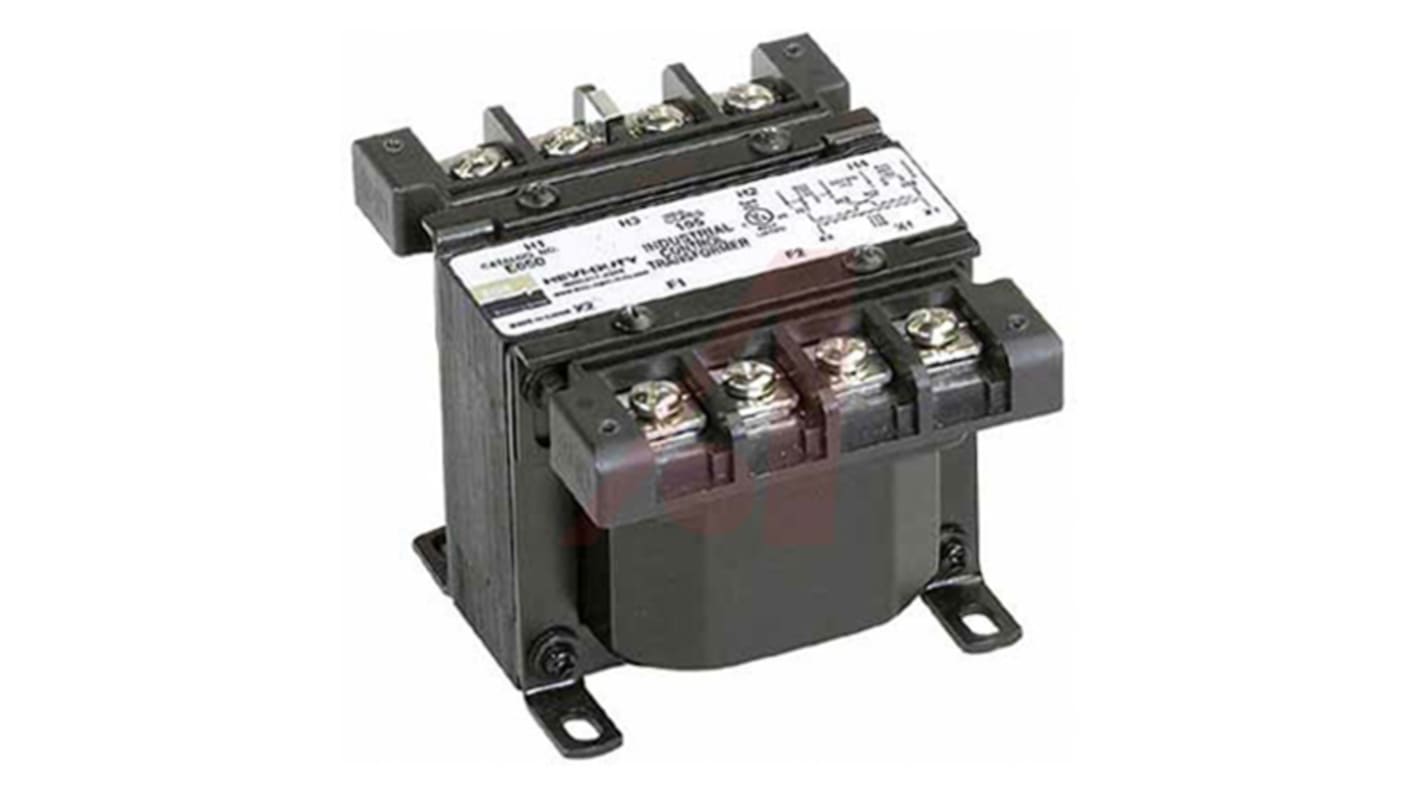

Name: SolaHD 50 VA Chassis Mount Transformer, 24 V, IEC 707, NEMA Standard ST 1, ISO Class 1211, ANSI C89.1
Brand: SolaHD
SKU: 890-8832
Price: 90315.20 KRW
Availability: BackOrder

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	SolaHD
	Primary Voltage	120 V, 240 V
	Product Type	Chassis Mount Transformer
	Secondary Voltage	24 V
	Power	50VA
	Width	76.45 mm
	Depth	101.35mm
	Weight	3lb
	Maximum Operating Frequency	60Hz
	Standards/Approvals	IEC 707, NEMA Standard ST 1, ISO Class 1211, ANSI C89.1

	모두 선택
	브랜드 SolaHD
	Primary Voltage 120 V, 240 V
	Product Type Chassis Mount Transformer
	Secondary Voltage 24 V
	Power 50VA
	Width 76.45 mm
	Depth 101.35mm
	Weight 3lb
	Maximum Operating Frequency 60Hz
	Standards/Approvals IEC 707, NEMA Standard ST 1, ISO Class 1211, ANSI C89.1

Datasheet

SolaHD SBE Encapsulated Series Transformers

The SBE Encapsulated series control transformers have been epoxy encapsulated thus sealing the transformer windings from moisture, dirt and industrial contaminants. They feature extra deep, moulded terminal barriers which helps to reduce the possibility of electrical failure from arcing or frayed lead wires. Thanks to their rugged design and high reliability they are ideally suited for all industrial applications and environments.

50 to 1000 VA, 50/60 Hz suitable for worldwide applications

Interleaved copper windings reduce I²R losses and maximize efficiency

+55 °C Rise, +105 °C insulation system to minimize heat

Epoxy encapsulated to protect cores and coils against moisture, dirt, and other contaminants

Meets or Exceeds NEMA Standard ST 1 and ANSI C89.1 for load inrush capability

Integrally moulded, flame retardant (IEC 707 / ISO Class 1210) Terminal Blocks provide greater terminal contact area and improved conductivity

Heavy gauge steel mounting plate

Mounting dimensions are compatible with similar control transformers

SolaHD 50 VA Chassis Mount Transformer, 24 V, IEC 707, NEMA Standard ST 1, ISO Class 1211, ANSI C89.1

SolaHD SBE Encapsulated Series Transformers
