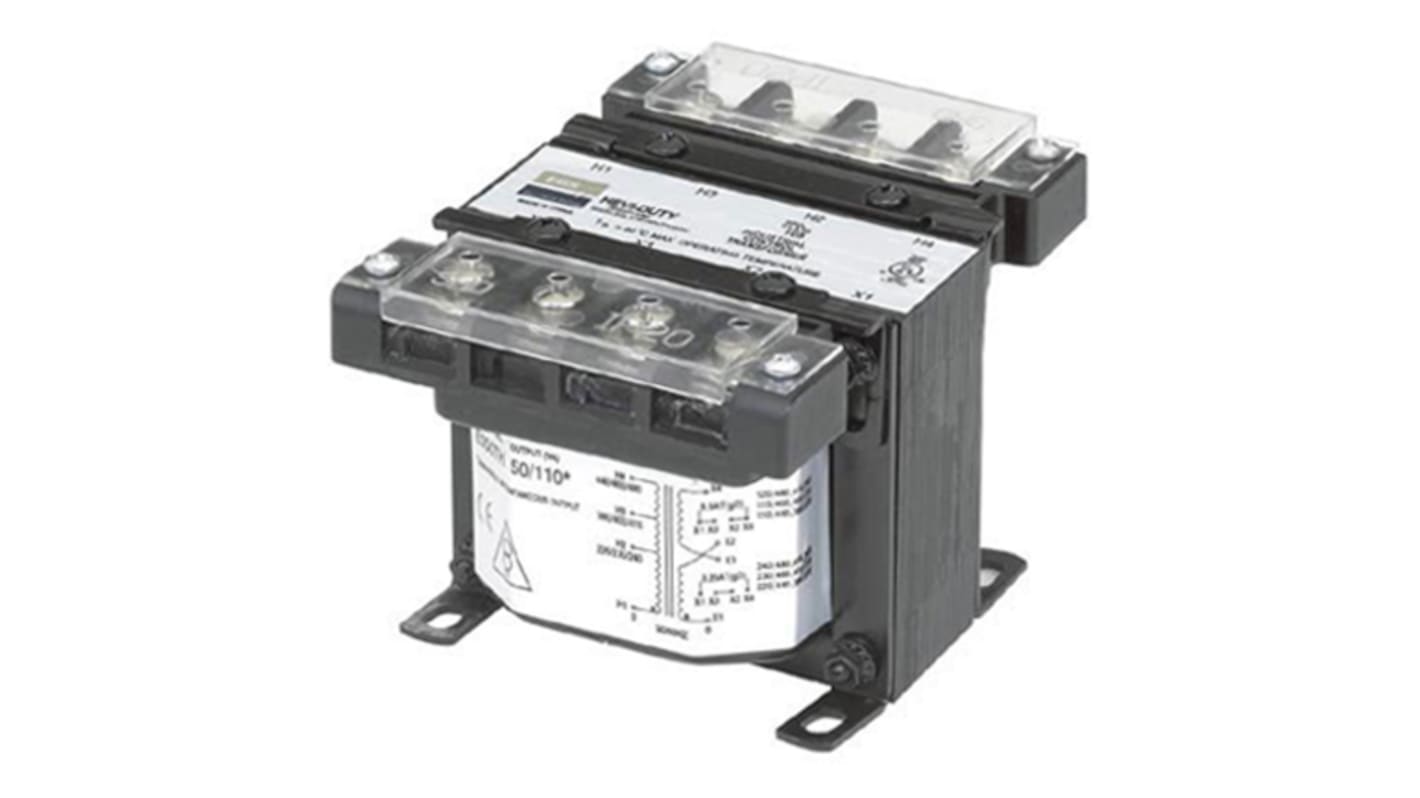

SolaHD Chassis Mount Transformer, RoHS, CSA C22.2 No. 66, NMTBA, UL 506, automotive, JIC, IEC 61558-2-2, NEMA, IEC
- RS 제품 번호:
- 891-3569
- 제조사 부품 번호:
- E250TH
- 제조업체:
- SolaHD
Subtotal (1 unit)*
₩265,531.20
일시적 품절
- 2026년 5월 26일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩265,531.20 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 891-3569
- 제조사 부품 번호:
- E250TH
- 제조업체:
- SolaHD
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | SolaHD | |
| Product Type | Chassis Mount Transformer | |
| Winding Type | Copper Winding | |
| Maximum Operating Temperature | 130°C | |
| Minimum Operating Frequency | 50Hz | |
| Series | International | |
| Weight | 16.82kg | |
| Maximum Operating Frequency | 60Hz | |
| Standards/Approvals | RoHS, CSA C22.2 No. 66, NMTBA, UL 506, automotive, JIC, IEC 61558-2-2, NEMA, IEC 61558-1, ANSI | |
| 모두 선택 | ||
|---|---|---|
브랜드 SolaHD | ||
Product Type Chassis Mount Transformer | ||
Winding Type Copper Winding | ||
Maximum Operating Temperature 130°C | ||
Minimum Operating Frequency 50Hz | ||
Series International | ||
Weight 16.82kg | ||
Maximum Operating Frequency 60Hz | ||
Standards/Approvals RoHS, CSA C22.2 No. 66, NMTBA, UL 506, automotive, JIC, IEC 61558-2-2, NEMA, IEC 61558-1, ANSI | ||
SolaHD International Series Control Transformers
The International series transformers have been designed to comply with the demands of electromagnetic control components which can demand inrush currents of up to 10 times the nominal rating without sacrificing secondary voltage stability beyond practical limits. They fully comply with IEC and NEMA standards and are available with IEC touch proof covers (IP20).
Epoxy encapsulated for cooler operation
Interleaved copper windings reduce I²R losses and maximize efficiency
50/60 Hz
+55 °C Rise, +105 °C insulation system for harsh, heavy duty applications
Standards
Exceeds IEC, NEMA, ANSI, NMTBA, JIC and automotive standards
