Eurotherm 3 Graphical Graphic Recorder Voltage, Resistance, Current, Millivolt, Temperature

모든 Chart Recorders 열람하기

Subtotal (1 unit)*

₩2,965,747.20

Add to Basket
수량 선택 또는 입력
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
수량
한팩당
1 +₩2,965,747.20

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
243-9249
제조사 부품 번호:
NANODAC/VL/X/X/LRR/B
제조업체:
Eurotherm
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Eurotherm

Chart Type

Graphical

Product Type

Graphic Recorder

Number of Channels

3

Measurement Parameters

Voltage, Resistance, Current, Millivolt, Temperature

Standards/Approvals

UL, CE, BS EN 61326, EU

Width

90mm

Height

96mm

Weight

0.44kg

Resolution

0.05 °C

Length

96mm

COO (Country of Origin):
PL

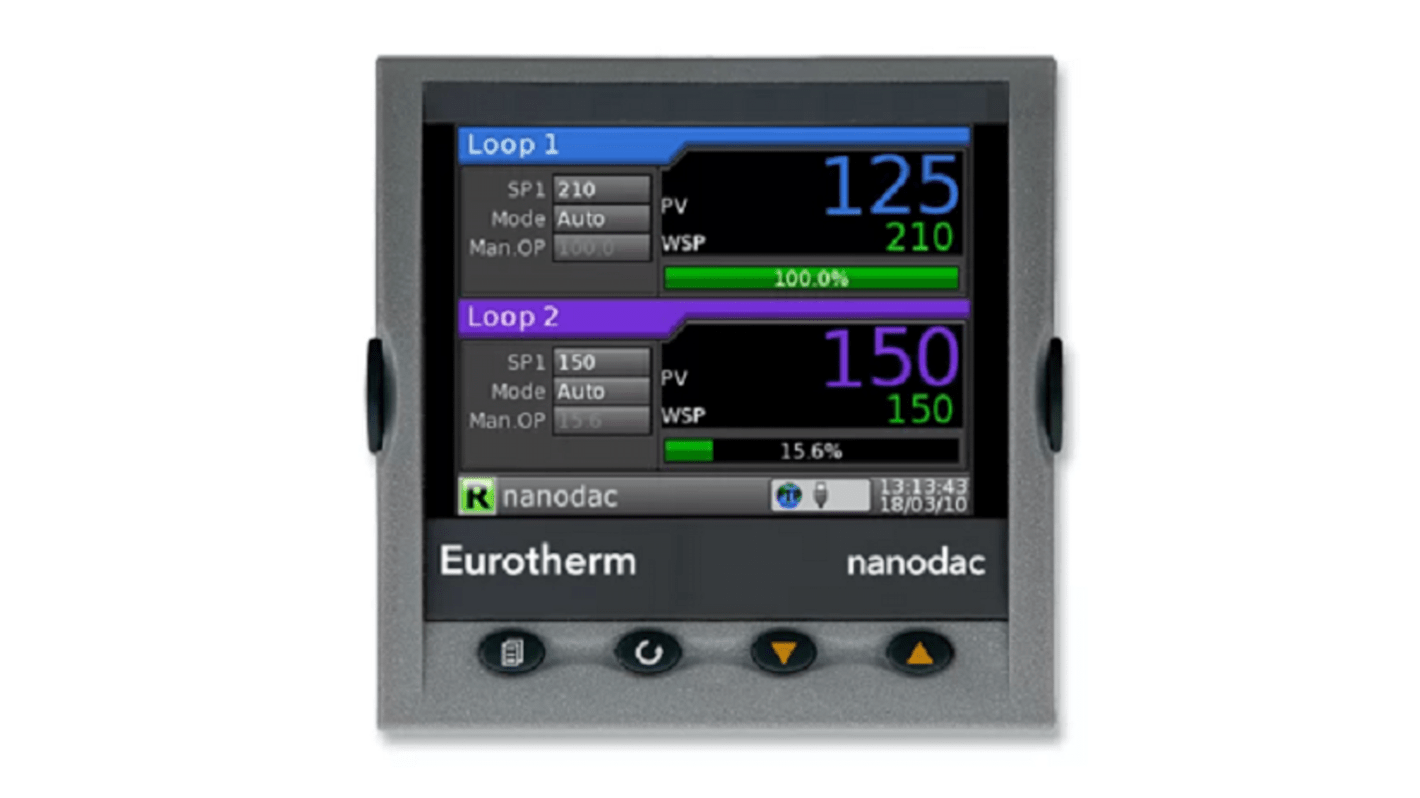

The Eurotherm nanodac recorder is a graphical video graphic chart recorder used to measure the current, millivolt, voltage, resistance and temperature. It has 24V ac (+10% - 15%) at 48-62Hz, or 24V dc (+20% - 15%) without any controller and programmer along with 1 logic and 2 Relay output options. It comes with 3.5in TFT display that offers incredibly clear visualisation of process parameters with a wide selection of configurable views to best suit the application. The views include horizontal and vertical trends, bar graphs, numeric, alarm panel, alarm status and control loops.

Tamper resistant data recording methodology trusted by auditors

Four navigation push buttons (Page, Scroll, Lower and Raise)

USB removable data storage facility

High accuracy universal inputs

50 MB data storage

8Hz (125ms) sample data recording rate

3.5” colour TFT (320 pixels wide x 240 pixels high) integrated display

Multi-language support

Compact design
