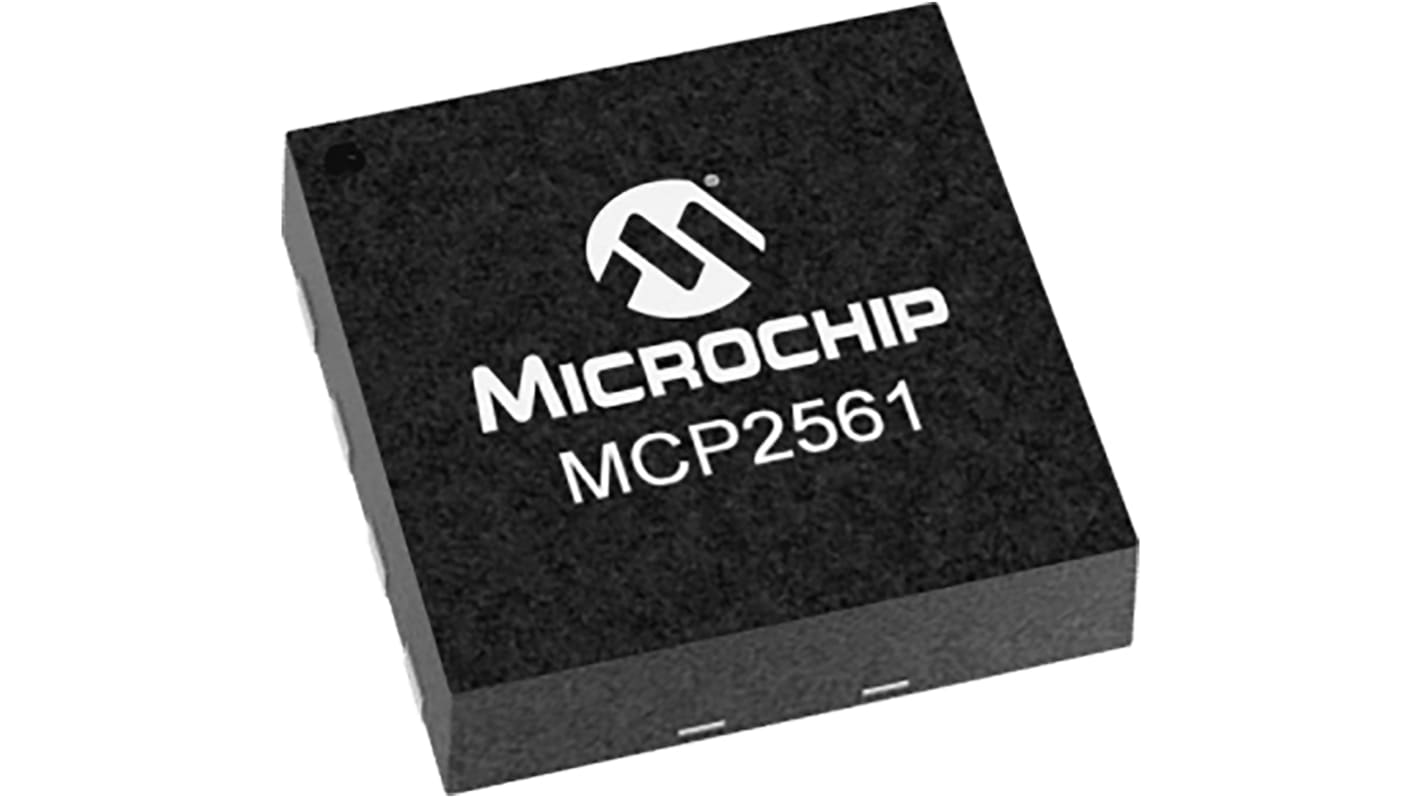

Microchip, CAN Transceiver 1 Mbps, 8-Pin DFN

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 CAN Interface Ics 열람하기
대량 구매 할인 기용 가능

Subtotal (1 tube of 120 units)*

₩171,004.80

Add to Basket
수량 선택 또는 입력
일시적 품절
  • 240 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
Per Tube*
120 - 480₩1,425.04₩171,004.80
600 +₩1,396.84₩167,575.68

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
177-1628
제조사 부품 번호:
MCP2561-E/MF
제조업체:
Microchip
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Microchip

Product Type

CAN Transceiver

Maximum Data Rate

1Mbps

Number of Transceivers

1

Sub Type

CAN Transceiver

Power Down Mode

Standby, Normal

Supply Current

70mA

Mount Type

Surface

Interface Type

ISO 11898-2, ISO 11898-5

Package Type

DFN

Pin Count

8

Minimum Supply Voltage

4.5V

Maximum Supply Voltage

5.5V

ESD Protection

Yes

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

125°C

Standards/Approvals

No

Length

3mm

Width

3 mm

Height

0.95mm

Series

MCP2561

Automotive Standard

AEC-Q100

The MCP2561/2FD is a Microchip Technology Inc. second generation high-speed CAN transceiver. It offers the same features as the MCP2561/2. Additionally, it guarantees Loop Delay Symmetry in order to support the higher data rates required for CAN FD. The maximum propagation delay was improved to support longer bus length.The device family members are MCP2561FD with SPLIT pin & MCP2562FD with VIO pin

Optimized for CAN FD (Flexible Data rate) at 2, 5 and 8 Mbps Operation

Maximum Propagation Delay: 120 ns

Loop Delay Symmetry: -10%/+10% (2 Mbps)

Very Low Standby Current (5 μA, typical)

VIO Supply Pin to Interface Directly to CAN Controllers and Microcontrollers with 1.8V to 5.5V I/O

SPLIT Output Pin to Stabilize Common Mode in Biased Split Termination Schemes

CAN Bus Pins are
