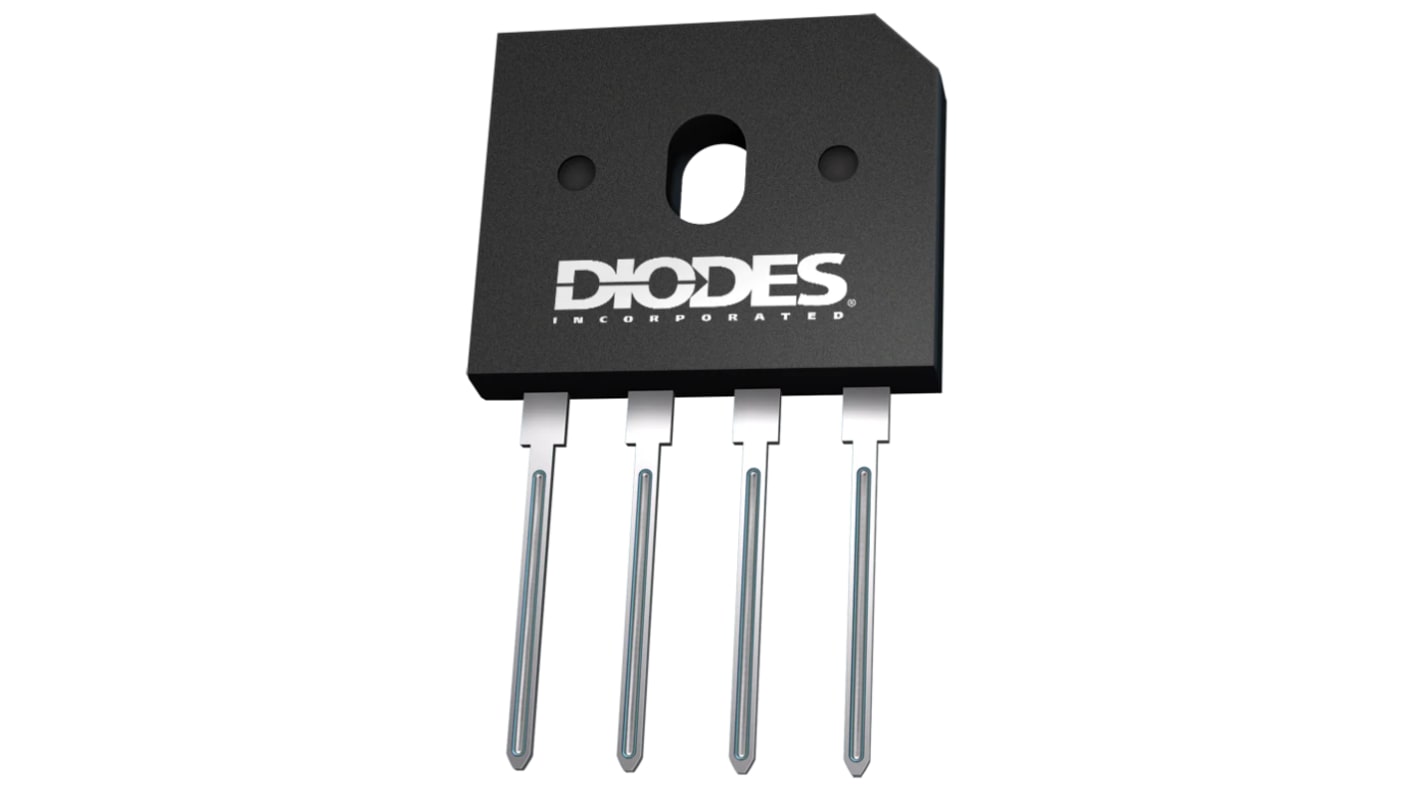

DiodesZetex Bridge Rectifier, 800 V 350 A, 4-Pin Single Phase
- RS 제품 번호:
- 254-8721
- 제조사 부품 번호:
- GBU30T08
- 제조업체:
- DiodesZetex
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
View bulk pricing optionsSubtotal (1 pack of 5 units)*
₩23,920.00
단종되는 중
- 최종적인 35 개 unit(s)이 배송 준비 됨
수량 | 한팩당 | 한팩당* |
|---|---|---|
| 5 - 5 | ₩4,784.00 | ₩23,920.00 |
| 10 - 95 | ₩4,540.00 | ₩22,700.00 |
| 100 - 495 | ₩4,268.00 | ₩21,340.00 |
| 500 - 995 | ₩3,976.00 | ₩19,880.00 |
| 1000 + | ₩3,652.00 | ₩18,260.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 254-8721
- 제조사 부품 번호:
- GBU30T08
- 제조업체:
- DiodesZetex
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | DiodesZetex | |
| Product Type | Bridge Rectifier | |
| Peak Reverse Repetitive Voltage Vrrm | 800V | |
| Mount Type | Through Hole | |
| Package Type | GBU | |
| Number of Phases | 1 | |
| Pin Count | 4 | |
| Configuration | Single Phase | |
| Maximum Operating Temperature | 150°C | |
| Minimum Operating Temperature | -55°C | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 350A | |
| Forward Current If | 30A | |
| Peak Forward Voltage Vf | 1.1V | |
| Peak Reverse Current Ir | 10μA | |
| Standards/Approvals | RoHS | |
| Series | GBU30T08 | |
| Automotive Standard | AEC-Q200, AEC-Q101, AEC-Q100 | |
| 모두 선택 | ||
|---|---|---|
브랜드 DiodesZetex | ||
Product Type Bridge Rectifier | ||
Peak Reverse Repetitive Voltage Vrrm 800V | ||
Mount Type Through Hole | ||
Package Type GBU | ||
Number of Phases 1 | ||
Pin Count 4 | ||
Configuration Single Phase | ||
Maximum Operating Temperature 150°C | ||
Minimum Operating Temperature -55°C | ||
Peak Non-Repetitive Forward Surge Current Ifsm 350A | ||
Forward Current If 30A | ||
Peak Forward Voltage Vf 1.1V | ||
Peak Reverse Current Ir 10μA | ||
Standards/Approvals RoHS | ||
Series GBU30T08 | ||
Automotive Standard AEC-Q200, AEC-Q101, AEC-Q100 | ||
The DiodeZetex bridge rectifier with glass passivated die construction. It is ideal for printed circuit boards.
Reliable low cost construction utilizing moulded plastic technique
Rating to 800V PRV
Halogen and antimony free
