Vishay Bridge Rectifier, 1000 V 52 A, 4-Pin Grounding
- RS 제품 번호:
- 100-099
- 제조사 부품 번호:
- VS-1KAB60E
- 제조업체:
- Vishay

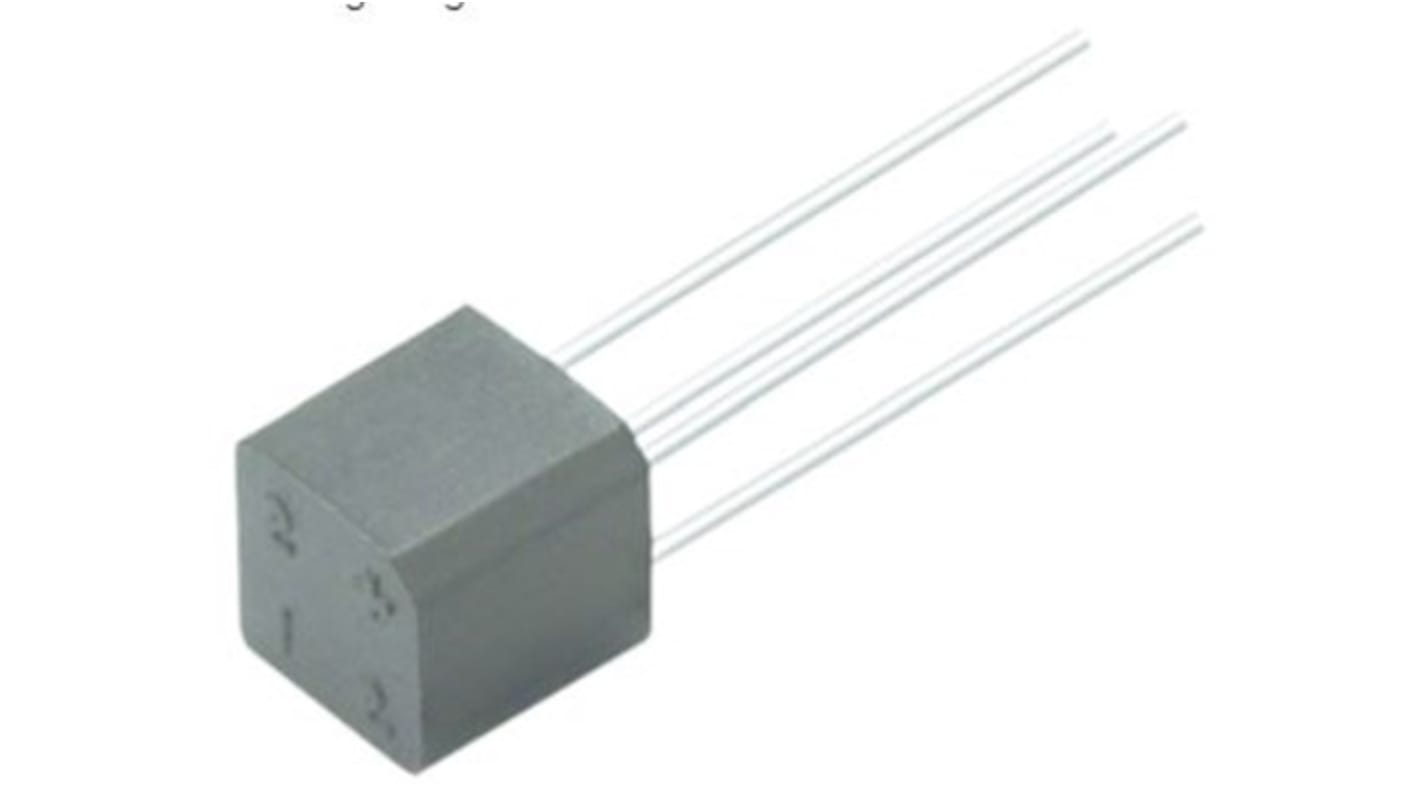

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
Subtotal (1 Box of 500 units)*
₩970,080.00
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
수량 | 한팩당 | Per Box* |
|---|---|---|
| 500 + | ₩1,940.16 | ₩970,174.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 100-099
- 제조사 부품 번호:
- VS-1KAB60E
- 제조업체:
- Vishay
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Vishay | |
| Product Type | Bridge Rectifier | |
| Peak Reverse Repetitive Voltage Vrrm | 1000V | |
| Mount Type | Through Hole | |
| Package Type | D-38 | |
| Number of Phases | 1 | |
| Pin Count | 4 | |
| Configuration | Grounding | |
| Maximum Operating Temperature | 150°C | |
| Minimum Operating Temperature | -55°C | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 52A | |
| Forward Current If | 1.2A | |
| Peak Forward Voltage Vf | 1.1V | |
| Height | 10mm | |
| Width | 9.5 mm | |
| Peak Reverse Current Ir | 500A | |
| Length | 9.5mm | |
| Series | VS-1KAB-E | |
| Standards/Approvals | RoHS | |
| Automotive Standard | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 Vishay | ||
Product Type Bridge Rectifier | ||
Peak Reverse Repetitive Voltage Vrrm 1000V | ||
Mount Type Through Hole | ||
Package Type D-38 | ||
Number of Phases 1 | ||
Pin Count 4 | ||
Configuration Grounding | ||
Maximum Operating Temperature 150°C | ||
Minimum Operating Temperature -55°C | ||
Peak Non-Repetitive Forward Surge Current Ifsm 52A | ||
Forward Current If 1.2A | ||
Peak Forward Voltage Vf 1.1V | ||
Height 10mm | ||
Width 9.5 mm | ||
Peak Reverse Current Ir 500A | ||
Length 9.5mm | ||
Series VS-1KAB-E | ||
Standards/Approvals RoHS | ||
Automotive Standard No | ||
The Vishay Single Phase Rectifier Bridge with 1.2 A current supply.
Ease of assembly
Easy installation
High surge rating
Compact
