RS PRO Hot Dip Galvanised Steel Beam Clamp

모든 Beam Clamps 열람하기

Subtotal (1 Bag of 2 units)*

₩8,034.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 184 개 단위 배송 준비 완료
  • 추가로 2026년 4월 23일 부터 26 개 단위 배송
  • 추가로 2026년 6월 17일 부터 90 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
Bag(s)
Per Bag
한팩당*
1 +₩8,034.00₩4,017.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
221-6346
제조업체:
RS PRO
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

RS PRO

Sub Type

C Clamp

Product Type

Beam Clamp

Finish

Hot Dip Galvanised

Material

Steel

Mount Hole Centre-to-Centre

55mm

Fitting Width

21 x 41 mm

Length

80mm

Width

70mm

Standards/Approvals

CE, RoHS

COO (Country of Origin):
IN

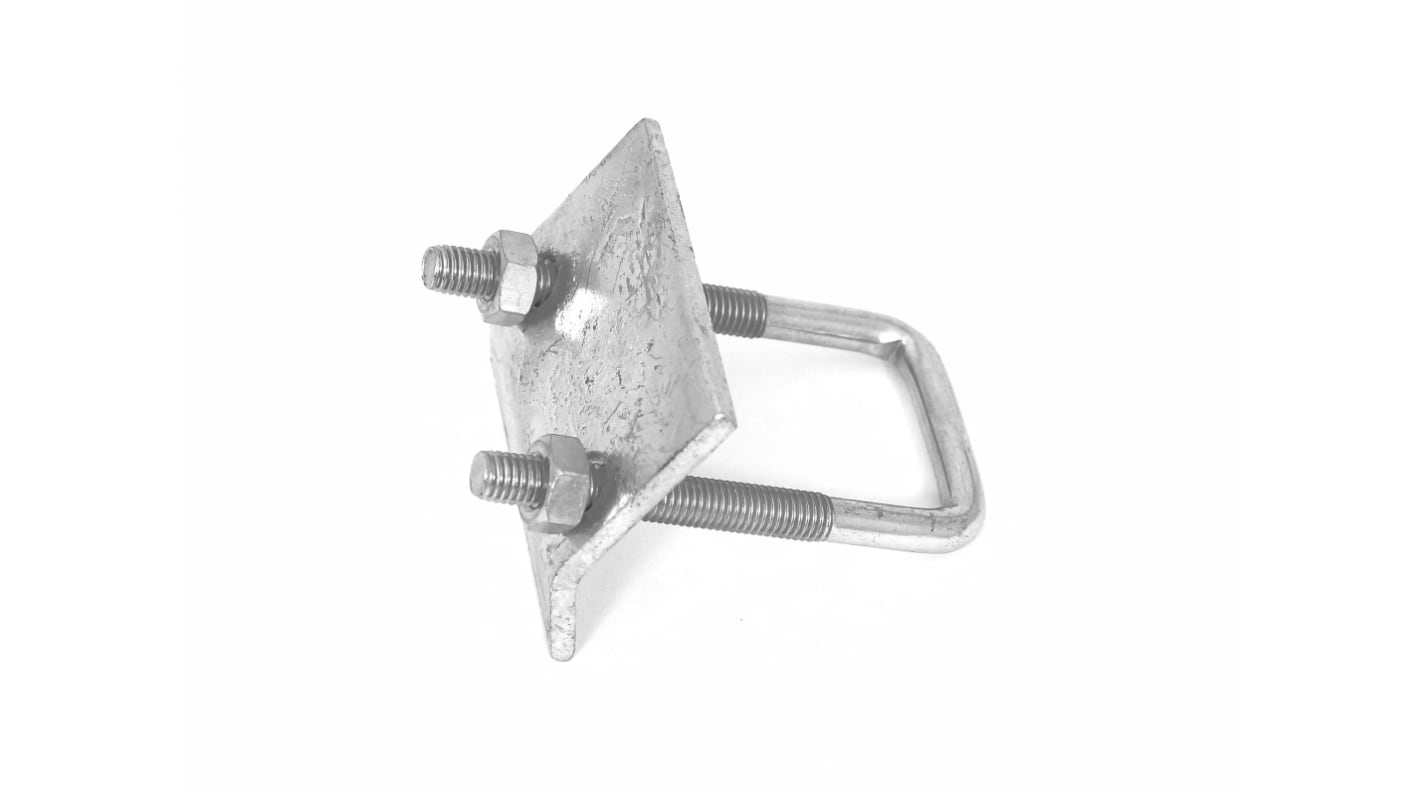

RS PRO Beam Clamp with U Bolt


When it comes to beam clamps consider RS PRO. Our U bolt beam clamp is made from steel and hot-dipped galvanised for the ultimate strength and corrosion protection. This beam clamp is designed to fit a 41 mm channel or strut support system to beam flanges. The beam clamp has 2 pre-drilled holes complete with a 'U' bolt and two hexagon full nuts perfect for internal and external applications.

What is it used for?


A ’U’ bolt beam clamp is a structural clamping system that fits under flanges and is secured in place via the hexagon nuts. Beam clamps remove the need for welding and drilling and are a classic way of securing channel-strut systems to the ceiling ready to be used as a rigging device.

Also known as;


  • Girder clamp

  • C Clamps

  • Flange beam clamp

    • Features and Benefits


  • U bolt beam clamp

  • Made of steel

  • Designed to fit channel/strut support systems

  • 2 hexagon nuts

  • All parts hot dipped galvanised (HDG)

  • Resistant to corrosion

  • Ideal for internal and external applications

    • Specification


  • Dimensions: H.80 mm x W.70 mm

  • U bolt 41 mm

  • Weight: 0.360g

    • Caution


  • Always use 2 clamps per fixing

    • Application


    Beam clamps are commonly used in material handling processes both indoor and outdoor. Typical application includes;

  • Lifting and Support

  • Rigging
