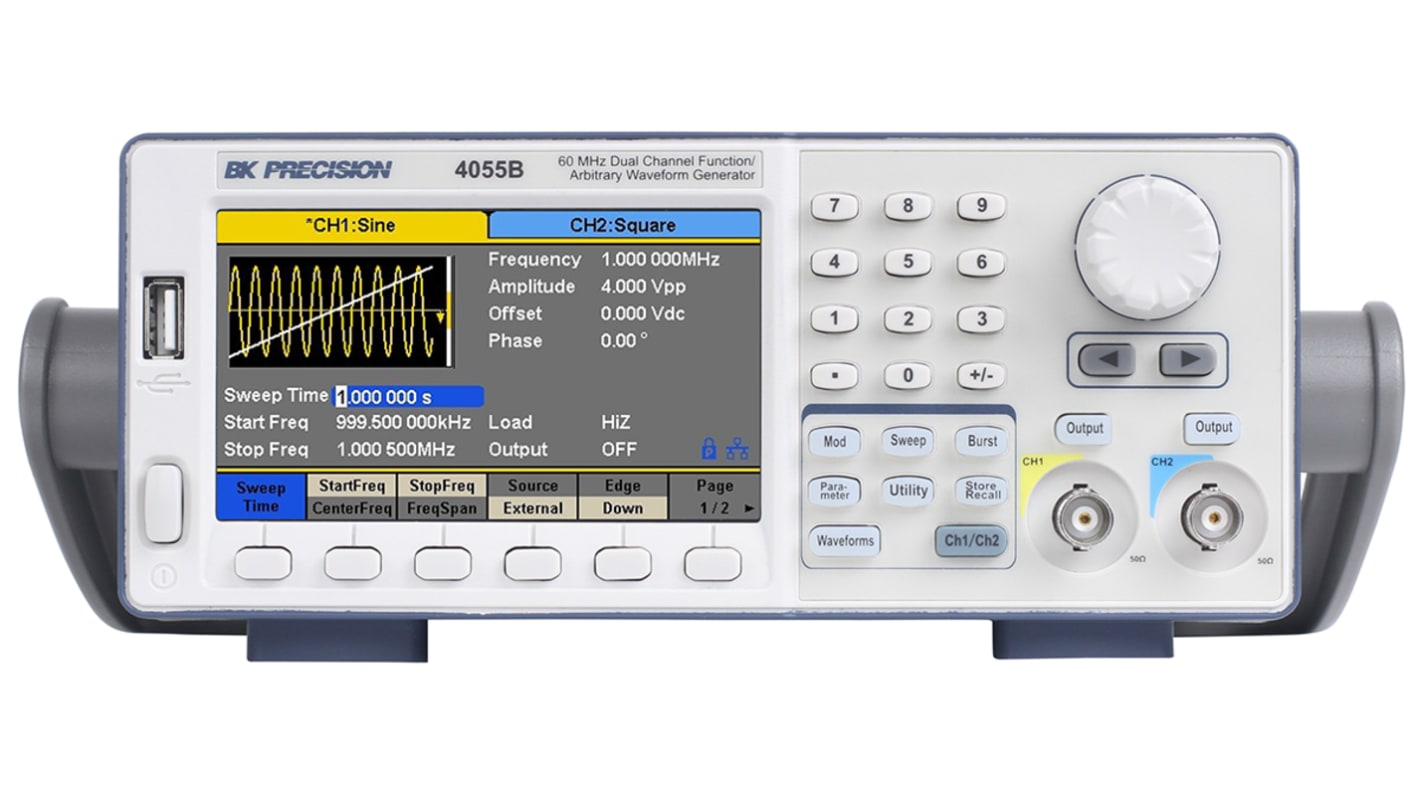

BK Precision 4055 Arbitrary Waveform Generator, 25 MHz, 50 MHz Max, 1 μHz Min

The BK Precision waveform generator is high tech, function/ arbitrary device. This generator has 2 channels and supports frequencies up to 60Mhz. It can source stable and precise sine, square, triangle, pulse and arbitrary waveforms. The device has easy-to-read, colour display with waveform preview and an intuitive user interface, with numeric keypad. It has various advanced capabilities that include linear/ logarithmic sweep, built-in counter, extensive modulation and triggering capabilities, a continuously variable DC offset and a high-performance. The main output voltage can be varied from 0Vpp to 10Vpp into 50ohm (up to 20Vpp into open circuit) and the secondary output can be varied from 0Vpp to 3Vpp into 50ohms (up to 6Vpp into open circuit).

Supplied with getting started manual, a full instruction manual on CD, AC power cord, USB type A-to-type B cable and a certificate of calibration.

The supply voltage ranging from 100VAC to 240VAC
16k point arbitrary waveform generator
14-bit resolution
Sampling rate of 125MSa/s
Large, 3.5in, LCD colour display
Linear and logarithmic sweep
AM/DSB-AM/ASK/FM/FSK/PM/PWM modulation functions
Variable DC offset
Adjustable duty cycle
2 independent channels with individual output ON/ OFF buttons
Internal/ external triggering
Gate and burst mode
48 built-in predefined arbitrary waveforms
Store/ recall up to 10 instrument settings and 10 arbitrary waveforms
Built-in counter
USB device port with front panel USB host port
SCPI-compliant command set
Short circuit protection on outputs
Connector type is BNC

Telecommunication
Electronics laboratories
Educational institutes
Electronics designing
Service and maintenance

EN61326:2006
EN61000-3-2:2006
EN61000-3-3:2008
EN61010-1:2001
EN61010-031:2002
CE certified
