BK Precision 4054 Arbitrary Waveform Generator 25 MHz Max, 2-Channel, 1 Hz Min

본 제품군 열람하기

Subtotal (1 unit)*

₩1,729,374.40

Add to Basket
수량 선택 또는 입력
재고있음
  • 추가로 2026년 3월 23일 부터 2 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩1,729,374.40

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
878-2141
Distrelec 제품 번호:
301-15-318
제조사 부품 번호:
BK4054B
제조업체:
BK Precision
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

BK Precision

Maximum Frequency

25MHz

Product Type

Arbitrary Waveform Generator

Minimum Frequency

1Hz

Maximum Frequency Triangle Ramps

300kHz

Number of Channels

2

Minimum Frequency Triangle Ramps

1μHz

Maximum Sampling Frequency

125Msps

Maximum Pulse Train Repetition Rate

1MHz

Resolution

4 Digits

Pulse Resolution

8ns

Minimum Operating Temperature

0°C

Waveform Memory/Channel

16kpts

Maximum Operating Temperature

40°C

Height

89mm

Width

281 mm

Length

213mm

Minimum Pulse Width

16ns

Weight

2.6kg

Standards/Approvals

CE

Sweep

Linear, Up or Down, Logarithmic

Inputs

Modulation In

Connector Type

BNC

Display Type

TFT LCD

Rise - Fall Time

7ns

Interface Type

USB, GPIB

Data Entry

Keypad

Model Number

4054

비준수

COO (Country of Origin):
CN

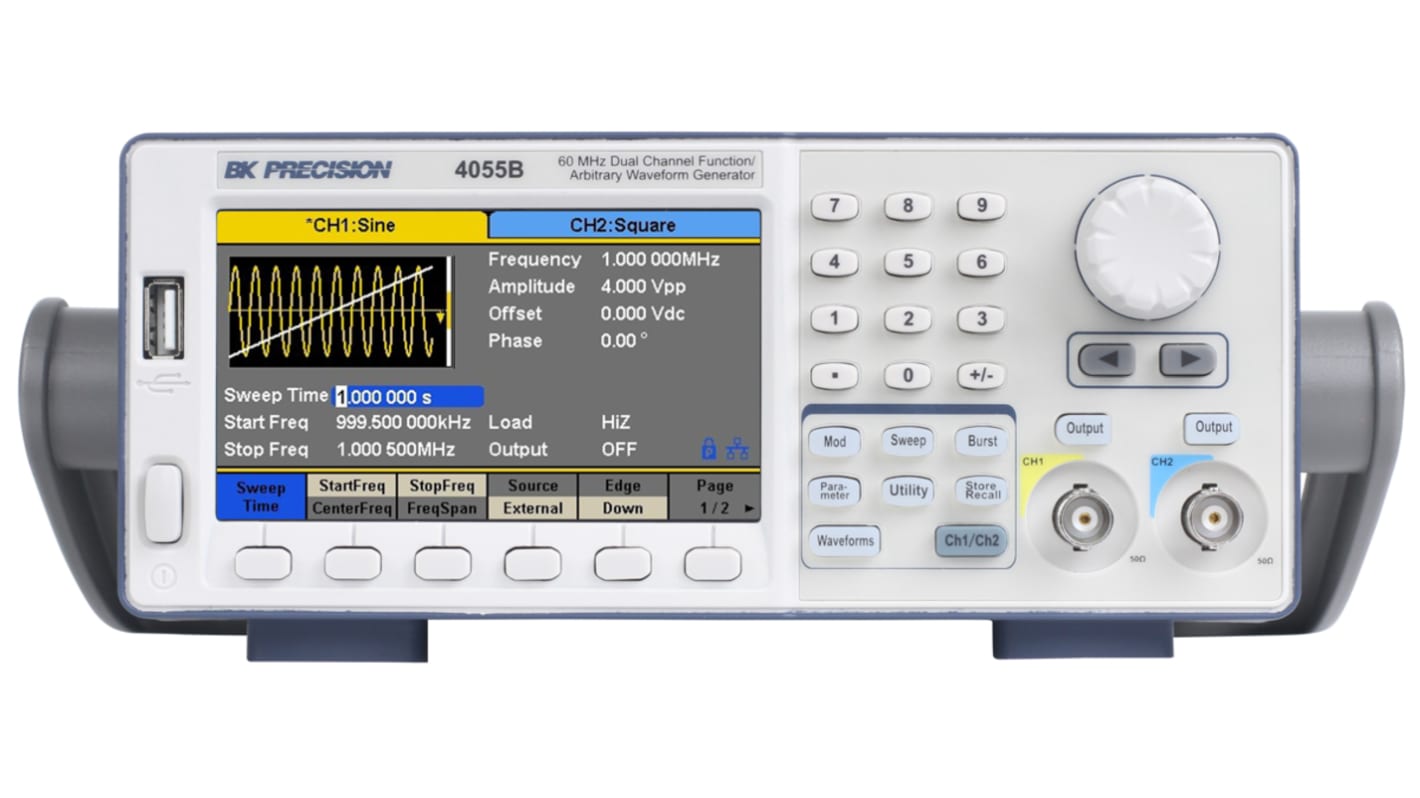

B&K Precision Series 4050 Dual Channel Function/Arbitrary Waveform Generators


B&K Precision Series 4050 dual channel function/arbitrary waveform generators generate stable and precise sine, square, triangle, pulse and arbitrary waveforms. They have easy-to-read colour displays and an intuitive user interface, with numeric keypad. Features include linear/logarithmic sweep, built-in counter, extensive modulation and triggering capabilities, a continuously variable DC offset and a high performance 14-bit, 125 MSa/s arbitrary waveform generator. The main output voltage can be varied from 0 to 10 Vpp into 50 ohms (up to 20 Vpp into open circuit) and the secondary output can be varied from 0 to 3 Vpp into 50 ohms (up to 6 Vpp into open circuit).

14-bit, 125 MSa/s, 16k point arbitrary waveform generator

Large 3.5-inch LCD colour display with waveform preview

Linear and logarithmic sweep

AM/DSB-AM/ASK/FM/FSK/PM/PWM modulation functions

Variable DC offset

Adjustable duty cycle

Two independent channels with individual output On/Off buttons

Internal/external triggering

Gate and burst mode

48 built-in predefined arbitrary waveforms

Store/recall up to 10 instrument settings and 10 arbitrary waveforms

Built-in counter

USB device port (USBTMC-compliant) with front panel USB host port

SCPI-compliant command set

Short circuit protection on outputs

Supplied with

Getting started manual, full instruction manual on CD, AC power cord, USB type A-to-type B cable, certificate of calibration
