STMicroelectronics STEVAL-CCA023V1, Demonstration Board for Low Noise Microphone Preamplifier Demonstration Board for

모든 Analogue Development Tools 열람하기
현재 비가용
죄송합니다. 언제 재입고될지 모릅니다.
RS 제품 번호:
196-1737
제조사 부품 번호:
STEVAL-CCA023V1
제조업체:
STMicroelectronics
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

STMicroelectronics

Kit Classification

Demonstration Board

For Use With

Low Noise Microphone Preamplifier

Featured Device

TS472

Kit Name

Demonstration Board for Low Noise Microphone Preamplifier

COO (Country of Origin):
IT

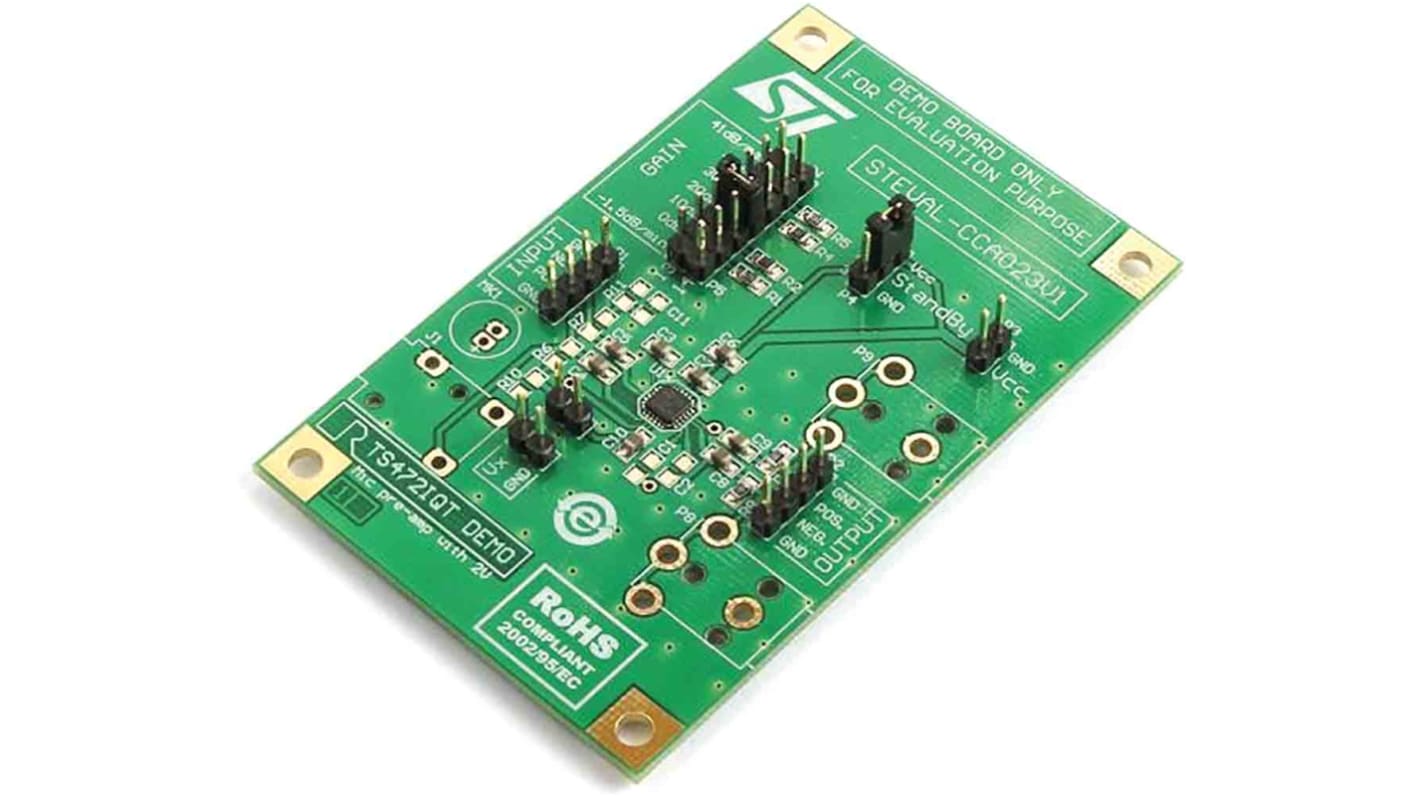

The STEVAL-CCA023V1 demonstration board is designed as an evaluation platform for the TS472 low noise microphone preamplifier with 2.0 V bias and active low standby mode. The board supports customization of the testing conditions, allowing the gain of the TS472 device to be adjusted, or an electret microphone to be biased either externally or using the TS472 builtin 2.0 V bias voltage.

Available in flip-chip package and QFN24 4x4 mm
Low noise 2.0 V microphone bias output
ESD protection (2 kV)
40 kHz bandwidth @ -3 dB and adjustable gain
Low distortion: 0.1% typ.
Low noise: 10 nV / √ Hz typ. equivalent input noise @ F=1 kHz
2.2 V to 5.5 V single supply operation
Fully differential input/output
Fast start up time @ 0dB: 5 ms typ.
Active low standby mode function (1μA max)
Low power consumption @20 dB: 1.8 mA

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
