    IR LEDs

    The IR LED (Infrared Light-Emitting Diode) is a SSL (Solid State Lighting) type of LED diode that sends out the light with a longer wavelengths than visible light. It's commonly used in conjunction with the IR receiver to support a wireless communication between 2 or more devices. The infrared light is an electromagnetic radiation with the wave length in the range between 700 nm to 1mm. IR diodes are especially useful for an electronic industry and machine to machine communication.

    Uses for IR LEDS:

    • Remote controls

    • TVs

    • Climate control systems

    • Audio equipment

    • Cameras

    • Lighting equipment

    • Night vision cameras

    Types of IR LEDs categorised by the wavelength:

    • 808 nm – suitable for medical treatments, space optical communication, infrared illumination

    • 830 nm – suitable for automated card reader systems

    • 850 nm – suitable for night vision cameras, CCTV monitoring systems, digital photography

    • 940 nm – suitable for remote controllers

    950 표시되는 제품 IR LEDs

    • RS 제품 번호 915-4907
    • 제조사 부품 번호 SFH 4542-Z
    개당가격(20개가 1팩안에)
    ₩889.24
    ams OSRAM
    950nm
    SMR
    65mW
    230mW/sr
    Surface Mount
    ±10°
    1
    2
    6mm
    Round
    -
    -
    -
    -
    • RS 제품 번호 124-9112P
    • 제조사 부품 번호 SFH 4556-AW
    개(봉지에 담겨 공급됨)
    ₩797.12
    ams OSRAM
    860nm
    5mm (T-1 3/4)
    60mW
    100 → 200mW/sr
    Through Hole
    ±20 °
    1
    2
    5.7 (Dia.) x 8.1mm
    Dome
    -
    -
    -
    -
    • RS 제품 번호 209-7966
    • 제조사 부품 번호 ILH-7MC1-95NC-SC201-WIR200.
    개당
    ₩37,838.76
    Intelligent LED Solutions
    940nm
    -
    -
    530mW/sr
    Surface Mount
    -
    -
    -
    -
    -
    ILH-xMX1-xxxx-SC201-WIR200
    -
    -
    -
    개당가격(25개가 1팩안에)
    ₩695.60
    Vishay
    940nm
    Subminiature
    55mW
    145mW/sr
    Surface Mount
    -
    -
    -
    -
    -
    VSMY2940
    -
    -
    -
    • RS 제품 번호 238-5921P
    • 제조사 부품 번호 15427294BA242
    개당(릴로 공급됨)
    ₩11,881.60
    Wurth Elektronik
    940nm
    QFN
    1000mW
    360mW/sr
    Surface Mount
    -
    -
    -
    -
    -
    -
    -
    -
    -
    • RS 제품 번호 173-6322
    • 제조사 부품 번호 OIS-170-880-X-T
    개당가격(10개가 1팩안에)
    ₩2,498.52
    OSA Opto
    880nm
    0805
    6.3 (Minimum)mW
    2.1mW/sr
    Surface Mount
    -
    1
    2
    1.9 x 1.2 x 1.2mm
    Square
    OIS-170
    AlInGaP, GaAlAs, GaP, InGaN
    -
    1.7V
    • RS 제품 번호 810-8256P
    • 제조사 부품 번호 SFH 4140
    개당(릴로 공급됨)
    ₩8,610.40
    ams OSRAM
    950nm
    Side View
    55mW
    50mW/sr
    Surface Mount
    ±25°
    1
    2
    31 x 15 x 15mm
    Round
    T-MIDLED
    -
    -
    -
    • RS 제품 번호 175-2104P
    • 제조사 부품 번호 SFH 4247-QR
    개당(릴로 공급됨)
    ₩870.44
    ams OSRAM
    950nm
    Mini TOPLED
    40mW
    75mW/sr
    Surface Mount
    ±65°
    1
    2
    2.1 x 1.5 x 1.25mm
    Rectangle
    SFH 4247
    SnAgCu
    -
    3.6V
    • RS 제품 번호 880-6916
    • 제조사 부품 번호 ILH-IW01-85SL-SC221-WIR200.
    개당
    ₩28,290.24
    Intelligent LED Solutions
    850nm
    PCB
    1270mW
    -
    -
    -
    1
    -
    -
    -
    OSLON Black PowerStar
    -
    -
    -
    • RS 제품 번호 710-4938P
    • 제조사 부품 번호 TSML1020
    개당(릴로 공급됨)
    ₩844.12
    Vishay
    950nm
    Subminiature
    35mW
    7mW/sr
    Surface Mount
    -
    1
    2
    2.5 x 2 x 2.7mm
    Dome
    -
    GaAlAs
    -
    -
    • RS 제품 번호 226-9525
    • 제조사 부품 번호 ILI-IO01-85SL-SC201.
    개당
    ₩142,274.64
    Intelligent LED Solutions
    850nm
    -
    1.05W
    -
    Through Hole
    -
    -
    -
    -
    -
    ILS OSLONeye
    -
    -
    -
    • RS 제품 번호 234-0962
    • 제조사 부품 번호 OP298B
    개당
    ₩1,109.20
    Optek
    890nm
    5mm (T-1 3/4)
    -
    -
    Through Hole
    -
    1
    2
    4.83mm
    Round
    -
    GaAlAs
    -
    -
    • RS 제품 번호 275-8946
    • 제조사 부품 번호 AERD-N1BB-00010
    개당가격(5개가 1팩안에)
    ₩1,075.36
    Broadcom
    850nm
    SMT
    58mW
    200mW/sr
    Surface Mount
    -
    -
    -
    -
    -
    AERD
    -
    -
    -
    • RS 제품 번호 275-8955
    • 제조사 부품 번호 AERD-N2CB-00010
    개당가격(5개가 1팩안에)
    ₩1,214.48
    Broadcom
    880nm
    SMT
    50mW
    130mW/sr
    Surface Mount
    -
    -
    -
    -
    -
    AERD
    -
    -
    -
    • RS 제품 번호 240-7031
    • 제조사 부품 번호 15414194A6011
    개당가격(10개가 1팩안에)
    ₩1,199.44
    Wurth Elektronik
    850nm
    Top LED
    -
    50mW/sr
    Surface Mount
    -
    -
    -
    -
    -
    -
    -
    -
    -

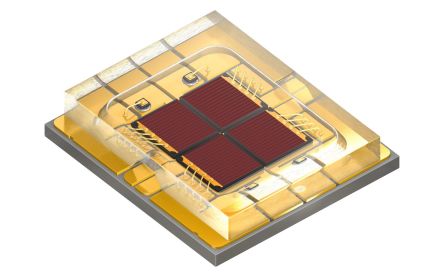

    • RS 제품 번호 494-536
    • 제조사 부품 번호 LE R S2WP-6P7Q-25-0
    1 개가 들어있는 1테이프
    ₩20,003.20
    ams OSRAM
    633nm
    SMT
    -
    -
    Surface Mount
    -
    1
    -
    6.38 x 5.75 x 1.26mm
    Rectangle
    LE R S2WP
    -
    -
    -
    • RS 제품 번호 168-5214
    • 제조사 부품 번호 SFH 4545-DWEW
    개당가격(1000개가 1봉지안에)
    ₩445.56
    ams OSRAM
    950nm
    5mm (T-1 3/4)
    55mW
    400 → 1250mW/sr
    Through Hole
    ±5 °
    1
    2
    5.7 (Dia.) x 8.3mm
    Dome
    -
    -
    -
    -
    • RS 제품 번호 209-7965
    • 제조사 부품 번호 ILH-7MC1-85NC-SC201-WIR200.
    개당
    ₩37,838.76
    Intelligent LED Solutions
    855nm
    -
    -
    530mW/sr
    Surface Mount
    -
    -
    -
    -
    -
    ILH-xMX1-xxxx-SC201-WIR200
    -
    -
    -
    • RS 제품 번호 710-4042
    • 제조사 부품 번호 VSMG2700-GS08
    개당가격(10개가 1팩안에)
    ₩1,007.68
    Vishay
    830nm
    PLCC 2
    40mW
    10mW/sr
    Surface Mount
    -
    1
    2
    3 x 2.8 x 1.75mm
    Round
    -
    GaAlAs
    -
    -
    • RS 제품 번호 216-3603P
    • 제조사 부품 번호 AREQ-8020-00000
    개당(릴로 공급됨)
    ₩1,498.36
    Broadcom
    850nm
    PLCC 4
    -
    -
    -
    -
    -
    -
    -
    -
    -
    -
    -
    -
