Standard Terminal Blocks

Our range of terminal blocks feature various voltage ratings from 24 V dc up to 1 kV. The mounting types include cable mount, panel mount, screw down and through hole. Some of these terminal blocks are direct-mount meaning they do not require a DIN Rail to mount. The range also includes fused terminal blocks which collect, organise and distribute signals with more protection then non-fused terminal blocks.

How do standard terminal blocks work?

These terminal blocks typically have several screw terminals to connect several wires on either end. They often contain two long copper or aluminium strips that are designed to connect different components. The strips act as busbars for the distribution of power that is sent to the connected components. Terminal blocks can also include fuses too.

What are standard terminal blocks used for?

Standard terminal blocks have a broad range of applications, ranging from sound equipment to electrical installations. They are often used in surge protectors, and you will also find them in several public address systems for speakers and other inputs and outputs.

Standard terminal blocks are also widely used in electrical wiring to connect switches as well as other major appliances to plugs in residential and commercial settings.

1068 표시되는 제품 Standard Terminal Blocks

9 / 54

정렬 기준

제품 비교 제품 세부 사항

페이지 당 결과 수

NEUTRAL Screw Terminal, 4-Way, 35A, Screw Down Termination RS 제품 번호 601-7896 제조사 부품 번호 ML-150-L-4 개당 ₩5,301.60 주문수량	NEUTRAL	-	4	35A	9.75mm	-	Screw Down	-	PP	380 V	-	-	-	-	-	-	-	-	-	-	-	-
JM CONCEPT Terminal Block, 8-Way, 50mA, 14 AWG Wire, Screw Terminal Termination RS 제품 번호 266-3031 제조사 부품 번호 BL09NRV 개당 ₩445,725.44 주문수량	JM CONCEPT	-	8	50mA	-	14 AWG	Screw Terminal	DIN Rail Mount	Polyamide	1.2 kV	-	-	-	-	Socket	-	-	-	-	-	-	-
WAGO 812 Series Terminal Block, 12-Way, 96A, 20 → 12 AWG Wire, Push-In Cage Clamp Termination RS 제품 번호 279-1681 제조사 부품 번호 812-104 10 박스 1개 ₩133,404.80 주문수량	WAGO	-	12	96A	-	20 → 12 AWG	Push-In Cage Clamp	-	-	-	-	-	-	812	-	-	-	-	-	-	-	-
WAGO 264 Series Terminal Block, 2-Way, 24A, 28 → 12 AWG Wire, Cage Clamp Termination RS 제품 번호 271-0255 제조사 부품 번호 264-326 100 박스 1개 ₩125,809.60 주문수량	WAGO	-	2	24A	-	28 → 12 AWG	Cage Clamp	-	-	-	-	-	-	264	-	-	-	-	-	-	-	-
Phoenix Contact UTME Series UTME 4-P/P Disconnect Terminal Block, 2-Way, 28A, 10-26 AWG Wire, Screw Termination RS 제품 번호 216-3829 제조사 부품 번호 3047453 개당가격(50개가 1팩안에) ₩8,580.32 주문수량	Phoenix Contact	-	2	28A	-	10-26 AWG	Screw	DIN Rail Mount	Polyamide	500 V	-	-	-	UTME	-	-	-	-	-	-	-	-
Sato Parts Non-Fused Terminal Block, 1-Way, 10A, 24 → 14 AWG, 26 → 14 AWG Wire, Spring Cage Termination RS 제품 번호 142-369 제조사 부품 번호 ML-7000-B 개당 ₩2,124.40 주문수량	Sato Parts	-	1	10A	9.2mm	24 → 14 AWG, 26 → 14 AWG	Spring Cage	Direct Wire	Nylon	300 V	-	-	-	-	-	-	-	-	-	-	-	-
Phoenix Contact PTMC Series PTMC 1,5-2 /BN Pluggable Terminal Block, 17.5A, 14 → 26 AWG Wire, Push In Termination RS 제품 번호 201-5832 제조사 부품 번호 3270433 개당가격(10개가 1팩안에) ₩4,816.56 주문수량	Phoenix Contact	-	-	17.5A	-	14 → 26 AWG	Push In	-	-	500 V	-	Grey	-	PTMC	-	-	-	-	-	-	-	-

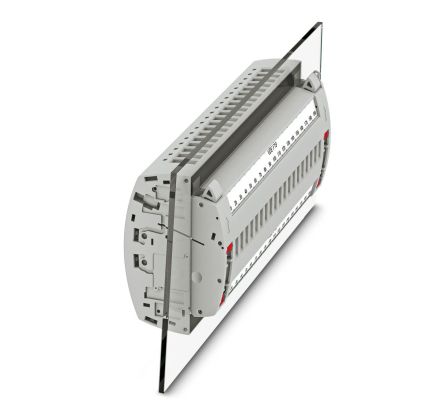

Phoenix Contact UTRE Series UTRE 6-2/19 Terminal Strip, 38-Way, 30A, 24 → 8 AWG Wire, Screw Termination RS 제품 번호 207-3063 제조사 부품 번호 3069820 개당 ₩977,900.80 주문수량	Phoenix Contact	-	38	30A	8.2mm	24 → 8 AWG	Screw	5, NS 35/7	Polyamide	400 V	-	-	-	UTRE	Female	-	-	-	-	-	-	-
WAGO 862 Series Terminal Strip, 3-Way, 32A, 20 → 12 AWG Wire, Push-In Cage Clamp Termination RS 제품 번호 279-2735 제조사 부품 번호 862-8693 250 백 1개 ₩881,250.00 주문수량	WAGO	-	3	32A	-	20 → 12 AWG	Push-In Cage Clamp	-	-	-	-	-	-	862	-	-	-	-	-	-	-	-
Wurth Elektronik Terminal Block, 3-Way, 17.5A, 22 → 14 Wire RS 제품 번호 261-3227 제조사 부품 번호 691102810003 개당가격(360개가 1박스안에) ₩2,376.32 주문수량	Wurth Elektronik	-	3	17.5A	-	22 → 14	-	Through Hole	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Phoenix Contact PT Series PT 4-PE/3L Terminal Block RS 제품 번호 209-1739 제조사 부품 번호 3210442 개당가격(50개가 1팩안에) ₩18,850.76 주문수량	Phoenix Contact	-	-	-	-	-	-	-	-	-	-	-	-	PT	-	-	-	-	-	-	-	-
Phoenix Contact HEAVYCON Series HC-D40-PTT-F Terminal Block Connector, 40-Way, 10A, 20 → 16 AWG Wire, Push In RS 제품 번호 217-6345 제조사 부품 번호 1423347 개당 ₩160,834.00 주문수량	Phoenix Contact	-	40	10A	-	20 → 16 AWG	Push In	Panel Mount	Polyamide	250 V	-	-	-	HEAVYCON	-	-	-	-	-	-	-	-
Siemens Fused Terminal Block, 6.3A, Spring Termination RS 제품 번호 203-8773 제조사 부품 번호 8WH2000-1GG08 개당가격(50개가 1팩안에) ₩10,052.36 주문수량	Siemens	-	-	6.3A	-	-	Spring	-	-	250 V	6mm²	-	-	-	-	-	-	-	-	-	-	-
Phoenix Contact UTWE Series UTWE 6/3+1 Non-Fused Terminal Block, 8-Way, 30A, 24 → 8 AWG Wire, Screw Termination RS 제품 번호 201-5062 제조사 부품 번호 3069047 개당가격(5개가 1팩안에) ₩204,329.68 주문수량	Phoenix Contact	Wire Protection	8	30A	8.2mm	24 → 8 AWG	Screw	Wall Mount	Polyamide	400 V	-	-	-	UTWE	Female	-	-	-	-	-	-	-
WAGO 2273 COMPACT PUSH WIRE Series Junction Box Connector, 4-Way, 24A, 20 → 16 AWG Wire, Push-In Termination RS 제품 번호 864-8322 제조사 부품 번호 2273-204 개당가격(10개가 1팩안에) ₩772.68 주문수량	WAGO	Enclosed	4	24A	-	20 → 16 AWG	Push-In	Cable Mount	-	450 V	2.5mm²	Clear, Red	-	2273 COMPACT PUSH WIRE	Female	+105°C	-	-	-	-	-	-
Phoenix Contact PTMC Series PTMC 1,5/80-2 Pluggable Terminal Block, 17.5A, 14 → 26 AWG Wire, Push In Termination RS 제품 번호 204-7724 제조사 부품 번호 3270329 개당가격(6개가 1팩안에) ₩348,495.60 주문수량	Phoenix Contact	-	-	17.5A	-	14 → 26 AWG	Push In	-	-	500 V	-	Grey	-	PTMC	-	-	-	-	-	-	-	-
Phoenix Contact PTI Series PTI 2,5-L/L Non-Fused Terminal Block, 4-Way, 24A, 26 → 12 AWG Wire, Push In RS 제품 번호 216-6393 제조사 부품 번호 3213953 개당가격(50개가 1팩안에) ₩6,568.72 주문수량	Phoenix Contact	-	4	24A	-	26 → 12 AWG	Push In	-	-	400 V	-	-	-	PTI	-	-	-	-	-	-	-	-
Phoenix Contact PTI Series PTI 2,5-L/TG Terminal Block, 4-Way, 24A, 26 → 12 AWG Wire, Push In Termination RS 제품 번호 225-2899 제조사 부품 번호 3213961 개당가격(50개가 1팩안에) ₩9,475.20 주문수량	Phoenix Contact	-	4	24A	-	26 → 12 AWG	Push In	5, NS 35/7, NS 35/15	Polyamide	400 V	0.2 → 4mm²	Grey	-60°C	PTI	-	+110°C	-	-	-	-	-	-
WAGO 2273 COMPACT PUSH WIRE Series Junction Box Connector, 5-Way, 24A, 20 → 16 AWG Wire, Push-In Termination RS 제품 번호 864-8335 제조사 부품 번호 2273-205 개당가격(10개가 1팩안에) ₩789.60 주문수량	WAGO	Enclosed	5	24A	-	20 → 16 AWG	Push-In	Cable Mount	-	450 V	2.5mm²	Yellow	-	2273 COMPACT PUSH WIRE	Female	+105°C	-	-	-	-	-	-
Phoenix Contact FAME 3 Series RSCWE 6-3/4 Non-Fused Terminal Block, 8-Way, 30A, 24 → 8 AWG Wire RS 제품 번호 201-5849 제조사 부품 번호 3969920 개당 ₩308,733.60 주문수량	Phoenix Contact	Wire Protection	8	30A	8.2mm	24 → 8 AWG	-	Wall Mount	Polyamide	400 V	-	-	-	FAME 3	Female	-	-	-	-	-	-	-
