    Pluggable I/O Connectors

    Pluggable I/O connectors that form part of a high-speed modular interconnection system. These pluggable connectors feature high-speed I/O interfaces that support higher data rates than those of traditional copper interfaces such as RJ45. This high data rate makes these pluggable I/O connectors suitable for use in the increasing number of applications that demand a high bandwidth.

    These pluggable connectors provide a standard I/O interface in the equipment they are used in. This feature enables design flexibility by allowing the user to choose between transceiver modules and direct attach cable assemblies depending on the application.

    A range of standards are supported including;

    Fibre Channel, Ethernet, InfiniBand and SAS.

    Types Of I/O Interface are:

    • SFP (Small Form-factor Pluggable): supports data rates of up to 4 Gbit/s.
    • SFP+ (Small Form-factor Pluggable Plus): Supports data rates of up to 16 Gbit/s.
    • CFP (C Form-factor pluggable): Supports data rates of up to 100 Gbit/s with 10 Gbit/s per channel.
    • XFP (10 Gbit Small Form-factor Pluggable): Supports data rates of up to 10 Gbit/s.
    • QSFP (Quad Small Form-factor Pluggable): Supports data rates of up to 40 Gbit/s with 10 Gbit/s per channel.
    • zQSFP+ (z-Quad Small Form-factor Pluggable Plus): Supports data rates of more than 100 Gbit/s with 28 Gbit/s per channel

    Applications

    These pluggable I/O connectors are suitable for use in applications that require a high-speed data transmissions rate.

    • Access routers and switches
    • High-end servers
    • Network hubs
    • Medical diagnostic equipment
    • cellular infrastructure.

    What are pluggable IO connectors used for?

    Pluggable IO connectors are designed to accelerate data transmission between separate devices. These connectors are efficient with high speed, density and flexibility.

    258 표시되는 제품 Pluggable I/O Connectors

    4 개가 들어있는 1트레이
    ₩263,004.48
    TE Connectivity
    zSFP+
    Cage Assembly With Integrated Connector
    Receptacle
    Straight
    4
    20
    -
    -
    -
    -
    -
    -
    -
    • RS 제품 번호 262-0020
    • 제조사 부품 번호 UE36C1620005011
    개당가격(24개가 1트레이안에)
    ₩20,431.84
    Amphenol Communications Solutions
    QSFP-DD
    I/O Connector
    Plug
    -
    1
    76
    Copper Alloy
    -
    500mA
    -
    -
    -
    -
    • RS 제품 번호 262-0034
    • 제조사 부품 번호 UE36C1620005C3A
    개당
    ₩28,991.48
    Amphenol Communications Solutions
    QSFP-DD
    I/O Connector
    Plug
    -
    1
    76
    Copper Alloy
    -
    500mA
    -
    -
    -
    -
    • RS 제품 번호 178-9400
    • 제조사 부품 번호 76044-5001
    개당
    ₩42,506.80
    Molex
    SFP+
    Connector
    Male
    -
    2
    40
    Tin Brass
    Gold over Nickel
    500mA
    120 V
    Glass Filled Liquid Crystal Polymer
    Solder
    76044
    • RS 제품 번호 273-8391
    • 제조사 부품 번호 2386331-1
    개당가격(15개가 1트레이안에)
    ₩40,322.24
    TE Connectivity
    QSFP
    Cage Assembly
    -
    180°, Straight
    2
    2
    -
    Nickel
    -
    -
    Stainless Steel
    Press Fit, Through Hole
    -
    • RS 제품 번호 262-0019P
    • 제조사 부품 번호 UE36A10752000T
    개당(릴로 공급됨)
    ₩25,981.60
    Amphenol Communications Solutions
    -
    -
    -
    -
    -
    -
    -
    -
    -
    -
    -
    -
    -
    • RS 제품 번호 262-0053
    • 제조사 부품 번호 UE36C1660005A4A
    개당
    ₩28,991.48
    Amphenol Communications Solutions
    QSFP-DD
    I/O Connector
    Plug
    -
    1
    76
    Copper Alloy
    -
    500mA
    -
    -
    -
    -

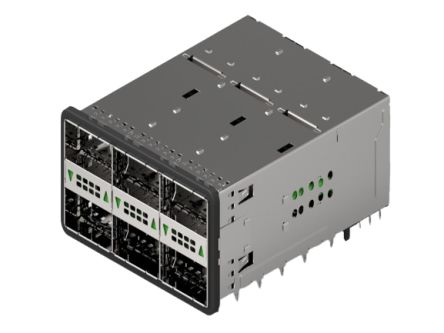

    • RS 제품 번호 469-075
    • 제조사 부품 번호 2214565-3
    2 개가 들어있는 1트레이
    ₩320,269.28
    TE Connectivity
    zQSFP+
    Cage Assembly
    -
    Straight
    6
    190
    Gold
    -
    -
    -
    -
    -
    -
    • RS 제품 번호 262-0037
    • 제조사 부품 번호 UE36C1621105A3A
    개당가격(24개가 1트레이안에)
    ₩26,917.84
    Amphenol Communications Solutions
    QSFP-DD
    I/O Connector
    Plug
    -
    1
    76
    Copper Alloy
    -
    500mA
    -
    -
    -
    -
    • RS 제품 번호 274-9698
    • 제조사 부품 번호 4-2170705-6
    개당가격(18개가 1트레이안에)
    ₩45,229.04
    TE Connectivity
    QSFP
    Cage Assembly
    -
    -
    1
    -
    -
    Tin
    -
    -
    Nickel
    Press Fit, Through Hole
    4-2170705
    • RS 제품 번호 197-3400
    • 제조사 부품 번호 2342935-3
    개당가격(10개가 1트레이안에)
    ₩29,198.28
    TE Connectivity
    QSFP
    Connector, Cage & Heatsink
    -
    -
    2
    1
    -
    -
    -
    -
    Stainless Steel
    Press-Fit
    QSFP-DD
    • RS 제품 번호 224-0653
    • 제조사 부품 번호 2359845-2
    개당
    ₩18,724.80
    TE Connectivity
    -
    Cage Assembly
    -
    Right Angle
    1
    15
    Copper Alloy
    -
    -
    -
    -
    -
    SFP56
    • RS 제품 번호 262-0067
    • 제조사 부품 번호 UE36C2621106A3A
    개당
    ₩46,881.56
    Amphenol Communications Solutions
    QSFP-DD
    I/O Connector
    Plug
    -
    1
    76
    Copper Alloy
    -
    500mA
    -
    -
    -
    -
    • RS 제품 번호 262-0063
    • 제조사 부품 번호 UE36C2620005C32
    개당
    ₩45,138.80
    Amphenol Communications Solutions
    QSFP-DD
    I/O Connector
    Plug
    -
    1
    76
    Copper Alloy
    -
    500mA
    -
    -
    -
    -
    • RS 제품 번호 178-9370
    • 제조사 부품 번호 75462-5001
    개당가격(54개가 1박스안에)
    ₩24,018.88
    Molex
    SFP
    Connector
    Male
    -
    2
    40
    Tin Brass
    Gold over Nickel
    500mA
    120 V
    Glass Filled Liquid Crystal Polymer
    Solder
    75462

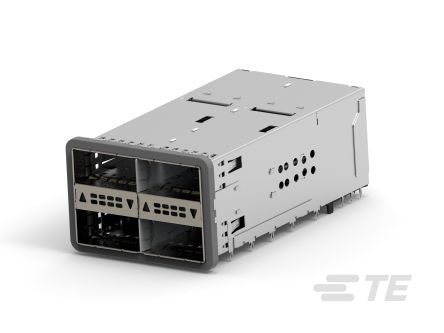

    • RS 제품 번호 469-041
    • 제조사 부품 번호 2227225-2
    3 개가 들어있는 1트레이
    ₩356,840.92
    TE Connectivity
    zQSFP+
    Cage Assembly
    -
    Straight
    4
    152
    Gold
    -
    -
    -
    -
    -
    -
    • RS 제품 번호 224-0663
    • 제조사 부품 번호 2366031-1
    개당
    ₩23,575.20
    TE Connectivity
    -
    Cage Assembly
    -
    Right Angle
    1
    -
    Copper Alloy
    -
    -
    -
    -
    -
    SFP56
    • RS 제품 번호 192-0260
    • 제조사 부품 번호 2170088-1
    개당가격(5개가 1팩안에)
    ₩5,670.08
    TE Connectivity
    zSFP+
    Connector
    Male
    -
    -
    20
    Copper Alloy
    Gold, Gold over Nickel
    500mA
    -
    Thermoplastic
    Solder
    zSFP+
    • RS 제품 번호 273-8393
    • 제조사 부품 번호 2386733-1
    개당가격(6개가 1트레이안에)
    ₩108,312.44
    TE Connectivity
    QSFP
    Cage Assembly
    -
    180°, Straight
    5
    5
    -
    Nickel
    -
    -
    Stainless Steel
    Press Fit, Through Hole
    -
    • RS 제품 번호 172-0618
    • 제조사 부품 번호 2287075-2
    개당가격(12개가 1박스안에)
    ₩180,154.76
    TE Connectivity
    CFP2
    Connector, Cage & Heatsink
    Female
    Right Angle
    2
    11
    -
    -
    -
    120 V
    -
    Press-In
    CFP2
