STMicroelectronics ST1PS01EJR, 5-Channel Boost, Buck, Switching Regulator, 400 mA, 3.3 V 2 MHz, Flip-Chip 8-Pin
- RS 제품 번호:
- 192-4839
- 제조사 부품 번호:
- ST1PS01EJR
- 제조업체:
- STMicroelectronics

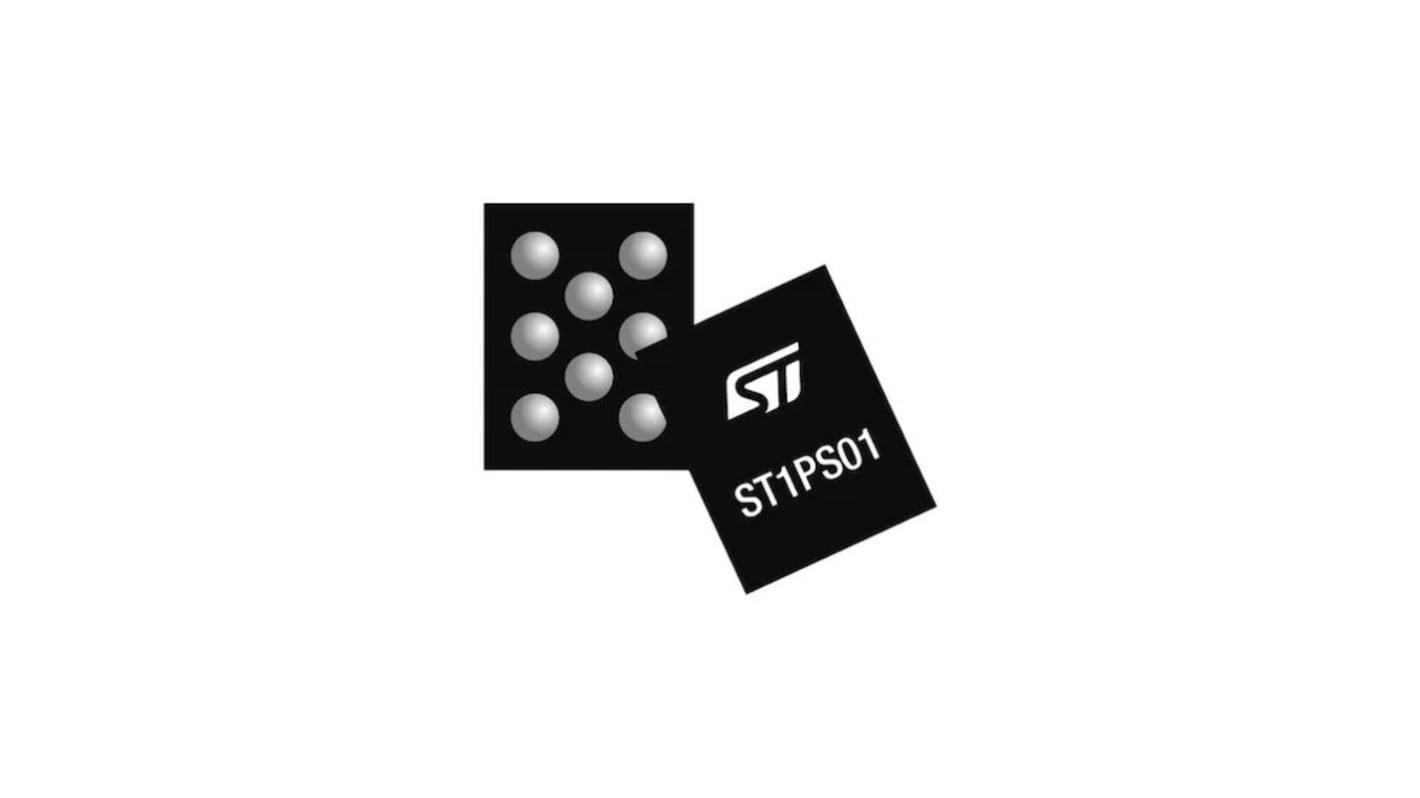

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 pack of 5 units)*
₩14,664.00
마지막 RS 재고
- 최종적인 425 개 unit(s)이 배송 준비 됨
수량 | 한팩당 | 한팩당* |
|---|---|---|
| 5 - 1245 | ₩2,932.80 | ₩14,664.00 |
| 1250 - 2495 | ₩2,858.70 | ₩14,293.50 |
| 2500 + | ₩2,819.70 | ₩14,098.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 192-4839
- 제조사 부품 번호:
- ST1PS01EJR
- 제조업체:
- STMicroelectronics
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | STMicroelectronics | |
| Regulator Type | Boost, Buck | |
| Product Type | Switching Regulator | |
| Switching Frequency | 2MHz | |
| Mount Type | Surface | |
| Quiescent Current | 500nA | |
| Package Type | Flip-Chip | |
| Output Current | 400mA | |
| Pin Count | 8 | |
| Output Type | Fixed | |
| Switching Regulator | Yes | |
| Standards/Approvals | RoHS | |
| Length | 1.44mm | |
| Height | 0.37mm | |
| Series | ST1PS01 | |
| Maximum Operating Temperature | 85°C | |
| Minimum Operating Temperature | -40°C | |
| Maximum Input Voltage | 5.5V | |
| Minimum Input Voltage | 1.8V | |
| Automotive Standard | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 STMicroelectronics | ||
Regulator Type Boost, Buck | ||
Product Type Switching Regulator | ||
Switching Frequency 2MHz | ||
Mount Type Surface | ||
Quiescent Current 500nA | ||
Package Type Flip-Chip | ||
Output Current 400mA | ||
Pin Count 8 | ||
Output Type Fixed | ||
Switching Regulator Yes | ||
Standards/Approvals RoHS | ||
Length 1.44mm | ||
Height 0.37mm | ||
Series ST1PS01 | ||
Maximum Operating Temperature 85°C | ||
Minimum Operating Temperature -40°C | ||
Maximum Input Voltage 5.5V | ||
Minimum Input Voltage 1.8V | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
500 nA input quiescent current at VIN=3.6 V (not switching)
94% typical efficiency at 1 mA load (VIN=3.6 V, VOUT=3.3 V)
100% duty cycle
1.8 V to 5.5 V input operating range
Undervoltage lockout: 1.57 V (VIN falling, typ.)
Up to 400 mA output current capability
Low power control operation for the best efficiency
Embedded soft-start circuit
Tiny external components: L=2.2 μH typ.
Selectable output voltages: 1.8 V to 3.3 V
Output voltage Power Good
±1.5% output voltage accuracy (VOUT, TA=25 °C)
Dynamic voltage selection (D0, D1)
Available in Flip-Chip package
