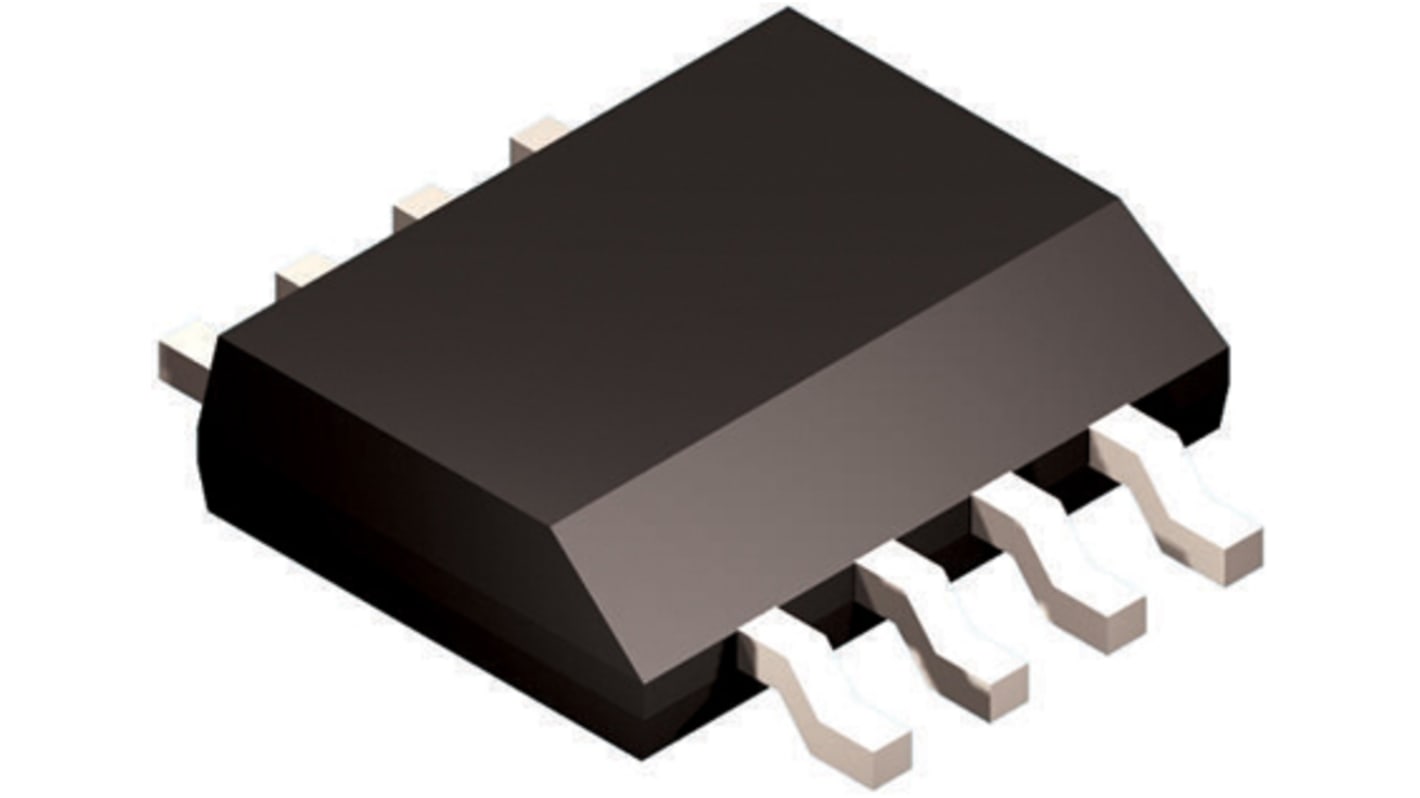

Texas Instruments, 1-Channel DC-DC, Regulator, 1.5 A, 1.32V, 1.39 V 120 Hz, PSOP 8-Pin

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
RS 제품 번호:
162-6327
제조사 부품 번호:
LP2998MR/NOPB
제조업체:
Texas Instruments
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Texas Instruments

Product Type

Regulator

Regulator Type

DC-DC

Output Voltage

1.32V, 1.39V

Number of Outputs

1

Switching Frequency

120Hz

Mount Type

Surface

Package Type

PSOP

Quiescent Current

500μA

Pin Count

8

Output Current

1.5A

Output Type

Adjustable

Switching Regulator

Yes

Height

1.47mm

Series

LP2998

Width

3.9mm

Standards/Approvals

No

Length

4.9mm

Maximum Input Voltage

5.5V

Minimum Input Voltage

2.2V

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

125°C

Automotive Standard

No

DDR Memory Termination Regulators, Texas Instruments


Designed specifically for bus termination in DDR and QDR memory applications. These sink/source tracking termination regulators are aimed for space saving, low-cost applications with low external part counts.

DDR Memory Power Solutions, Texas Instruments
