Infineon ICE2QR0665ZXKLA1 AC-DC, PWM Controller 65 kHz 7-Pin, PDIP
- RS 제품 번호:
- 168-5874
- 제조사 부품 번호:
- ICE2QR0665ZXKLA1
- 제조업체:
- Infineon

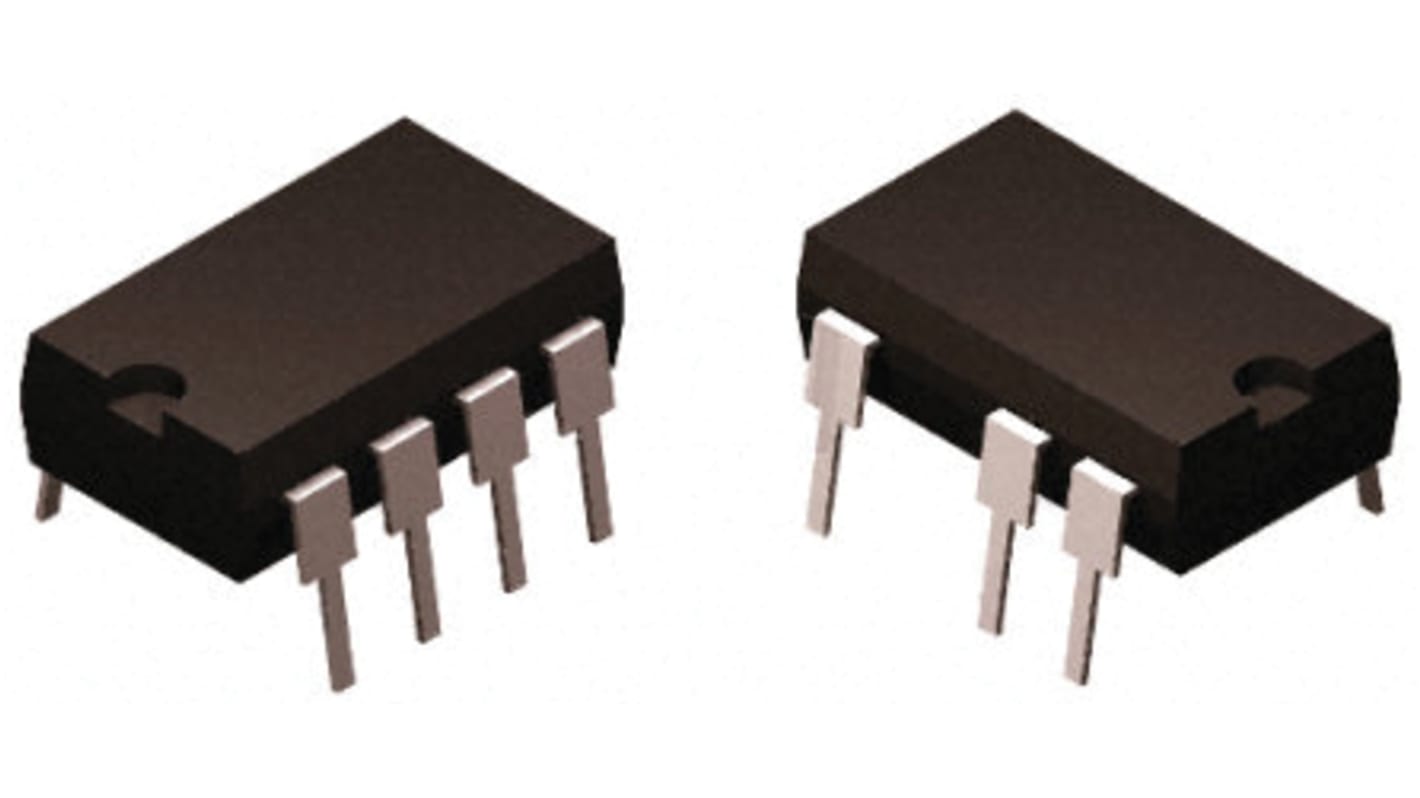

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
사용할 수 없음
RS는 더 이상 이 제품을 입고하지 않습니다.
- RS 제품 번호:
- 168-5874
- 제조사 부품 번호:
- ICE2QR0665ZXKLA1
- 제조업체:
- Infineon
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Infineon | |
| Controller Type | PWM Controller | |
| Number of Outputs | 1 | |
| Current Conversion Type | AC-DC | |
| Maximum Switching Frequency | 65 kHz | |
| Mounting Type | Through Hole | |
| Package Type | PDIP | |
| Pin Count | 7 | |
| Dimensions | 9.77 x 6.6 x 4.57mm | |
| Maximum Input Voltage | 27 V | |
| Maximum Operating Temperature | +150 °C | |
| Minimum Operating Temperature | -40 °C | |
| Minimum Input Voltage | -0.3 V | |
| 모두 선택 | ||
|---|---|---|
브랜드 Infineon | ||
Controller Type PWM Controller | ||
Number of Outputs 1 | ||
Current Conversion Type AC-DC | ||
Maximum Switching Frequency 65 kHz | ||
Mounting Type Through Hole | ||
Package Type PDIP | ||
Pin Count 7 | ||
Dimensions 9.77 x 6.6 x 4.57mm | ||
Maximum Input Voltage 27 V | ||
Maximum Operating Temperature +150 °C | ||
Minimum Operating Temperature -40 °C | ||
Minimum Input Voltage -0.3 V | ||
- COO (Country of Origin):
- MY
AC-DC Integrated Power Stage - CoolSET™, Infineon
The Infineon Off-line SMPS Current mode controller comes complete with integrated 650V CoolMOS and start up cell (frequency jitter mode). The PMIC BiCMOS technology has a 26V VCC range that covers the changes in the auxiliary supply when the CV/CC regulation is applied to the secondary side. It also has an active burst mode that offers low standby power as well as auto restart mode features to protect from VCC over-voltage/under-voltage, output open loop and over-temperature The ICE3B1565J has a fixed frequency current mode flyback PWM controller and can be used in a variety of applications from Smart meters, DVD players, set top boxes, game consoles along with LED TV’s.
Low standby power <100mW)
Modulated gate drive
Low EMI noise
Modulated gate drive
Low EMI noise
AC-DC Power Conversion, Infineon
