StarTech.com 2 Port 1 Input 2 Output HDMI Splitter 1920 x 1200 pixel

RS 제품 번호:: 186-1970
Distrelec 제품 번호:: 302-31-640
제조사 부품 번호:: ST122HDMI2
제조업체:: StarTech.com

StarTech.com 2 Port 1 Input 2 Output HDMI Splitter 1920 x 1200 pixel

Subtotal (1 unit)*

₩260,092.00

3 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩260,092.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 186-1970
Distrelec 제품 번호:: 302-31-640
제조사 부품 번호:: ST122HDMI2
제조업체:: StarTech.com

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	StarTech.com
	Product Type	Video Splitter
	Device Type	Splitter
	Video Connection Type	HDMI
	Number of Ports	2
	Number of Video Inputs	1
	Number of Video Outputs	2
	Maximum Resolution	1920 x 1200 pixel
	Audio Connection Type	HDMI
	Standards/Approvals	CE/FCC
	Weight	380g
	Height	20mm
	Width	80mm
	Depth	80mm

	모두 선택
	브랜드 StarTech.com
	Product Type Video Splitter
	Device Type Splitter
	Video Connection Type HDMI
	Number of Ports 2
	Number of Video Inputs 1
	Number of Video Outputs 2
	Maximum Resolution 1920 x 1200 pixel
	Audio Connection Type HDMI
	Standards/Approvals CE/FCC
	Weight 380g
	Height 20mm
	Width 80mm
	Depth 80mm

Datasheet ST122HDMI2

COO (Country of Origin):: TW

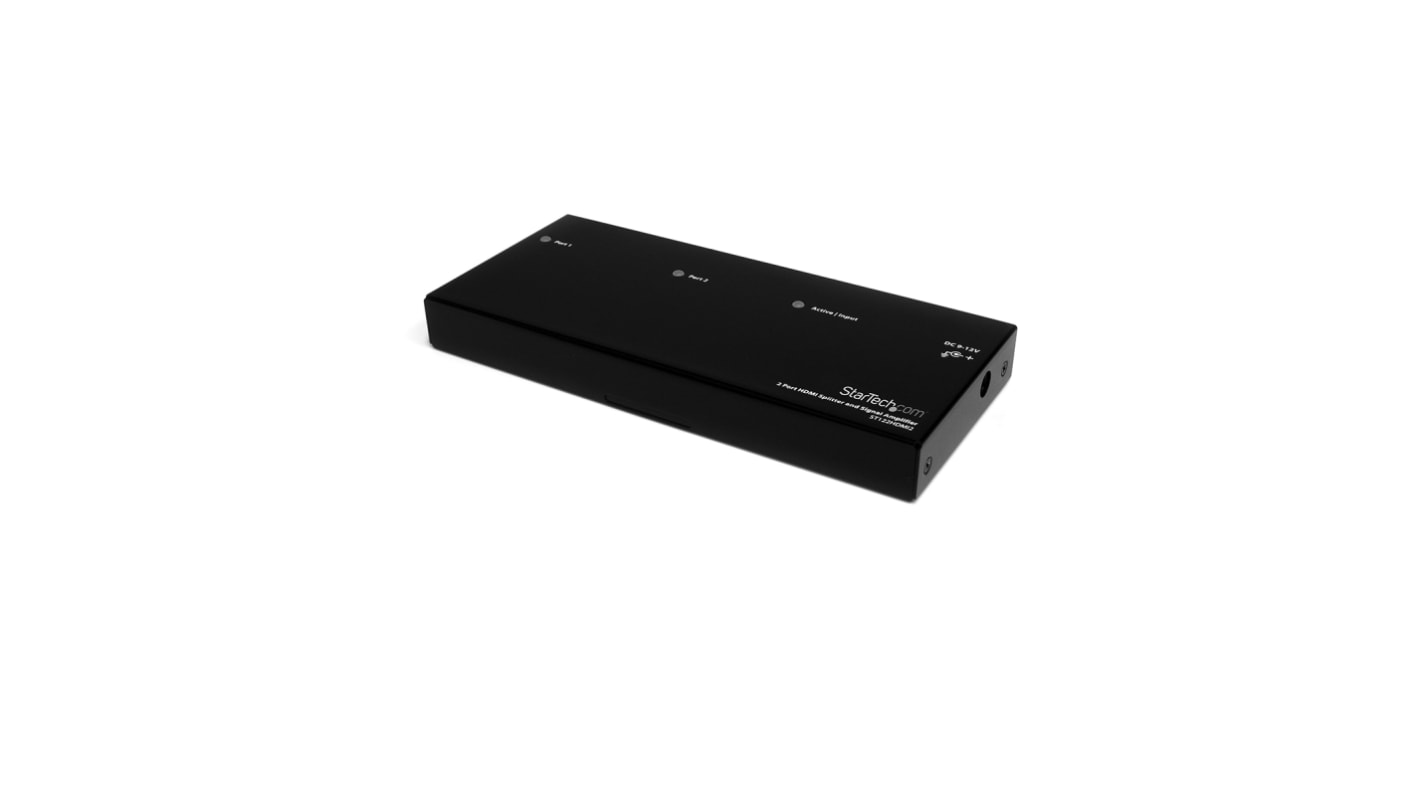

StarTech Video Splitter, 2 Ports, 1920x1200 Maximum Resolution - ST122HDMI2

This video splitter distributes a single HDMI source to two displays, enabling concurrent video and audio output from one input to two outputs. It operates with HDMI connections and supports resolutions up to 1920x1200, making it suitable for straightforward signal duplication in professional and consumer AV setups.

Features and Benefits:

• Splits one input to two outputs for mirrored display output
• Supports HDMI audio and video to maintain sound channels
• Handles 1920x1200 resolution for high-definition presentations
• Complies with CE and FCC approvals for regulatory adherence
• Compact 80mm footprint for space-efficient installation
• Low-profile 20mm height for discreet placement

Applications

• Used for digital signage with identical content on two screens
• Suitable for meeting rooms requiring simultaneous displays
• Ideal for point-of-sale systems showing mirrored visuals
• Can be used for training rooms needing dual monitors
• Used with demo stations to present the same feed twice

How many input and output connections does it provide?

It accepts one HDMI input and provides two HDMI outputs.

What video and audio connection types are used?

Both video and audio are transmitted via HDMI connections.

What is the device weight for portability considerations?

The unit weighs 380 g which facilitates easy relocation.

Which standards approvals does the unit hold?

It carries CE and FCC approvals.

What are the physical width and depth measurements?

The device measures 80 mm wide and 80 mm deep.
