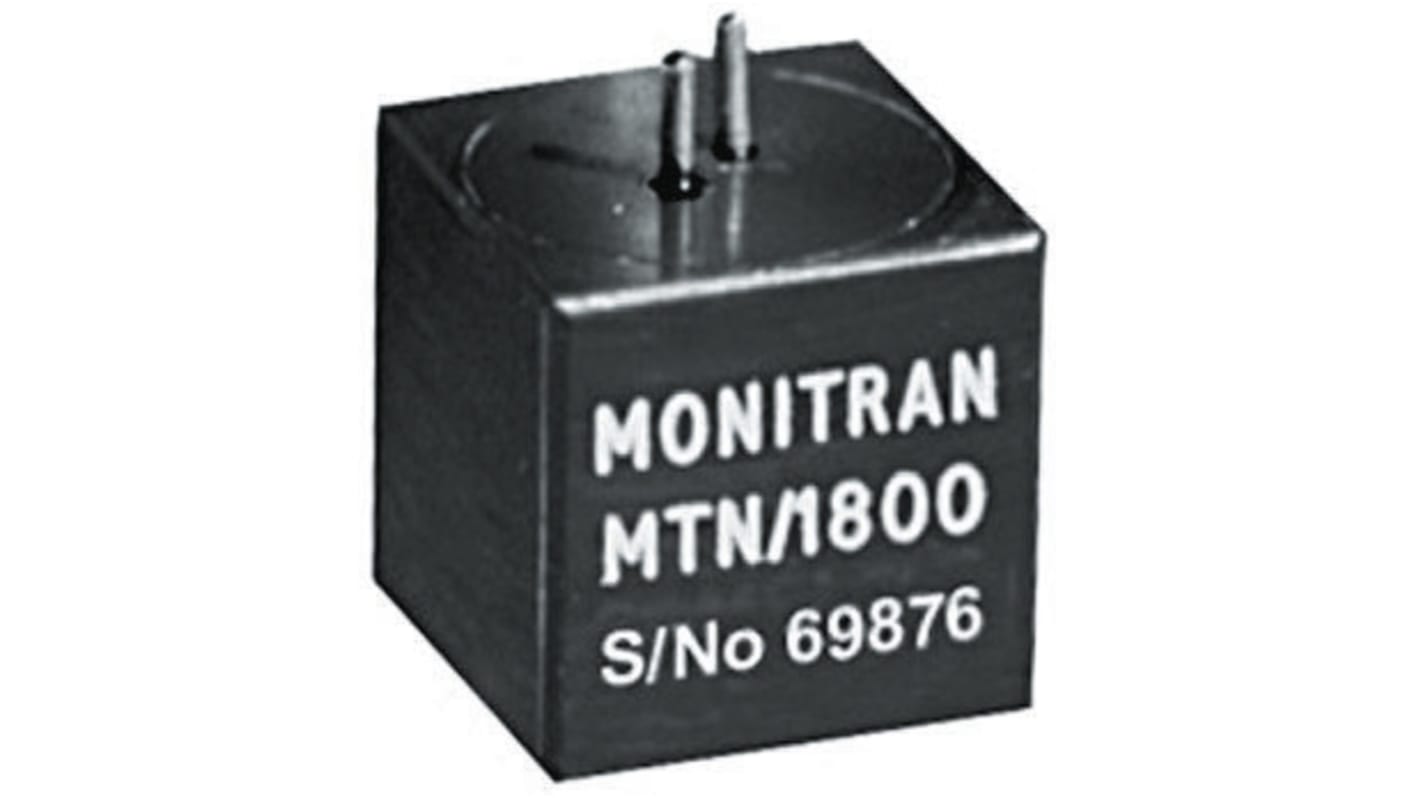

Monitran Vibration Sensor 5000 g, 8 mA Max, 30 V dc Max, -55 °C → 120 °C
- RS 제품 번호:
- 533-2403
- 제조사 부품 번호:
- MTN/1800
- 제조업체:
- Monitran
Subtotal (1 unit)*
₩1,163,480.00
재고있음
- 2 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩1,163,480.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 533-2403
- 제조사 부품 번호:
- MTN/1800
- 제조업체:
- Monitran
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Monitran | |
| Product Type | Vibration Sensor | |
| Maximum Current | 8mA | |
| Maximum DC Voltage | 30V dc | |
| Length | 14mm | |
| Minimum Operating Temperature | -55°C | |
| Maximum Shock/Vibration | 5000 g | |
| Maximum Operating Temperature | 120°C | |
| Standards/Approvals | No | |
| Series | MTN 1800 | |
| Hazardous Area Certification | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 Monitran | ||
Product Type Vibration Sensor | ||
Maximum Current 8mA | ||
Maximum DC Voltage 30V dc | ||
Length 14mm | ||
Minimum Operating Temperature -55°C | ||
Maximum Shock/Vibration 5000 g | ||
Maximum Operating Temperature 120°C | ||
Standards/Approvals No | ||
Series MTN 1800 | ||
Hazardous Area Certification No | ||
제외
- COO (Country of Origin):
- GB
MTN/1800 Model Analysis
R&D, PCB testing, Model analysis
1000mV/g +/-5%
Frequency from 5Hz to 12 KHz
+/-10 G Dynamic acceleration range
Bias voltage nominal 12Vdc
Connection via BNC plug
IP65 sealing
Mounting via bond with beeswax or adhesive
Dimensions (L x W x H): 14x14x14mm
Accelerometers
Vibration sensors use solid-state piezoelectric accelerometers to detect the level of vibration in rotating elements like bearings and gearboxes on machinery such as motors, generators, pumps, fans and compressors. Regular vibration measurements on all critical machines as part of the maintenance regime can detect early signs of failure and provide a way to eliminate these problems. Bearing wear, poor balance and loose mounting all lead to the failure of rotating machinery. Unexpected machinery failure leads to unplanned maintenance costs, loss of production plus potential Health and Safety hazards. They are rugged, adaptable to all types of machinery and conditions including operation in hazardous areas, easy to install and require no maintenance. Used in conjunction with off- and on-line vibration analysers they yield valuable diagnostic information on the machinery's condition and reveal where and when failure may occur allowing pre-emptive maintenance intervention. The dc (velocity) outputs integrate this complex signal into a simple dc signal of 4-20mA proportional to the overall vibration of the machine, ideal for monitoring with all types of industrial controllers.
Approvals
EEx ia lic BAS02ATEX1057/3
